Tractor · 2007Unverified

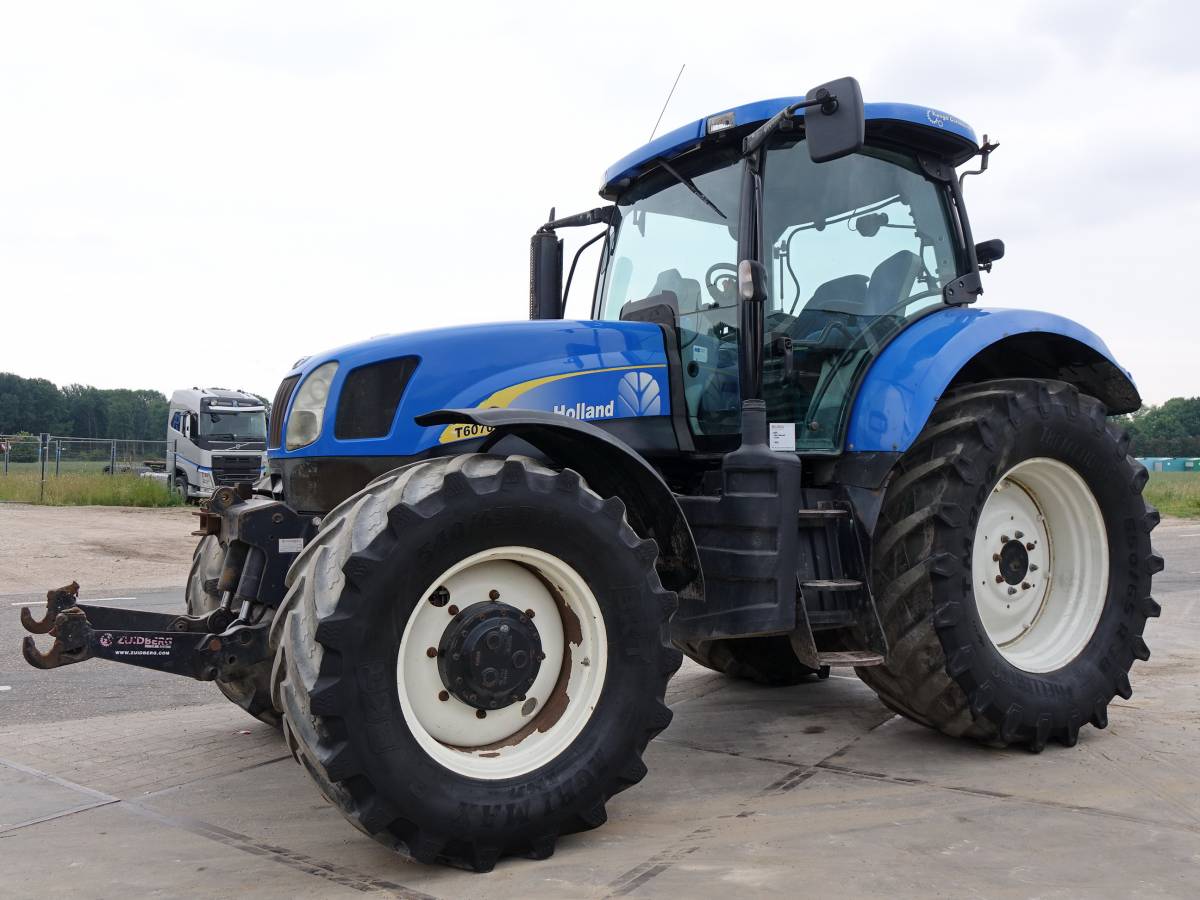

New Holland T6070 Plus

Name: New Holland T6070 Plus
Brand: New Holland

New Holland T6070 Plus — T6000 Series · 140 hp. Reference specifications; pending source verification.

The New Holland T6070 Plus is a tractor with a rating of 140 hp, positioning it among the higher-powered machines in its class. Manufactured from 2007 to 2012, this model is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, which powers a four-wheel drive system via a hydrostatic transmission. The listed weight of the tractor is 5142 kg, and it is designed for use in areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

140 hp

Max power

95.9 kW

Weight

5142 kg

Catalogue coverage

Variants represented

Richest spec table

109 rows

Recorded power

140 hp

Recorded weight

5142 kg

Transmissions

16-speed partial power shift

Production years

2007-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Four-wheel driveReference

Steeringhydrostatic powerReference

SteeringSuperSteer optionalReference

Hydraulic wet disc brakesReference

Horizon cab standard.Reference

Variants

T6070 Plusmid-levelReference

T6070 ElitepremiumReference

Engine

FPT 6.7L 6-cyl dieselReference

Engine (gross)104.4 kWReference

Drawbar (tested)77.7 kWReference

FPTReference

turbocharged air-to-air aftercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

Power (gross)104.4 kWReference

Fuel systemmechanical rotary pumpReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Oil capacity15.1 LReference

Max power95.9 kWReference

Power at rated engine speed95.5 kWReference

Max power77.7 kWReference

Fuel TypeDieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 RPMReference

Bore and stroke4.094x5.197 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speed partial power shiftReference

TransmissionElectroShiftReference

Typepartial power shiftReference

Gears16 forward and reverseReference

Four gears in four ranges (A-D). Push-button power shifting between gears and clutch-free shifting between ranges A-B and C-D. Synchronized shift from ranges B to C. Power shuttle shifting.Reference

TransmissionAutoShiftReference

AutoShift adds an automatic shifting funtion to the ElectroShift transmission.Reference

Transmission TypePowershiftReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)89.5 kWReference

PTO (tested)95.9 kWReference

Hydraulic system61.7 LReference

Typeclosed center load-sensingReference

Capacity61.7 LReference

Valves2 to 4Reference

Pump flow100.3 lpmReference

Total flow140.0 lpmReference

Steering flow39.7 lpmReference

Rear TypeII/IIINReference

Controlelectronic lower link draft sensingReference

Rear lift5527 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000Reference

Power at rated PTO speed95.9 kWReference

Capacities

Fuel249.8 LReference

SuperSteer Fuel230.1 LReference

Fuel tank249.8 LReference

Crankcase oil volume16 qtsReference

Dimensions

Wheelbase265 cmReference

Weight5142 kgReference

Height (cab)289 cmReference

Height (exhaust)291 cmReference

Shipping weight5142 kgReference

Front axleFWDReference

Front axleFWD TerraLockReference

Front axleSuperSteer FWD TerraLockReference

Front axleTerraGlide FWD TerraLockReference

Front tread157 to 233 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Charging volts12Reference

Battery CCA960Reference

Battery volts12Reference

Total cold cranking amps960 CCAReference

Test results

Diesel 16-speed 4WDDecember 2007 - May 2008, Link: OCED Tractor Test 2450 fileReference

PTO performanceReference

Fuel use29.5 l/hourReference

Fuel use30.3 l/hourReference

Drawbar performanceReference

Fuel use29.9 l/hourReference

Gear 7B used for power test.Reference

Max pull5899 kgReference

Gear 1A used for pull test.Reference

General

Make & ModelNew HollandReference

Cruise controlAvailableReference

SCV controlJoystickReference

PTO

PTO Power120 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typehydrostatic power | SuperSteer optionalReference

Hydraulics

Pump Rated Output (total)37 gpmReference

Hydraulics Typeclosed center load-sensingReference

Remote Valves2 to 4 ValvesReference

Steering & Implements flow10.5 gpm (26.5 gpm)Reference

Rear Hitch category (SAE designation)Category II/IIINReference

Rear Hitch maximum lift capacity5,527 kgReference

Rear Hitch Sensing Typeelectronic lower link draft sensingReference

Dimensions & weight

Height Over Cab289.8 cmReference

Overall Height291.8 cmReference

Overall weight5,141.9 kgReference

Wheels & tyres

Front Wheel tread range62.2 to 92 inchesReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialHorizon cab standard.Reference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
