Tractor · 2012Unverified

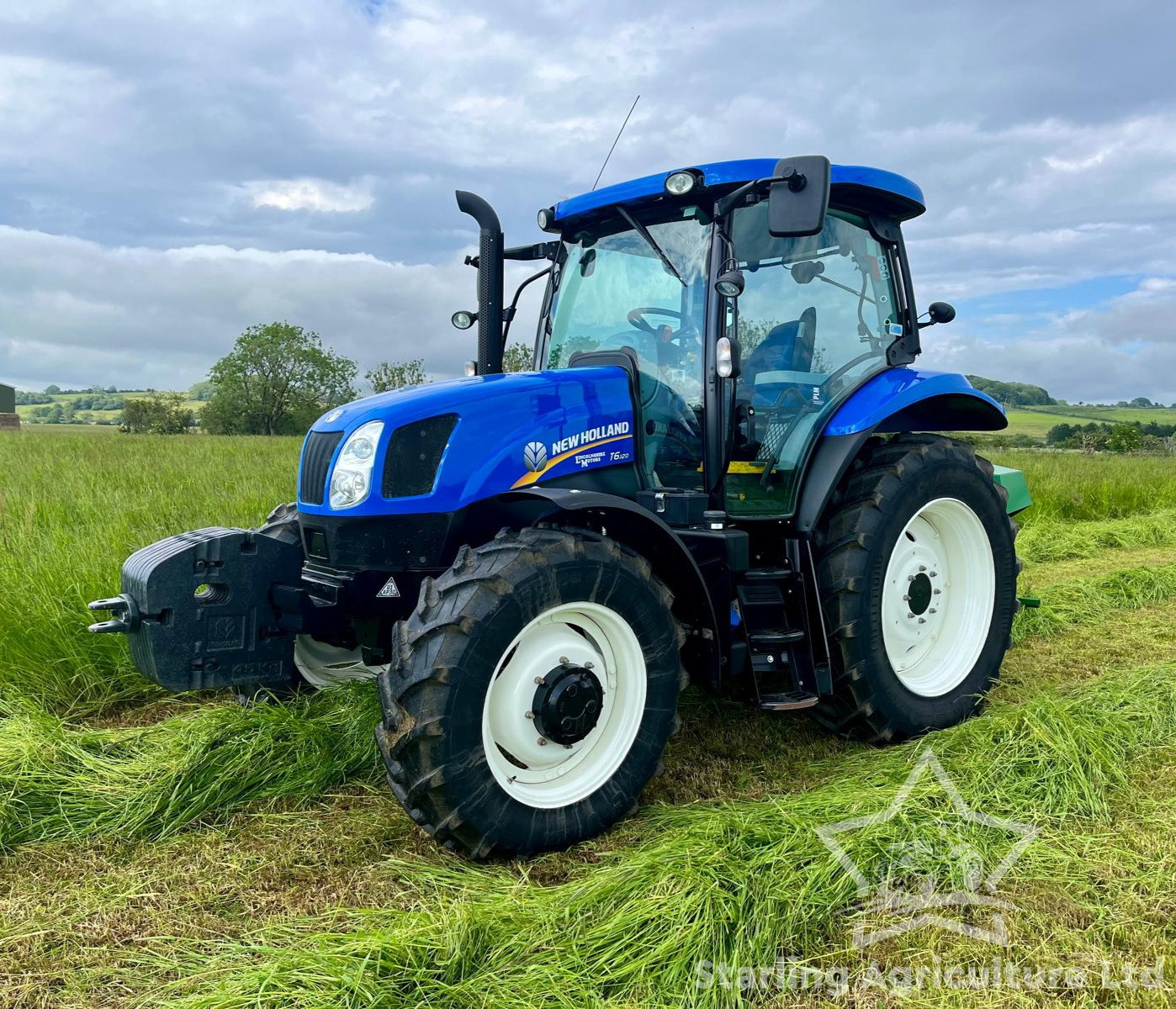

New Holland T6.120
New Holland T6.120 — T6 Series · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Max power
78.3 kW
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Row-Crop tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Engine
FPT 4.5L 4-cyl dieselReference
Engine82.0 kWReference
Drawbar (tested)56.1 kWReference
FPTReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsInterim Tier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Power82.0 kWReference
Maximum Power90.2 kWReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Max power78.3 kWReference
Power at rated engine speed70.6 kWReference
Max power56.1 kWReference
Transmission
24-speed two-speed power shiftReference
16-speed eight-speed power shiftReference
16-speedReference
TransmissionDual CommandReference
Typetwo-speed power shiftReference
Gears24 forward and reverseReference
TransmissionElectroShiftReference
Typeeight-speed power shiftReference
Gears16 forward and reverseReference
Four push-button power shift gears in four ranges. Clutch free shifting between ranges 1-2 and 3-4. Power shuttle.Reference
TransmissionAutoShiftReference
AutoShift adds automatic shifting to the ElectroShift transmission. Also available in a 17-speed version with 40 KPH or 50 KPH top speed.Reference
PTO & Hydraulics
PTO (tested)78.3 kWReference
Rear TypeIIReference
Power at rated PTO speed76.2 kWReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 16-speed 4WDMay 2012 - 2012, Link: OCED Tractor Test 2699 fileReference
PTO performanceReference
Fuel use22.0 l/hourReference
Fuel use21.6 l/hourReference
Drawbar performanceReference
Fuel use20.4 l/hourReference
Gear 9 used for power test.Reference
Max pull4404 kgReference
Gear 5 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
