Tractor · 2015Unverified

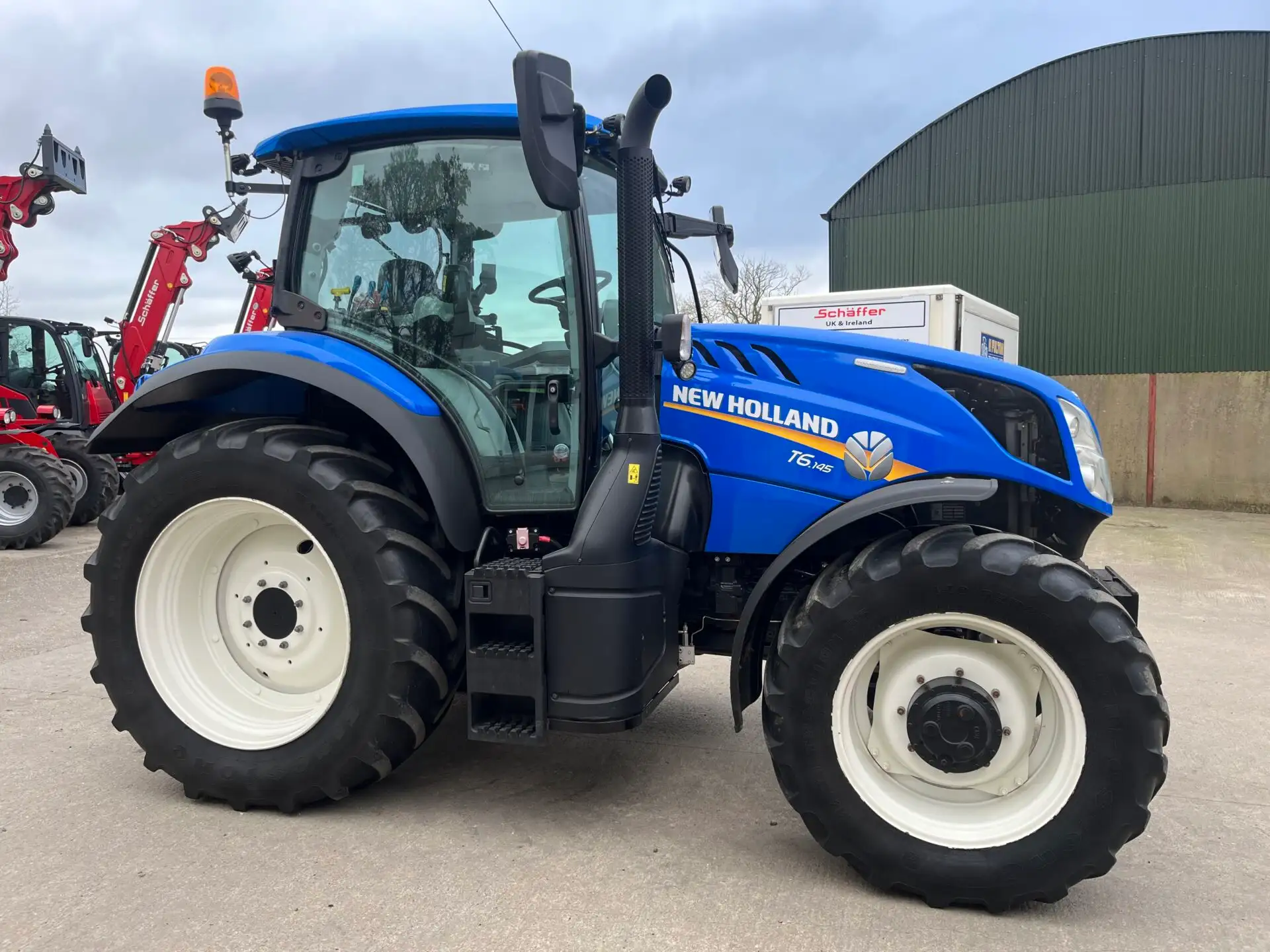

New Holland T6.145

Name: New Holland T6.145
Brand: New Holland

New Holland T6.145 — T6 Series · 107 hp. Reference specifications; pending source verification.

The New Holland T6.145 is a tractor with a rated output of 107 horsepower, positioning it centrally within its class in terms of power. First introduced in 2015, this model features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, connected to a four-wheel drive system and a continuously variable transmission. The tractor's listed weight ranges from 10561 to 12514 pounds. It is designed for applications that cover approximately 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

107 hp

Max power

86.9 kW

Weight

10561 to 12514 pounds

Catalogue coverage

Variants represented

Richest spec table

100 rows

Recorded power

107 hp

Transmissions

16-speed partial power shift

Production years

2015-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Row-Crop tractorReference

Original price$101,700 (2015 Value )Reference

Original price$112,546 (2015 Elite )Reference

Four-wheel driveReference

Final drivesinboard planetaryReference

Wet disc brakesReference

Horizon cab standard with air-conditioning. Comfort Ride cab suspension optional on Plus and Elite models. ISOBUS II and AutoGuidance available on Plus and Elite models.Reference

Variants

T6.145 ValueeconomyReference

T6.145 Plusmid-specReference

T6.145 ElitepremiumReference

T6.145 CVTAutoCommandReference

Engine

FPT 4.5L 4-cyl dieselReference

Fuel tank198.7 LReference

Fuel tank221.8 LReference

Exhaust fluid (DEF)36.7 LReference

Engine86.5 kWReference

Drawbar (tested)54.1 kWReference

FPTReference

turbocharged air-to-air intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier IVReference

Emission controlselective catalytic reduction (SCR)Reference

Power86.5 kWReference

Maximum Power108.1 kWReference

Fuel systemelectronic high-pressure common rail direct injectionReference

Cooling systemviscous fanReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Max power86.9 kWReference

Power at rated engine speed79.6 kWReference

Max power54.1 kWReference

Transmission

16-speed partial power shiftReference

16-speedReference

32-speedReference

TransmissionElectro CommandReference

Typepartial power shiftReference

Gears16 forward and reverseReference

TransmissionElectro Command AutoShiftReference

partial power shiftReference

TransmissionElectro Command CreeperReference

Gears32 forward and reverseReference

PTO & Hydraulics

PTO (claimed)70.8 kWReference

PTO (tested)86.9 kWReference

Typefixed displacementReference

Typeclosed center load-sensingReference

Rear valves2 to 4Reference

Mid valves0 to 3Reference

Pump flow79.9 lpmReference

Pump flow113.2 lpmReference

Rear TypeIIReference

Rear TypeIII/IIReference

Rear lift (at ends)3782 kgReference

Rear lift (at ends)4179 kgReference

Front HitchoptionalReference

DrawbarCat. 3Reference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM1000@1924Reference

Front PTOoptionalReference

Power at rated PTO speed83.8 kWReference

Dimensions

Wheelbase264 cmReference

Suspension Wheelbase268 cmReference

SuperSteer Wheelbase278 cmReference

Weight10561 to 12514 poundsReference

Front tire380/85R28Reference

Rear tire460/85R38Reference

Ag front380/85R28Reference

Ag rear460/85R38Reference

Length454 cmReference

Suspension Length455 cmReference

SuperSteer Length465 cmReference

Front axle4WDReference

Front axleSuspended axleReference

Front axleSuperSteer axleReference

Flange rear axleReference

Bar rear axle92 by 2489 mmReference

5676 kgReference

Shipping4790 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Charging amps150Reference

Charging amps200Reference

Battery CCA1300Reference

Battery volts12Reference

Capacities

Max capacity8999 kgReference

New Holland T6.145 Height

Cab213 cmReference

Cab201 cmReference

Exhaust213 cmReference

Test results

Diesel 16-speed 4WDJuly 2016 - September 2016, Link: OCED Tractor Test 2998 fileReference

PTO performanceReference

Fuel use23.5 l/hourReference

Drawbar performanceReference

Fuel use23.1 l/hourReference

Max pull4649 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
