Tractor · 2012Unverified

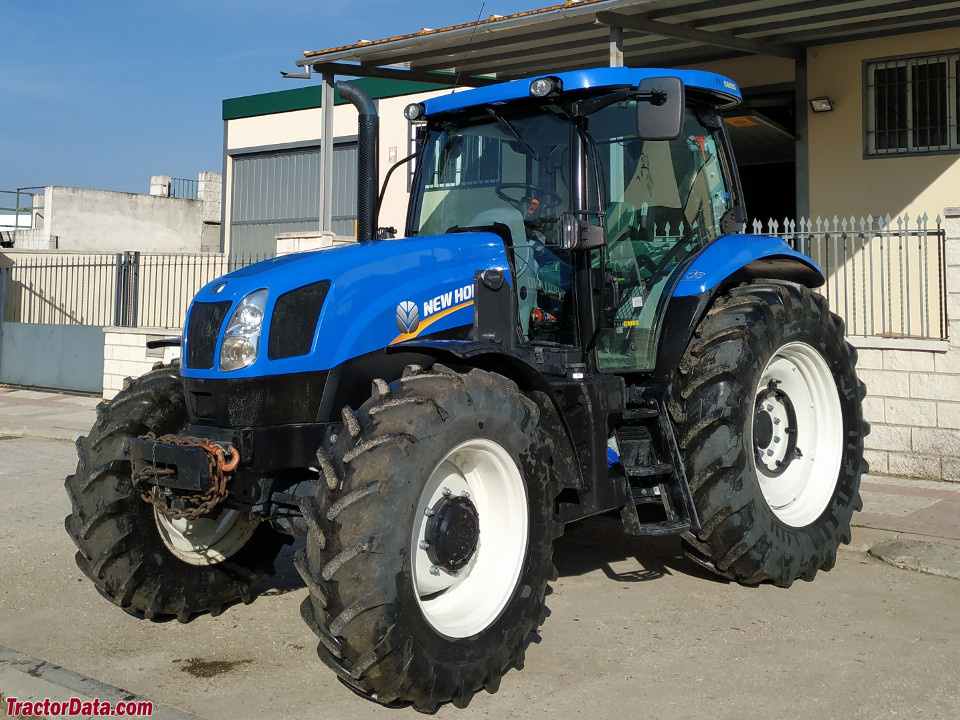

New Holland T6.155

Name: New Holland T6.155
Brand: New Holland

New Holland T6.155 — Model year 2012-20142015-2025 · 116 hp. Reference specifications; pending source verification.

The New Holland T6.155 is a tractor with a power rating of approximately 116 hp, positioned within the mid-range of its class. Manufactured from 2012 to 2025, this model features a 6-cylinder turbocharged diesel liquid-cooled engine, combined with four-wheel drive and a continuously variable transmission. The tractor's operating weight is 5010 kg and is suitable for operations covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

116 hp

Max power

84.3 kW

Weight

5010 kg

Catalogue coverage

Variants represented

Richest spec table

94 rows

Recorded power

116 hp

Recorded weight

5010 kg

Transmissions

24-speed two-speed power shift

Production years

2012-2025

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Row-Crop tractorReference

Original price was $84,514 in 2014Reference

Four-wheel driveReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Horizon cab standard with air-conditioning. Optional deluxe high-profile roof. Optional cab suspension.Reference

Engine

FPT 6.7L 6-cyl dieselReference

Fuel tank227.1 LReference

Exhaust fluid (DEF)36.7 LReference

Engine (gross)86.5 kWReference

Engine (max)114.8 kWReference

Drawbar (tested)65.1 kWReference

FPTReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsInterim Tier IVReference

Emission controlselective catalytic reduction (SCR)Reference

Rated Power (gross)86.5 kWReference

Maximum Power (gross)114.8 kWReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Max power84.3 kWReference

Power at rated engine speed80.6 kWReference

Max power65.1 kWReference

Transmission

24-speed two-speed power shiftReference

16-speed eight-speed power shiftReference

16-speedReference

TransmissionDual CommandReference

Typetwo-speed power shiftReference

Gears24 forward and reverseReference

TransmissionElectroShiftReference

Typeeight-speed power shiftReference

Gears16 forward and reverseReference

Four push-button power shift gears in four ranges. Clutch free shifting between ranges 1-2 and 3-4. Power shuttle.Reference

TransmissionAutoShiftReference

AutoShift adds automatic shifting to the ElectroShift transmission. Also available in a 17-speed version with 40 KPH or 50 KPH top speed.Reference

PTO & Hydraulics

PTO (claimed)70.8 kWReference

PTO (tested)84.3 kWReference

Typeopen centerReference

Typeclosed center load sensing (optional)Reference

Rear valves2 to 4Reference

Mid valves2 or 3Reference

Pump flow70.0 lpmReference

Pump flow100.3 lpmReference

Total flow109.8 lpmReference

Total flow147.2 lpmReference

Total flow124.9 lpmReference

Steering flow46.9 lpmReference

Rear TypeIIReference

Controlelectronic draft controlReference

Rear lift (at 24"/610mm)3048 kgReference

Rear lift (at 24"/610mm)3619 kgReference

Front lift (at ends)3099 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540@1969Reference

Engine RPM1000@1924Reference

Front PTOoptionalReference

Front PTO Type1000Reference

Power at rated PTO speed84.1 kWReference

Dimensions

Weight5010 kgReference

Length453 cmReference

Width228 cmReference

Height (cab)280 cmReference

Height (cab)292 cmReference

Shipping weight5010 kgReference

Ground clearance47 cmReference

Front axle4WDReference

Front axleTerraGlide suspensionReference

Front axleSuperSteerReference

Flange rear axleReference

Bar rear axle2489 mmReference

Rear tread152 to 213 cmReference

New Holland T6.155 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Attachment overview

New Holland 845TL loaderReference

New Holland 855TL loaderReference

Test results

Diesel 24-speed 4WDMay 2012 - 2012, Link: OCED Tractor Test 2696 fileReference

PTO performanceReference

Fuel use23.8 l/hourReference

Fuel use24.6 l/hourReference

Fuel use24.2 l/hourReference

Drawbar performanceReference

Fuel use23.1 l/hourReference

Gear 2MR used for power test.Reference

Max pull4833 kgReference

Gear 1MR used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
