Tractor · 2015Unverified

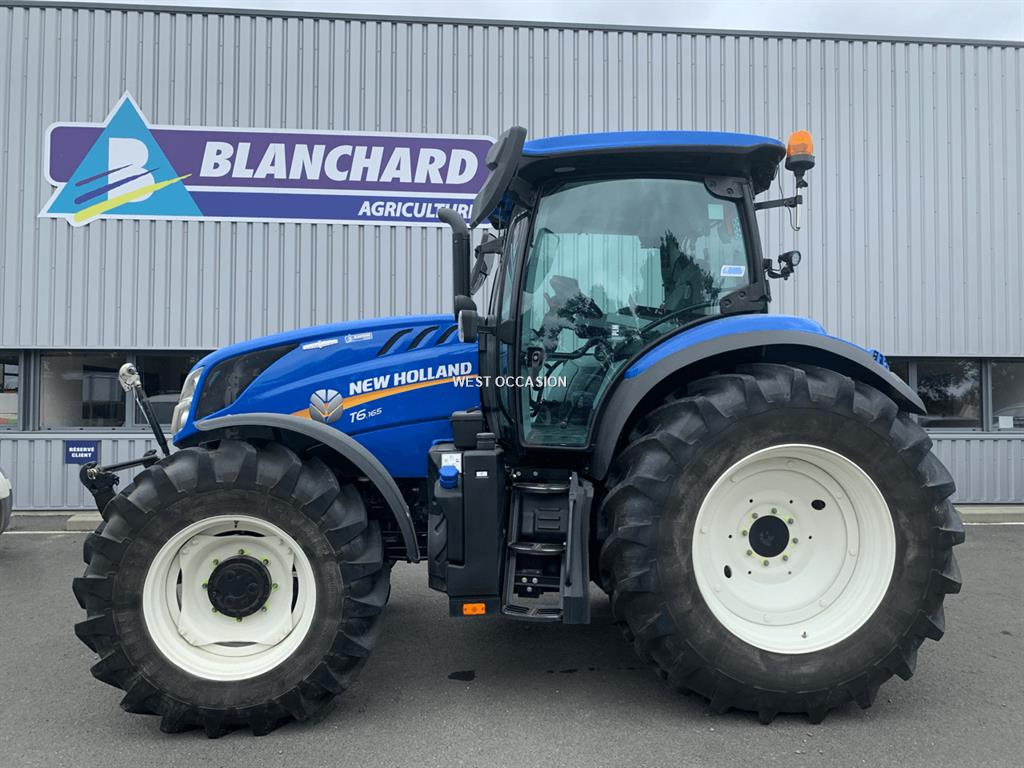

New Holland T6.165 Auto Command
New Holland T6.165 Auto Command — T6 Series · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Weight
10561 to 12514 pounds
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Row-Crop tractorReference
Original price was $147,260 in 2015Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Wet disc brakesReference
Horizon cab standard with air-conditioning and Comfort Ride cab suspension. ISOBUS II ((Optional)); AutoGuidance ((Optional))Reference
Variants
T6.165 ValueeconomyReference
T6.165 Plusmid-specReference
T6.165 ElitepremiumReference
T6.165 CVTAutoCommandReference
Engine
FPT 4.5L 4-cyl dieselReference
Exhaust fluid (DEF)36.7 LReference
Engine100.7 kWReference
FPTReference
turbocharged air-to-air intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Power100.7 kWReference
Maximum Power126.0 kWReference
Fuel systemelectronic high-pressure common rail direct injectionReference
Cooling systemviscous fanReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
continuously variable transmission (CVT)Reference
TransmissionAuto CommandReference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)82.0 kWReference
Typeclosed center load sensingReference
Rear valves3 to 4Reference
Mid valves0 to 3Reference
Pump flow124.9 lpmReference
Rear TypeIIReference
Rear TypeIII/IIReference
Rear lift (at ends)5283 kgReference
Front HitchoptionalReference
DrawbarCat. 3Reference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Front PTOoptionalReference
Dimensions
Wheelbase264 cmReference
Suspension Wheelbase268 cmReference
SuperSteer Wheelbase278 cmReference
Weight10561 to 12514 poundsReference
Front tire380/85R28Reference
Rear tire460/85R38Reference
Ag front380/85R28Reference
Ag rear460/85R38Reference
Length454 cmReference
Suspension Length455 cmReference
SuperSteer Length465 cmReference
Front axle4WDReference
Front axleSuspended axleReference
Front axleSuperSteer axleReference
Flange rear axleReference
Bar rear axle92 by 2489 mmReference
5676 kgReference
Shipping4790 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Charging amps200Reference
Battery CCA1300Reference
Battery volts12Reference
Capacities
Max capacity8999 kgReference
New Holland T6.165 Auto Command Height
Cab213 cmReference
Cab201 cmReference
Exhaust213 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
