Tractor · 2012Unverified

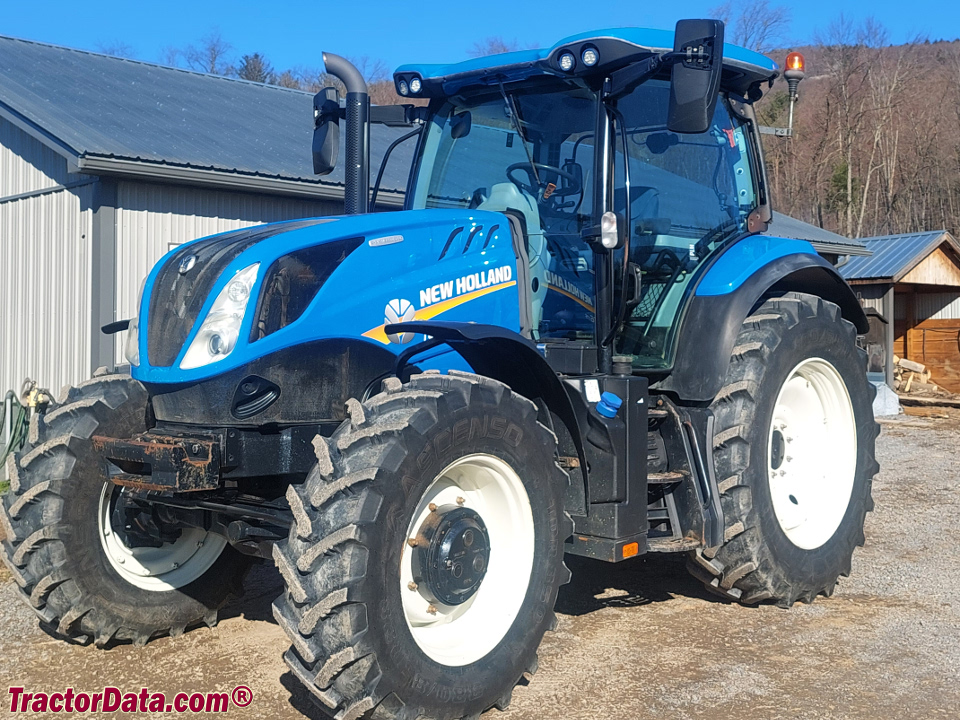

New Holland T6.175
New Holland T6.175 — Model year 2012-20142015-2025 · 140 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
140 hp
Max power
103.8 kW
Weight
5010 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Row-Crop tractorReference
Original price was $98,879 in 2014Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Horizon cab standard with air-conditioning. Optional deluxe high-profile roof. Optional cab suspension.Reference
Engine
FPT 6.7L 6-cyl dieselReference
Fuel tank227.1 LReference
Exhaust fluid (DEF)36.7 LReference
Engine (gross)104.4 kWReference
Engine (max)130.5 kWReference
Drawbar (tested)72.0 kWReference
FPTReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsInterim Tier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Rated Power (gross)104.4 kWReference
Maximum Power (gross)130.5 kWReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Max power103.8 kWReference
Power at rated engine speed96.7 kWReference
Max power72.0 kWReference
Transmission
24-speed two-speed power shiftReference
16-speed eight-speed power shiftReference
16-speedReference
TransmissionDual CommandReference
Typetwo-speed power shiftReference
Gears24 forward and reverseReference
TransmissionElectroShiftReference
Typeeight-speed power shiftReference
Gears16 forward and reverseReference
Four push-button power shift gears in four ranges. Clutch free shifting between ranges 1-2 and 3-4. Power shuttle.Reference
TransmissionAutoShiftReference
AutoShift adds automatic shifting to the ElectroShift transmission. Also available in a 17-speed version with 40 KPH or 50 KPH top speed.Reference
PTO & Hydraulics
PTO (claimed)89.5 kWReference
PTO (tested)103.8 kWReference
Typeopen centerReference
Typeclosed center load sensing (optional)Reference
Rear valves2 to 4Reference
Mid valves2 or 3Reference
Pump flow70.0 lpmReference
Pump flow100.3 lpmReference
Total flow109.8 lpmReference
Total flow147.2 lpmReference
Total flow124.9 lpmReference
Steering flow46.9 lpmReference
Rear TypeIIReference
Controlelectronic draft controlReference
Rear lift (at 24"/610mm)3048 kgReference
Rear lift (at 24"/610mm)3619 kgReference
Front lift (at ends)3099 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1969Reference
Engine RPM1000@1924Reference
Front PTOoptionalReference
Front PTO Type1000Reference
Power at rated PTO speed103.3 kWReference
Dimensions
Weight5010 kgReference
Length453 cmReference
Width228 cmReference
Height (cab)280 cmReference
Height (cab)292 cmReference
Shipping weight5010 kgReference
Ground clearance47 cmReference
Front axle4WDReference
Front axleTerraGlide suspensionReference
Front axleSuperSteerReference
Flange rear axleReference
Bar rear axle2489 mmReference
Rear tread152 to 213 cmReference
New Holland T6.175 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
New Holland 845TL loaderReference
New Holland 855TL loaderReference
Test results
Diesel 17-speed 4WDMay 2012 - June 2012, Link: OCED Tractor Test 2708 fileReference
PTO performanceReference
Fuel use28.4 l/hourReference
Fuel use28.8 l/hourReference
Drawbar performanceReference
Gear 7 used for power test.Reference
Max pull5161 kgReference
Gear 4 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
