Tractor · 2007Unverified

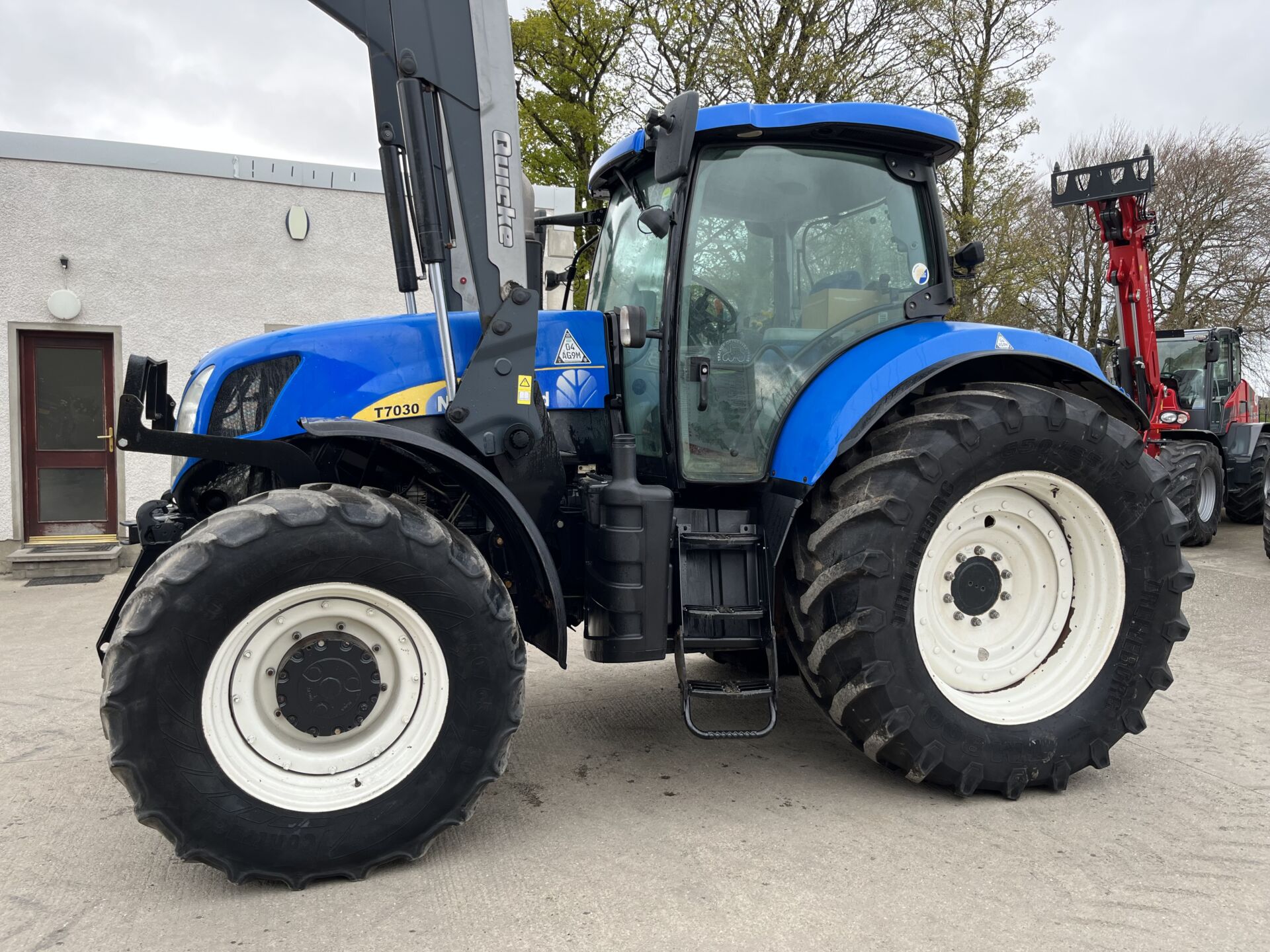

New Holland T7030

Name: New Holland T7030
Brand: New Holland

New Holland T7030 — T7000 Series · 140 hp. Reference specifications; pending source verification.

The New Holland T7030 is a tractor with a rated output of 140 hp, positioning it among the more powerful machines in its class. Manufactured from 2007 to 2011, this tractor features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine. It is equipped with four-wheel drive and a continuously variable transmission, with a listed weight of 15708 to 17725 pounds. The T7030 is designed for use on areas of around 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

140 hp

Max power

121.7 kW

Weight

15708 to 17725 pounds

Catalogue coverage

Variants represented

Richest spec table

147 rows

Recorded power

140 hp

Recorded weight

7125 kg

Transmissions

18-speed full power shift

Production years

2007-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Row-Crop tractorReference

Built in Basildon, EnglandReference

The New Holland T7030 is available with optional TerraGlide or SuperSteer front axles. The TerraGlide axle provides 4.13 inches of travel to improve traction and ride quality. The SuperSteer axle pivots 19 degrees (in addition to the 46 degrees of wheel pivot) to allow for quicker turning.Reference

Four-wheel driveReference

Differential lockelectro-hydraulic rear differential lockReference

Steeringhydrostatic powerReference

Differential hydraulic wet disc brakesReference

Trailer brakeshydraulic optionalReference

Horizon cab standard with heat and air-conditioning. Optional deluxe cab with air-ride heated seat, automatic temperature control, and heated mirrors.Reference

Engine

FPT 6.7L 6-cyl dieselReference

Engine116.3 kWReference

Drawbar (tested)79.8 kWReference

FPT NEFReference

intercooled turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier 3Reference

Power116.3 kWReference

Fuel systemBosch electronic common railReference

Cooling systemviscous fanReference

Air cleanerdual paper elements with aspiratorReference

Pre-heatinggrid heaterReference

Compression16.5:1Reference

Rated RPM2200Reference

Torque874.1 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Starter power4.2 kWReference

Oil capacity15.1 LReference

Max power121.7 kWReference

Power at rated engine speed104.2 kWReference

Max power79.8 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier 3Reference

Engine torque at rated speed292.4 kgReference

Bore and stroke4.094x5.197 inchesReference

Compression ratio16.5:1Reference

Transmission

18-speed full power shiftReference

19-speed full power shiftReference

continuously variable transmission (CVT)Reference

28-speedReference

TransmissionPower CommandReference

Typefull power shiftReference

Gears18 forward and 6 reverseReference

TransmissionPower Command EconomyReference

Gears19 forward and 6 reverseReference

The economy transmission adds an overdrive gear to the 18-speed Power Command allowing for more efficicent high-speed transport. A high-speed transport gear was also available on the Power Command.Reference

TransmissionAuto CommandReference

Typecontinuously variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

TransmissionCreeperReference

Gears28 forward and 12 reverseReference

Transmission TypeCVTReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)100.7 kWReference

PTO (tested)121.7 kWReference

Hydraulic system100.3 LReference

Typeclosed center load sensing (CCLS)Reference

Capacity100.3 LReference

Rear valves3 to 5Reference

Pump flow121.1 lpmReference

Pump flow149.9 lpmReference

Total flow185.5 lpmReference

Total flow214.2 lpmReference

Steering flow66.6 lpmReference

Rear Type3/2Reference

Controlelectronic lower-link draft controlReference

Rear lift (at ends)8645 kgReference

Rear lift (at 24"/610mm)5800 kgReference

Front lift3620 kgReference

Front lift2730 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000Reference

Rear PTO Type540E/1000Reference

Rear PTO Type1000 (1.75)Reference

Power at rated PTO speed105.5 kWReference

Capacities

Fuel439.8 LReference

Fuel405.0 LReference

Fuel tank439.9 LReference

Crankcase oil volume16 qtsReference

Dimensions

Wheelbase288 cmReference

Wheelbase297 cmReference

Weight15708 to 17725 poundsReference

Length481 cmReference

Width233 cmReference

Height (cab)304 cmReference

Height (exhaust)311 cmReference

Shipping weight7125 kgReference

Operating weight8040 kgReference

Front axleTerraLockReference

Front axleSuperSteerReference

Front axle0 mmReference

Flange rear axleReference

Bar rear axle2489 mmReference

Bar rear axle2844 mmReference

Bar rear axle3022 mmReference

New Holland T7030 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps150Reference

Charging amps200 (optional)Reference

Battery CCA1300Reference

Battery volts12Reference

Total cold cranking amps1,300 CCAReference

Attachment overview

New Holland 860TL loaderReference

New Holland 850TL loaderReference

Test results

Diesel 19-speed 4WDApril 1 - July 1, 2007Link: OCED Tractor Test 2409 fileReference

PTO performanceReference

Fuel use36.0 l/hourReference

Fuel use35.6 l/hourReference

Fuel use31.0 l/hourReference

Drawbar performanceReference

Gear 8 used for power test.Reference

Max pull7414 kgReference

Gear 6 used for pull test.Reference

General

Make & ModelNew HollandReference

Cruise controlAvailableReference

SCV controlJoystickReference

Front Axle TypeTerraLock | SuperSteer | TerraGlide suspension inch diameterReference

Country of manufacturerEnglandReference

Hydraulics

Capacity Valves24 ValvesReference

Pump Rated Output (total)56.6 gpmReference

Hydraulics Typeclosed center load sensing (CCLS)Reference

Remote Valves3 to 5 ValvesReference

Steering & Implements flow17.6 gpm (39.6 gpm)Reference

Rear Hitch category (SAE designation)Category 3/2Reference

Rear Hitch maximum lift capacity8,645.5 kgReference

Rear Hitch Sensing Typeelectronic lower-link draft controlReference

PTO

PTO Power135 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakesdifferential hydraulic wet discReference

Steering typehydrostatic powerReference

Dimensions & weight

Overall Height311.4 cmReference

Height Over Cab304 cmReference

Overall Length481.6 cmReference

Overall Width233.4 cmReference

Overall weight7,125 kgReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
