Tractor · 2007Unverified

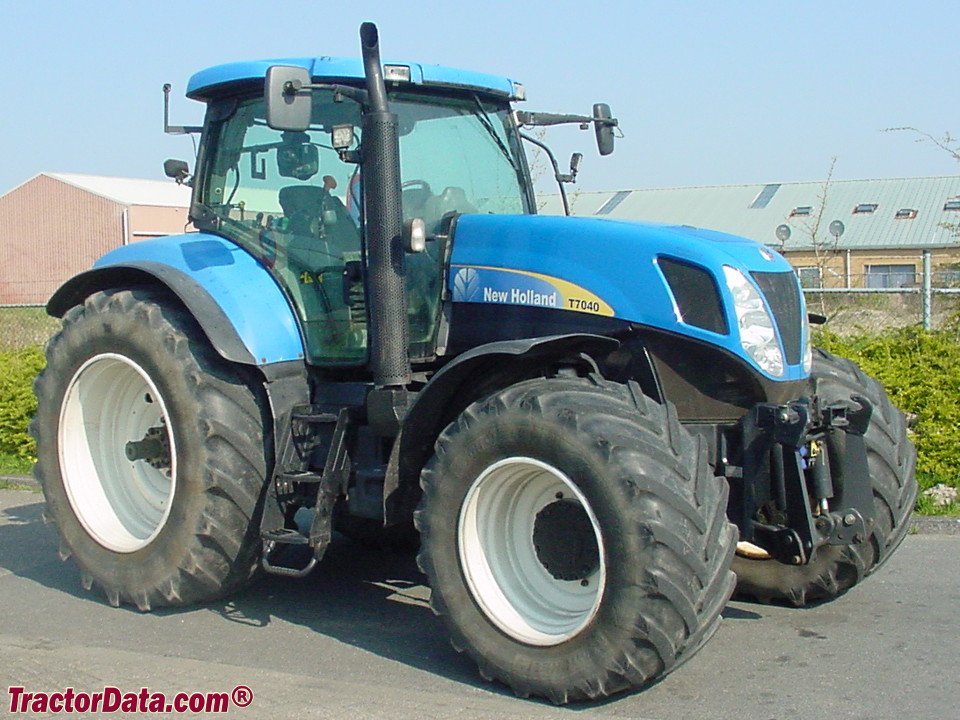

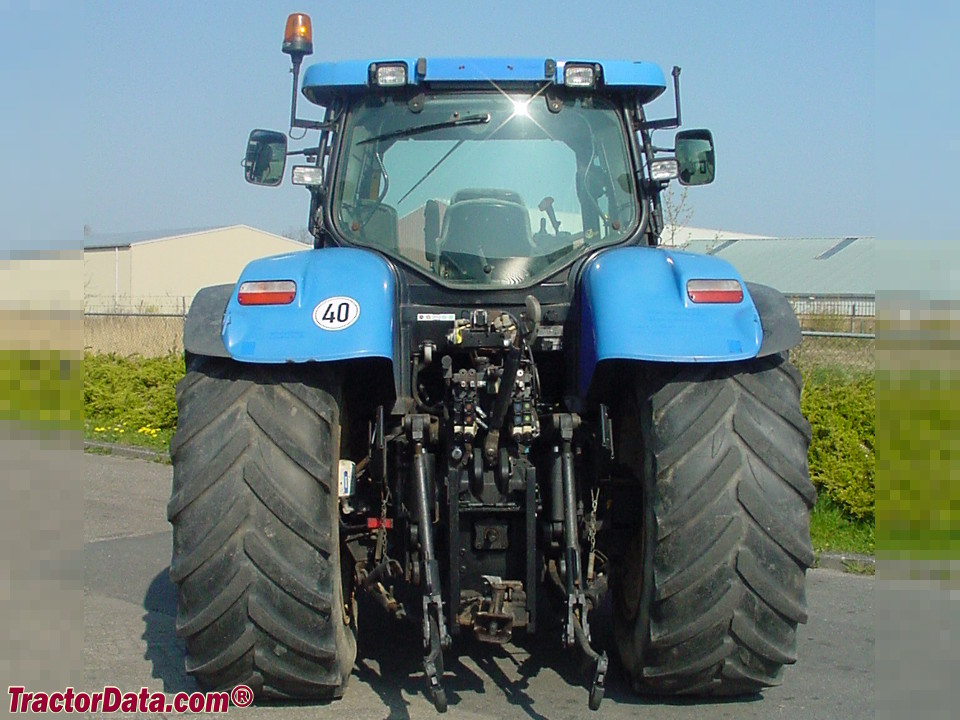

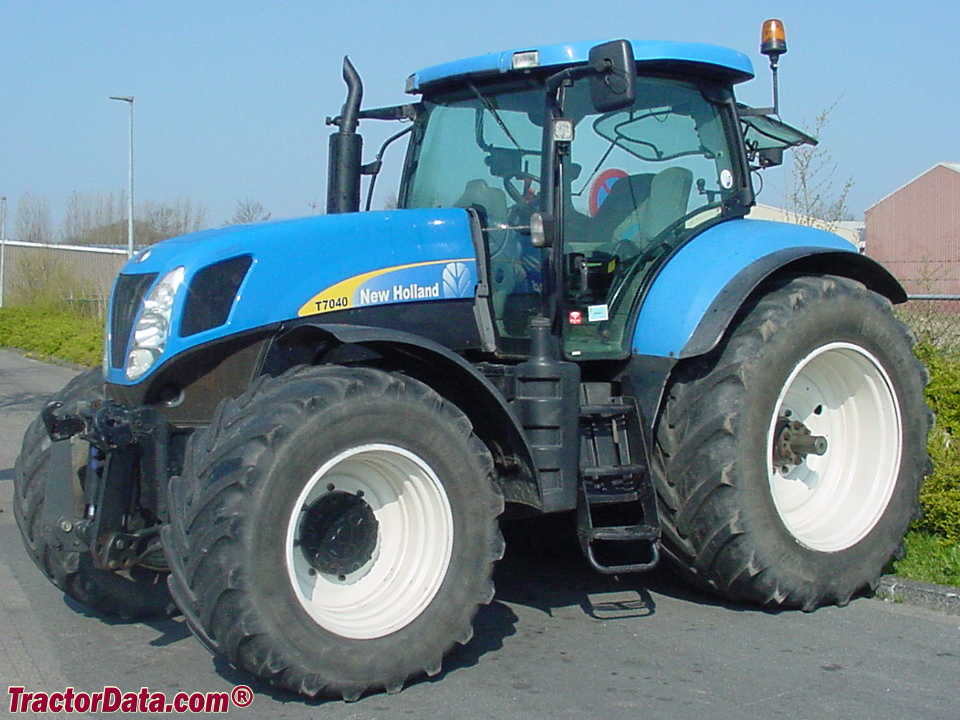

New Holland T7040
New Holland T7040 — T7000 Series · 159 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
159 hp
Max power
134.1 kW
Weight
15708 to 17595 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Row-Crop tractorReference
Built in Basildon, EnglandReference
The T7040 is available with optional TerraGlide or SuperSteer front axles. The TerraGlide axle provides 4.13 inches of travel to improve traction and ride quality. The SuperSteer axle pivots 19 degrees (in addition to the 46 degrees of wheel pivot) to allow for quicker turning.Reference
Four-wheel driveReference
Differential lockelectro-hydraulic rear differential lockReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Trailer brakeshydraulic optionalReference
cab with A/CReference
Engine
FPT 6.7L 6-cyl dieselReference
Engine134.2 kWReference
Drawbar (tested)99.0 kWReference
FPT NEFReference
intercooled turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Power134.2 kWReference
Fuel systemBosch electronic common railReference
Cooling systemviscous fanReference
Air cleanerdual paper elements with aspiratorReference
Pre-heatinggrid heaterReference
Compression16.5:1Reference
Rated RPM2200Reference
Torque946.6 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Starter power4.2 kWReference
Oil capacity15.1 LReference
Max power134.1 kWReference
Power at rated engine speed118.3 kWReference
Max power99.0 kWReference
Transmission
18-speed full power shiftReference
19-speed full power shiftReference
continuously variable transmission (CVT)Reference
28-speedReference
TransmissionPower CommandReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
TransmissionPower Command EconomyReference
Gears19 forward and 6 reverseReference
The economy transmission adds an overdrive gear to the 18-speed Power Command allowing for more efficicent high-speed transport. A high-speed transport gear was also available on the Power Command.Reference
TransmissionAuto CommandReference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
TransmissionCreeperReference
Gears28 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)111.9 kWReference
PTO (tested)134.1 kWReference
Hydraulic system100.3 LReference
Typeclosed center load sensing (CCLS)Reference
Capacity100.3 LReference
Rear valves3 to 5Reference
Pump flow121.1 lpmReference
Pump flow149.9 lpmReference
Total flow185.5 lpmReference
Total flow214.2 lpmReference
Steering flow66.6 lpmReference
Rear Type3/2Reference
Controlelectronic lower-link draft controlReference
Rear lift (at ends)8645 kgReference
Rear lift (at 24"/610mm)5800 kgReference
Front lift3620 kgReference
Front lift2730 kgReference
Rear PTOindependent electro-hydraulicReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000Reference
Rear PTO Type540E/1000Reference
Rear PTO Type1000 (1.75)Reference
Power at rated PTO speed122.6 kWReference
Capacities
Fuel439.8 LReference
Fuel405.0 LReference
Dimensions
Wheelbase288 cmReference
Wheelbase297 cmReference
Weight15708 to 17595 poundsReference
Length481 cmReference
Width233 cmReference
Height (cab)304 cmReference
Height (exhaust)311 cmReference
Shipping weight7125 kgReference
Operating weight7981 kgReference
Front axleTerraLockReference
Front axleSuperSteerReference
Front axle0 mmReference
Flange rear axleReference
Bar rear axle2489 mmReference
Bar rear axle2844 mmReference
Bar rear axle3022 mmReference
New Holland T7040 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Charging amps200 (optional)Reference
Battery CCA1300Reference
Battery volts12Reference
Attachment overview
New Holland 860TL loaderReference
New Holland 850TL loaderReference
Test results
Diesel 19-speed 4WDJune 1 - September 1, 2007Link: OCED Tractor Test 2422 fileReference
PTO performanceReference
Fuel use37.9 l/hourReference
Fuel use37.1 l/hourReference
Drawbar performanceReference
Fuel use37.5 l/hourReference
Gear 8 used for power test.Reference
Max pull7622 kgReference
Gear 6 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
