Tractor · 2009Unverified

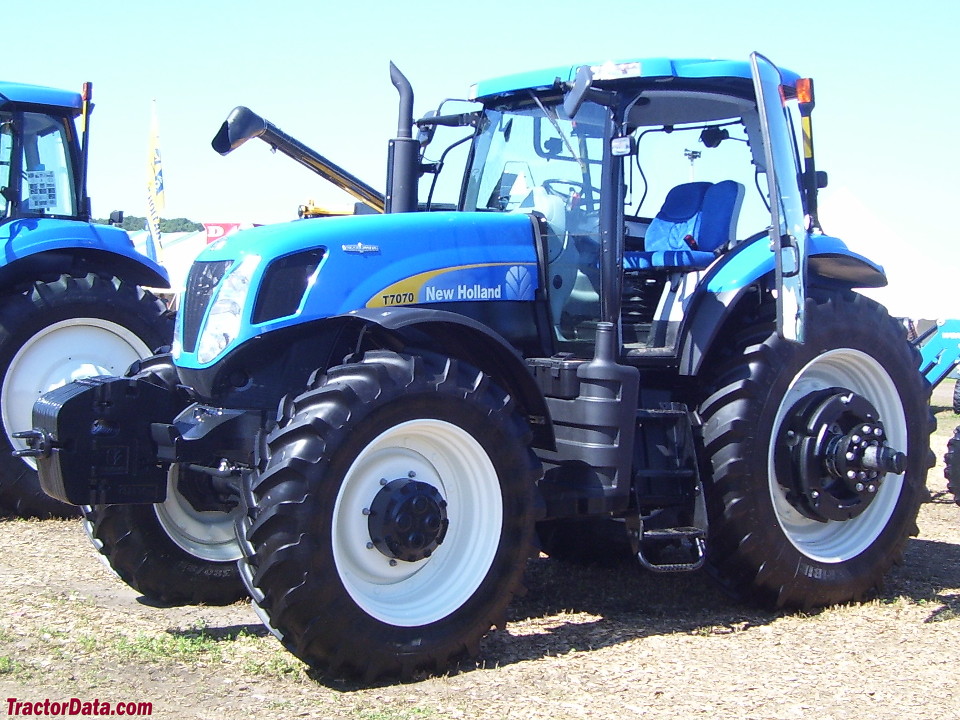

New Holland T7070

Name: New Holland T7070
Brand: New Holland

New Holland T7070 — T7000 Series · 205 hp. Reference specifications; pending source verification.

The New Holland T7070 is a tractor model with a maximum power output of 205 hp, positioning it among the more powerful machines in its class. Manufactured from 2009 to 2011, this model features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with four-wheel drive and a continuously variable transmission. The gross operating weight of the T7070 is 7248 kg, and it is designed for tasks involving areas of approximately 600-1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

205 hp

Max power

160.2 kW

Weight

7248 kg

Catalogue coverage

Variants represented

Richest spec table

116 rows

Recorded power

205 hp

Recorded weight

7248 kg

Transmissions

continuously variable transmission (CVT)

Production years

2009-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Row-Crop tractorReference

Built in Basildon, EnglandReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulic optionalReference

Horizon Cab standard with heat and air-conditioningReference

Engine

FPT 6.7L 6-cyl dieselReference

Fuel tank405.0 LReference

Engine167.8 kWReference

Drawbar (tested)128.2 kWReference

FPT NEFReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier 3Reference

Power167.8 kWReference

Maximum Power186.4 kWReference

Fuel systemBosch electronic common railReference

Air cleanerdryReference

Pre-heatinggrid heaterReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Starter power4.2 kWReference

Max power160.2 kWReference

Power at rated engine speed152.7 kWReference

Max power128.2 kWReference

Fuel TypeDieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier 3Reference

Bore and stroke4.094x5.197 inchesReference

Cooling systemliquid-cooledReference

Transmission

continuously variable transmission (CVT)Reference

TransmissionAutoCommandReference

Typecontinuously variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

Transmission TypeCVTReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)145.4 kWReference

PTO (tested)160.2 kWReference

Typeclosed center load sensing (CCLS)Reference

Rear valves3 to 5Reference

Pump flow121.1 lpmReference

Pump flow149.9 lpmReference

Total flow185.5 lpmReference

Total flow214.2 lpmReference

Steering flow64.3 lpmReference

Rear Type3/2Reference

Controlelectronic lower-link draft controlReference

Rear lift (at 24"/610mm)7199 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000Reference

Rear PTO Type540E/1000Reference

Rear PTO Type1000 (1.75)Reference

Power at rated PTO speed157.9 kWReference

Dimensions

Wheelbase288 cmReference

Weight7248 kgReference

Length550 cmReference

Width233 cmReference

Height316 cmReference

Shipping weight7248 kgReference

Max weight13000 kgReference

Front axleTerraLockReference

Front axleSuperSteerReference

Front axle0 mmReference

Flange rear axleReference

Bar rear axle2489 mmReference

Bar rear axle2844 mmReference

Bar rear axle3022 mmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps150Reference

Charging amps200 (optional)Reference

Battery CCA1300Reference

Battery volts12Reference

Test results

Diesel CVT 4WDJune 9 - 13, 2011Link: OCED Tractor Test 1996B fileReference

PTO performanceReference

Fuel use44.7 l/hourReference

Fuel use47.7 l/hourReference

Fuel use45.0 l/hourReference

Drawbar performanceReference

Fuel use48.8 l/hourReference

Pull at 9.0 KPHReference

Max pull8827 kgReference

Pull at 5.2 KPHReference

General

Make & ModelNew HollandReference

Cruise controlAvailableReference

SCV controlJoystickReference

Front Axle TypeTerraLock | SuperSteer | TerraGlide suspension inch diameterReference

Country of manufacturerEnglandReference

Capacities

Capacity410.6 ciReference

Hydraulics

Capacity Valves24 ValvesReference

Pump Rated Output (total)56.6 gpmReference

Hydraulics Typeclosed center load sensing (CCLS)Reference

Remote Valves3 to 5 ValvesReference

Steering & Implements flow17 gpm (39.6 gpm)Reference

Rear Hitch category (SAE designation)Category 3/2Reference

Rear Hitch Sensing Typeelectronic lower-link draft controlReference

Power

Rated Power225 hpReference

PTO

PTO Power195 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typehydrostatic powerReference

Dimensions & weight

Overall Height316.5 cmReference

Overall Length550.4 cmReference

Overall Width233.4 cmReference

Overall weight7,248.4 kgReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionComfort Ride™ cab suspensionReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
