Tractor · 2011Unverified

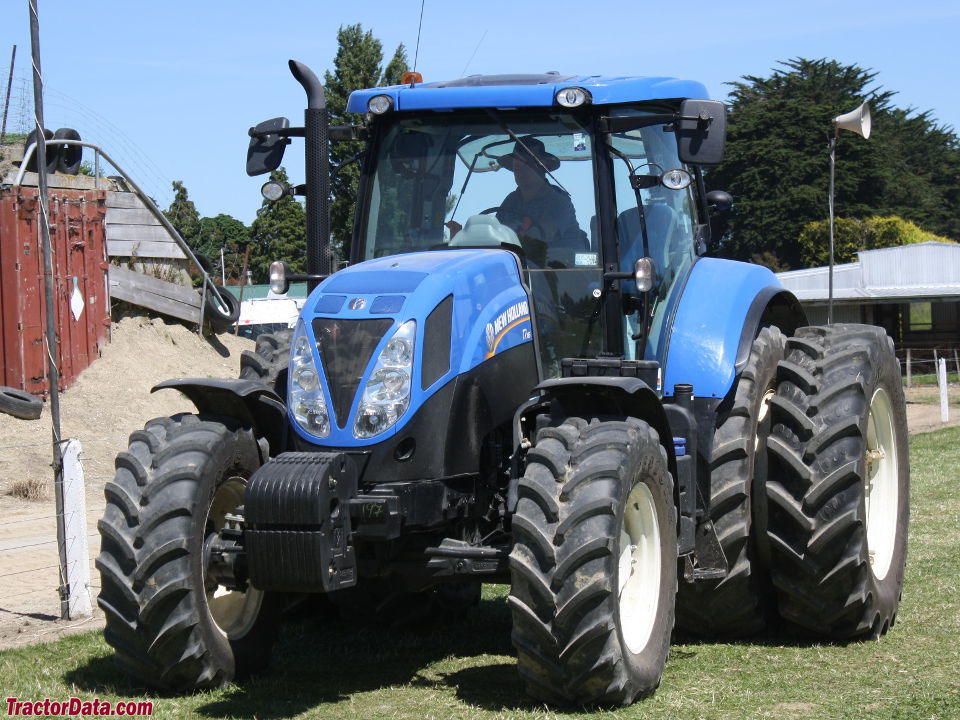

New Holland T7.185

Name: New Holland T7.185
Brand: New Holland

New Holland T7.185 — T7 Series · 140 hp. Reference specifications; pending source verification.

The New Holland T7.185 is a tractor with a rated power output of 140 hp, positioning it among the higher-powered machines in its class. Manufactured from 2011 to 2013, this model features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine. The tractor is equipped with four-wheel drive and a continuously variable transmission. Its listed weight is between 12787 and 13448 pounds, and it is designed for tasks on areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

140 hp

Max power

103.7 kW

Weight

12787 to 13448 pounds

Catalogue coverage

Variants represented

Richest spec table

113 rows

Recorded power

140 hp

Transmissions

19-speed 6-speed power shift

Production years

2011-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Row-Crop tractorReference

Built in Basildon, EnglandReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Brakeshydraulic wet discReference

Brakesengine exhaust brakeReference

Trailer brakeshydraulicReference

Trailer brakespneumaticReference

Horizon cab standard with air-conditioning. Intellisteer optionalReference

Engine

FPT 6.7L 6-cyl dieselReference

Fuel tank329.3 LReference

Exhaust fluid (DEF)49.2 LReference

Engine (gross)104.4 kWReference

Engine (max)140.2 kWReference

Drawbar (tested)81.6 kWReference

FPTReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsInterim Tier 4Reference

Emission controlselective catalytic reduction (SCR)Reference

Rated Power (gross)104.4 kWReference

Maximum Power (gross)140.2 kWReference

Fuel systemhigh pressure common railReference

Cooling systemviscous fanReference

Cooling systemreversible fanReference

Rated RPM2200Reference

Torque679.4 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Max power103.7 kWReference

Power at rated engine speed96.1 kWReference

Max power81.6 kWReference

Transmission

19-speed 6-speed power shiftReference

19-speed full power shiftReference

continuously-variable transmission (CVT)Reference

TransmissionRange CommandReference

Type6-speed power shiftReference

Gears19 forward and 6 reverseReference

Clutchhydraulic wet discReference

Six speeds (1-6) in three ranges (low, medium, high). Optional ECO 19th gear for road transport.Reference

TransmissionPower CommandReference

Typefull power shiftReference

Clutchelectro-hydraulic wet discReference

TransmissionAutoCommandReference

Typecontinuously-variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)85.8 kWReference

PTO (tested)103.7 kWReference

Typeclosed center load sensingReference

Rear valves3 to 5Reference

Mid valves3 (optional)Reference

Pump flow112.8 lpmReference

Pump flow124.9 lpmReference

Steering flow56.0 lpmReference

Rear TypeIIReference

Controlelectronic draft controlReference

Rear lift (at ends)5527 kgReference

Rear lift (at 24"/610mm)5362 kgReference

Rear Armsflex link endsReference

Front HitchoptionalReference

Front lift (at ends)3568 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Front PTOindependentReference

Front PTO Type1000Reference

Power at rated PTO speed103.0 kWReference

Dimensions

Wheelbase273 cmReference

Wheelbase278 cmReference

Wheelbase287 cmReference

Weight12787 to 13448 poundsReference

Rear tire18.4R38Reference

Ag rear18.4R38Reference

Length535 cmReference

Width243 cmReference

Height (cab)304 cmReference

Height (exhaust)300 cmReference

Ground clearance52 cmReference

Front axle4WDReference

Front axleTerraLockReference

Front axleSuperSteerReference

Flange rear axleReference

Bar rear axle2489 mmReference

Bar rear axle2844 mmReference

Shipping5800 kgReference

Shipping6100 kgReference

Shipping6080 kgReference

New Holland T7.185 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Charging amps150Reference

Charging amps200Reference

Battery CCA960Reference

Battery volts12Reference

Battery AH132Reference

Attachment overview

New Holland 840TL loaderReference

New Holland 850TL loaderReference

Capacities

Max capacity11000 kgReference

Test results

Diesel 18-speed 4WDMay 2011 - August 2011, Link: OCED Tractor Test 2649 fileReference

PTO performanceReference

Fuel use27.3 l/hourReference

Fuel use26.9 l/hourReference

Fuel use27.6 l/hourReference

Drawbar performanceReference

Fuel use26.5 l/hourReference

Gear 4M used for power test.Reference

Max pull42 kgReference

Gear 5L used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
