Tractor · 2014Unverified

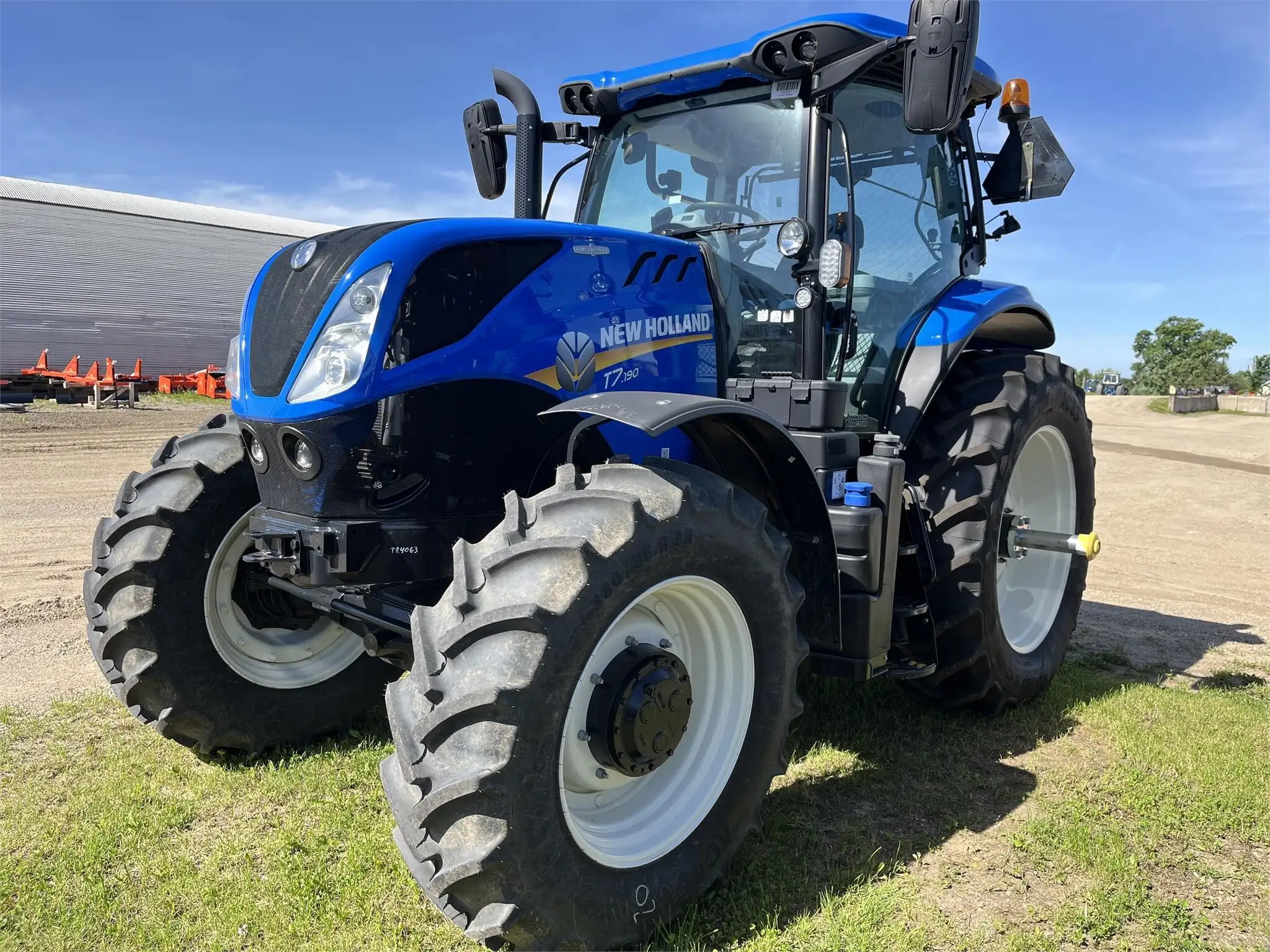

New Holland T7.190

Name: New Holland T7.190
Brand: New Holland

New Holland T7.190 — T7 Series · 150 hp. Reference specifications; pending source verification.

The New Holland T7.190 is a tractor model with a rated output of 150 hp, categorising it as a high-powered machine in its class. The T7.190 was manufactured in 2014. It features a 6-cylinder turbocharged diesel liquid-cooled engine, which powers a four-wheel drive system with a continuously variable transmission. The tractor's listed weight is between 12787 and 13448 pounds, and it is suited to tasks covering approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

150 hp

Max power

105.6 kW

Weight

12787 to 13448 pounds

Catalogue coverage

Variants represented

Richest spec table

95 rows

Recorded power

150 hp

Transmissions

18-speed full power shift

Production years

2014-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Row-Crop tractorReference

Original price$147,440 (2017 18-speed )Reference

Original price$167,412 (2017 CVT )Reference

Four-wheel driveReference

Final drivesinboard planetaryReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning. Optional Comfort Ride cab suspension.Reference

Engine

FPT 6.7L 6-cyl dieselReference

Fuel tank329.3 LReference

Exhaust fluid (DEF)49.2 LReference

Engine (gross)111.9 kWReference

Engine (max)141.7 kWReference

Drawbar (tested)75.4 kWReference

FPTReference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier IVReference

Emission controlselective catalytic reductionReference

Rated Power (gross)111.9 kWReference

Maximum Power (gross)141.7 kWReference

Fuel systemelectronic high-pressure common rail direct injectionReference

Cooling systemviscous fanReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Max power105.6 kWReference

Power at rated engine speed88.7 kWReference

Max power75.4 kWReference

Transmission

18-speed full power shiftReference

19-speed full power shiftReference

continuously-variable transmission (CVT)Reference

TransmissionPower CommandReference

Typefull power shiftReference

Gears18 forward and 6 reverseReference

Gears19 forward and 6 reverseReference

TransmissionAuto CommandReference

Typecontinuously-variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)93.2 kWReference

PTO (tested)105.6 kWReference

Typeclosed center load-sensingReference

Rear valves4 or 5Reference

Mid valves3Reference

Pump flow112.8 lpmReference

Pump flow140.0 lpmReference

Pump flow159.0 lpmReference

Rear TypeIII/IIReference

Controlelectronic lower-link draft controlReference

Rear lift (at ends)5527 kgReference

Rear lift (at 24"/610mm)3651 kgReference

Rear lift (at 24"/610mm)4195 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540@1969Reference

Engine RPM1000@1924Reference

Front PTOindependentReference

Front PTO Type1000Reference

Power at rated PTO speed102.6 kWReference

Dimensions

Standard Wheelbase273 cmReference

Suspension Wheelbase278 cmReference

SuperSteer Wheelbase287 cmReference

Weight12787 to 13448 poundsReference

Front tire380/85R28Reference

Rear tire460/85R38Reference

Standard tires (ag)Front: 380/85R28. Rear: 460/85R38Reference

Length535 cmReference

Width243 cmReference

Height (cab)300 cmReference

Front axle4WDReference

Front axleSuspended 4WDReference

Front axleSuperSteer 4WDReference

Flange rear axleReference

Bar rear axle91 mmReference

Standard Shipping5800 kgReference

Suspension Shipping6100 kgReference

SuperSteer Shipping6080 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps150Reference

Charging amps200Reference

Battery volts12Reference

Capacities

Max capacity11000 kgReference

Test results

Diesel CVT 4WDJune 2015 - October 2016, Link: OCED Tractor Test 2966 fileReference

PTO performanceReference

Fuel use29.5 l/hourReference

Fuel use28.4 l/hourReference

Drawbar performanceReference

Pull at 10 KPHReference

Max pull6452 kgReference

Pull at 6.5 KPHReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
