Tractor · 2011Unverified

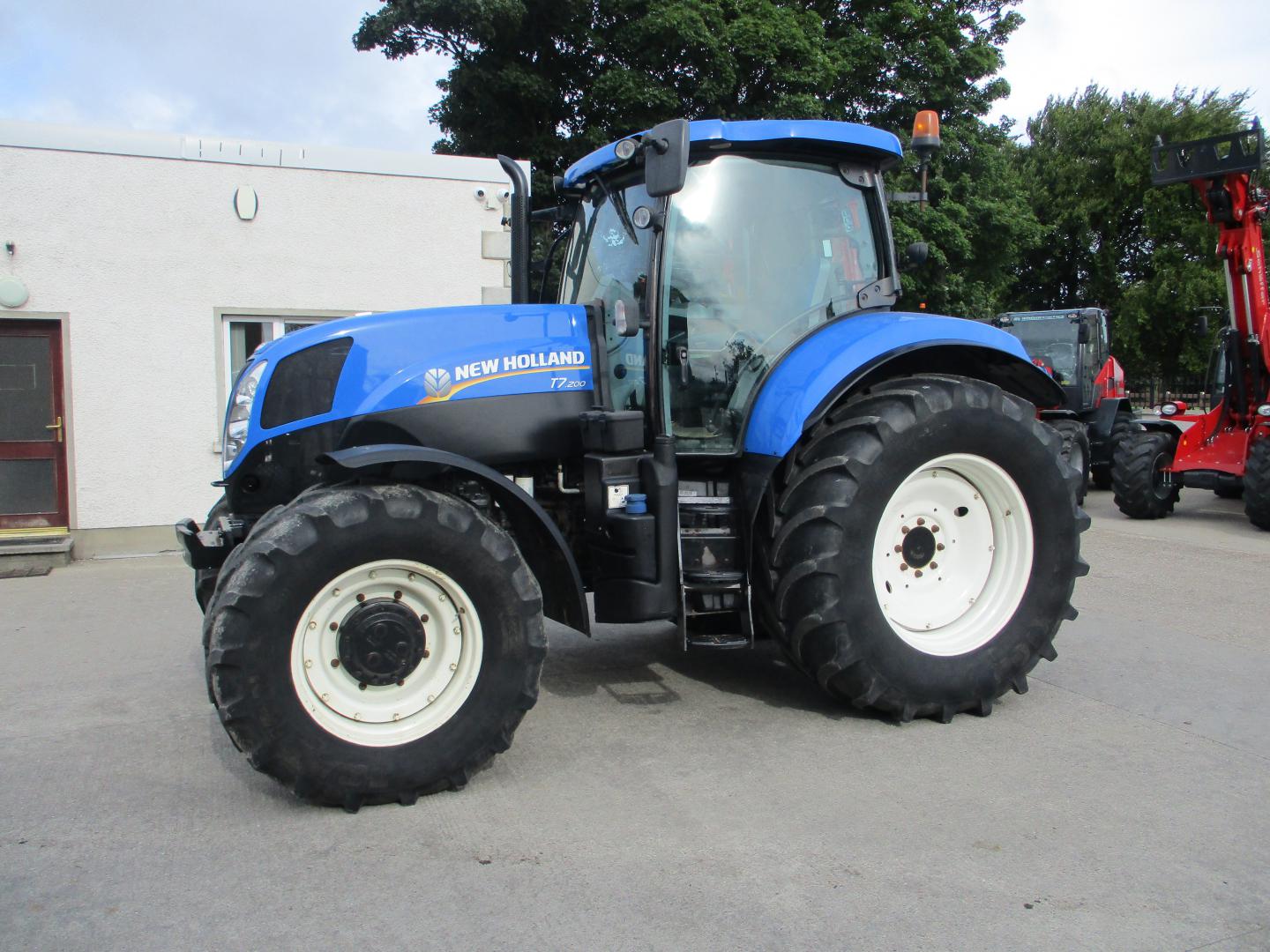

New Holland T7.200

Name: New Holland T7.200
Brand: New Holland

New Holland T7.200 — T7 Series · 155 hp. Reference specifications; pending source verification.

The New Holland T7.200 is a tractor with a rated power output of 155 hp, positioning it within the higher-powered segment of its class. Manufactured from 2011 to 2013, this model is equipped with a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, transmitting power through a four-wheel drive system with a continuously variable transmission. The listed operating weights are 12787 to 13448 pounds. It is designed for use on agricultural land of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

155 hp

Max power

116.1 kW

Weight

12787 to 13448 pounds

Catalogue coverage

Variants represented

Richest spec table

112 rows

Recorded power

155 hp

Transmissions

19-speed 6-speed power shift

Production years

2011-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Row-Crop tractorReference

Built in Basildon, EnglandReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Brakeshydraulic wet discReference

Brakesengine exhaust brake (optional)Reference

Trailer brakeshydraulic (optional)Reference

Trailer brakespneumatic (optional)Reference

Horizon cab standard with air-conditioning. Intellisteer optionalReference

Engine

FPT 6.7L 6-cyl dieselReference

Fuel tank329.3 LReference

Exhaust fluid (DEF)49.2 LReference

Engine (gross)115.6 kWReference

Engine (max)151.4 kWReference

Drawbar (tested)88.8 kWReference

FPTReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsInterim Tier 4Reference

Emission controlselective catalytic reduction (SCR)Reference

Rated Power (gross)115.6 kWReference

Maximum Power (gross)151.4 kWReference

Fuel systemhigh pressure common railReference

Cooling systemviscous fanReference

Cooling systemreversible fan (optional)Reference

Rated RPM2200Reference

Torque740.4 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Max power116.1 kWReference

Power at rated engine speed110.3 kWReference

Max power88.8 kWReference

Transmission

19-speed 6-speed power shiftReference

19-speed full power shiftReference

continuously-variable transmission (CVT)Reference

TransmissionRange CommandReference

Type6-speed power shiftReference

Gears19 forward and 6 reverseReference

Clutchhydraulic wet discReference

Six speeds (1-6) in three ranges (low, medium, high). Optional ECO 19th gear for road transport.Reference

TransmissionPower CommandReference

Typefull power shiftReference

Clutchelectro-hydraulic wet discReference

TransmissionAutoCommandReference

Typecontinuously-variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)96.9 kWReference

PTO (tested)116.1 kWReference

Typeclosed center load sensingReference

Rear valves3 to 5Reference

Mid valves3 (optional)Reference

Pump flow112.8 lpmReference

Pump flow124.9 lpmReference

Steering flow56.0 lpmReference

Rear TypeIIReference

Controlelectronic draft controlReference

Rear lift (at ends)5527 kgReference

Rear lift (at 24"/610mm)5362 kgReference

Rear Armsflex link endsReference

Front HitchoptionalReference

Front lift (at ends)3568 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Front PTOindependent (optional)Reference

Front PTO Type1000Reference

Power at rated PTO speed115.1 kWReference

Dimensions

Wheelbase273 cmReference

Wheelbase278 cmReference

Wheelbase287 cmReference

Weight12787 to 13448 poundsReference

Rear tire18.4R38Reference

Ag rear18.4R38Reference

Length535 cmReference

Width243 cmReference

Height (cab)304 cmReference

Height (exhaust)300 cmReference

Ground clearance52 cmReference

Front axle4WDReference

Front axleTerraLockReference

Front axleSuperSteerReference

Flange rear axleReference

Bar rear axle2489 mmReference

Bar rear axle2844 mmReference

Shipping5800 kgReference

Shipping6100 kgReference

Shipping6080 kgReference

New Holland T7.200 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Charging amps150 (optional)Reference

Charging amps200 (optional)Reference

Battery CCA960Reference

Battery volts12Reference

Battery AH132Reference

Attachment overview

New Holland 840TL loaderReference

New Holland 850TL loaderReference

Capacities

Max capacity11000 kgReference

Test results

Diesel 18-speed 4WDMay 2011 - August 2011, Link: OCED Tractor Test 2651 fileReference

PTO performanceReference

Fuel use30.7 l/hourReference

Fuel use30.3 l/hourReference

Fuel use31.0 l/hourReference

Drawbar performanceReference

Gear 3M used for power test.Reference

Max pull5914 kgReference

Gear 1M used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
