Tractor · 2011Unverified

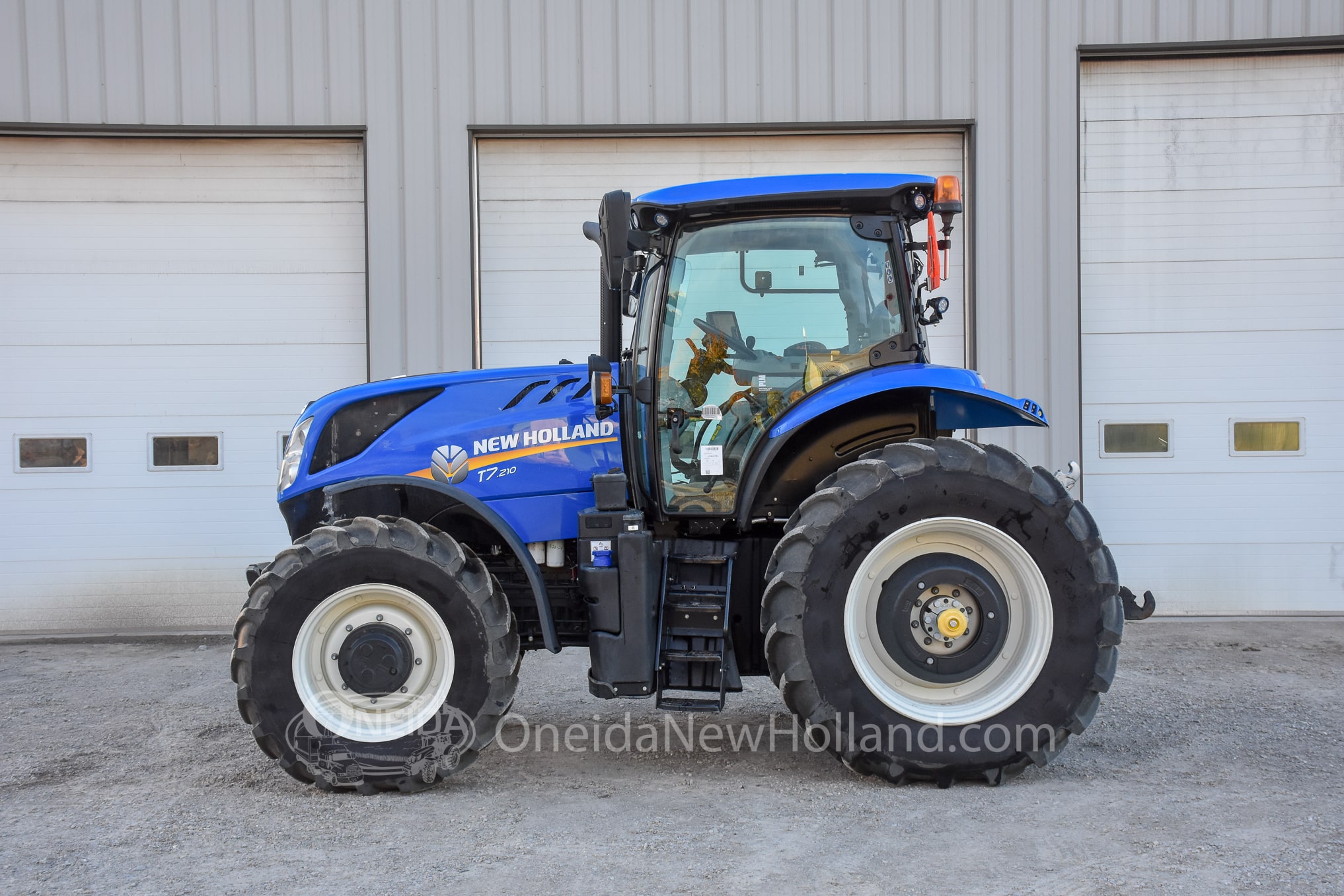

New Holland T7.210
New Holland T7.210 — Model year 2011-20132014-2024 · 165 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
165 hp
Max power
115.3 kW
Weight
13228 to 13889 pounds
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Row-Crop tractorReference
Built in Basildon, EnglandReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Brakeshydraulic wet discReference
Brakesengine exhaust brake (optional)Reference
Trailer brakeshydraulic (optional)Reference
Trailer brakespneumatic (optional)Reference
Horizon cab standard with air-conditioning. Intellisteer optionalReference
Engine
FPT 6.7L 6-cyl dieselReference
Fuel tank329.3 LReference
Exhaust fluid (DEF)49.2 LReference
Engine (gross)123.0 kWReference
Engine (max)158.1 kWReference
Drawbar (tested)88.9 kWReference
FPTReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsInterim Tier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Rated Power (gross)123.0 kWReference
Maximum Power (gross)158.1 kWReference
Fuel systemhigh pressure common railReference
Cooling systemviscous fanReference
Cooling systemreversible fan (optional)Reference
Rated RPM2200Reference
Torque766.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Max power115.3 kWReference
Power at rated engine speed110.8 kWReference
Max power88.9 kWReference
Transmission
19-speed 6-speed power shiftReference
19-speed full power shiftReference
continuously-variable transmission (CVT)Reference
TransmissionRange CommandReference
Type6-speed power shiftReference
Gears19 forward and 6 reverseReference
Clutchhydraulic wet discReference
Six speeds (1-6) in three ranges (low, medium, high). Optional ECO 19th gear for road transport.Reference
TransmissionPower CommandReference
Typefull power shiftReference
Clutchelectro-hydraulic wet discReference
TransmissionAutoCommandReference
Typecontinuously-variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)104.4 kWReference
PTO (tested)115.3 kWReference
Typeclosed center load sensingReference
Rear valves3 to 5Reference
Mid valves3 (optional)Reference
Pump flow112.8 lpmReference
Pump flow124.9 lpmReference
Steering flow56.0 lpmReference
Rear TypeIIReference
Controlelectronic draft controlReference
Rear lift (at ends)5527 kgReference
Rear lift (at 24"/610mm)5362 kgReference
Rear Armsflex link endsReference
Front HitchoptionalReference
Front lift (at ends)3568 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Front PTOindependent (optional)Reference
Front PTO Type1000Reference
Power at rated PTO speed114.7 kWReference
Dimensions
Wheelbase273 cmReference
Wheelbase278 cmReference
Wheelbase287 cmReference
Weight13228 to 13889 poundsReference
Rear tire18.4R38Reference
Ag rear18.4R38Reference
Length535 cmReference
Width243 cmReference
Height (cab)304 cmReference
Height (exhaust)300 cmReference
Ground clearance52 cmReference
Front axle4WDReference
Front axleTerraLockReference
Front axleSuperSteerReference
Flange rear axleReference
Bar rear axle2489 mmReference
Bar rear axle2844 mmReference
Shipping6000 kgReference
Shipping6300 kgReference
Shipping6280 kgReference
New Holland T7.210 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Charging amps150 (optional)Reference
Charging amps200 (optional)Reference
Battery CCA960Reference
Battery volts12Reference
Battery AH132Reference
Attachment overview
New Holland 840TL loaderReference
New Holland 850TL loaderReference
Capacities
Max capacity11000 kgReference
Test results
Diesel CVT 4WDApril 2011 - September 2011, Link: OCED Tractor Test 2654 fileReference
PTO performanceReference
Fuel use31.8 l/hourReference
Fuel use32.2 l/hourReference
Drawbar performanceReference
Fuel use32.9 l/hourReference
Pull at 9.5 KPHReference
Max pull6364 kgReference
Pull at 5.0 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
