Tractor · 2011Unverified

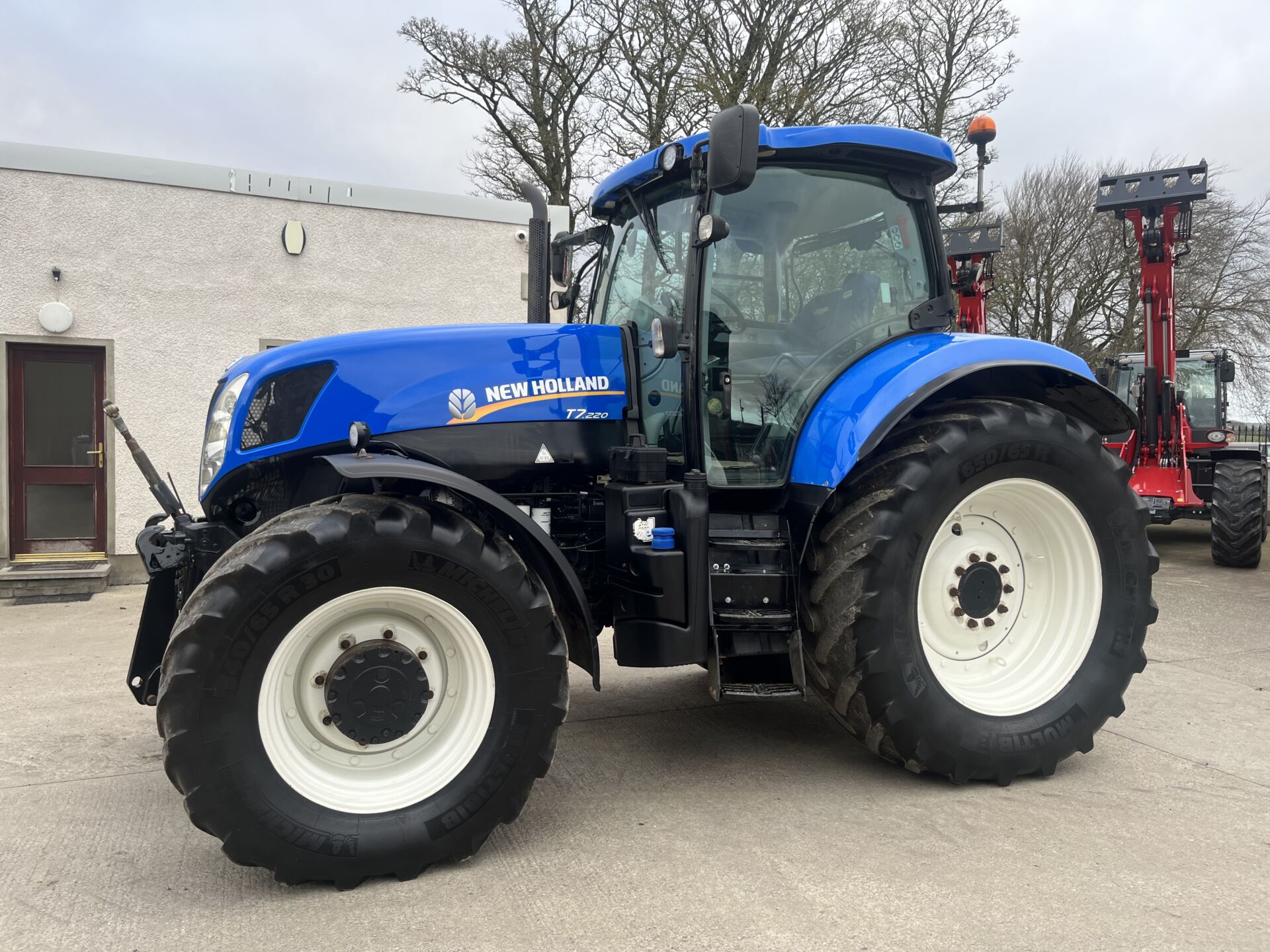

New Holland T7.220
New Holland T7.220 — T7 Series · 167 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
167 hp
Max power
128.4 kW
Weight
15322 to 16094 pounds
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Row-Crop tractorReference
Built in Basildon, EnglandReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Brakeshydraulic wet discReference
Brakesengine exhaust brake (optional)Reference
Trailer brakeshydraulic (optional)Reference
Trailer brakespneumatic (optional)Reference
Horizon cab standard with air-conditioning. Intellisteer optionalReference
Engine
FPT 6.7L 6-cyl dieselReference
Fuel tank393.6 LReference
Exhaust fluid (DEF)49.2 LReference
Engine (gross)124.5 kWReference
Engine (max)162.6 kWReference
Drawbar (tested)99.0 kWReference
FPTReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsInterim Tier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Rated Power (gross)124.5 kWReference
Maximum Power (gross)162.6 kWReference
Fuel systemhigh pressure common railReference
Cooling systemviscous fanReference
Cooling systemreversible fan (optional)Reference
Rated RPM2200Reference
Torque824.4 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Max power128.4 kWReference
Power at rated engine speed112.5 kWReference
Max power99.0 kWReference
Transmission
continuously-variable transmission (CVT)Reference
TransmissionAutoCommandReference
Typecontinuously-variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)100.7 kWReference
PTO (tested)128.4 kWReference
Typeclosed center load sensingReference
Rear valves3 to 5Reference
Mid valves3 (optional)Reference
Pump flow121.1 lpmReference
Pump flow149.5 lpmReference
Rear TypeIII/IIReference
Controlelectronic draft controlReference
Rear lift (at ends)5800 kgReference
Rear lift (at 24"/610mm)4874 kgReference
Rear Armsflex link endsReference
Front HitchoptionalReference
Front lift (at ends)3784 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540E/1000Reference
Rear PTO Type1000/1000EReference
Front PTOindependent (optional)Reference
Front PTO Type1000Reference
Power at rated PTO speed127.4 kWReference
Dimensions
Wheelbase288 cmReference
Wheelbase297 cmReference
Weight15322 to 16094 poundsReference
Rear tire20.8R42Reference
Ag rear20.8R42Reference
Length577 cmReference
Width246 cmReference
Height (cab)304 cmReference
Height (exhaust)311 cmReference
Ground clearance47 cmReference
Front axle4WDReference
Front axleTerraLockReference
Front axleSuperSteerReference
Flange rear axleReference
Bar rear axle2489 mmReference
Bar rear axle2844 mmReference
Bar rear axle3022 mmReference
Shipping6950 kgReference
Shipping7300 kgReference
Shipping7100 kgReference
New Holland T7.220 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Charging amps200 (optional)Reference
Battery CCA1300Reference
Battery volts12Reference
Battery AH176Reference
Attachment overview
New Holland 850TL loaderReference
New Holland 860TL loaderReference
Capacities
Max capacity13000 kgReference
Test results
Diesel 19-speed 4WDJanuary 2011 - March 2011, Link: OCED Tractor Test 2607 fileReference
PTO performanceReference
Fuel use33.3 l/hourReference
Fuel use32.2 l/hourReference
Fuel use33.7 l/hourReference
Drawbar performanceReference
Gear 9 used for power test.Reference
Max pull7804 kgReference
Gear 8 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
