Tractor · 2014Unverified

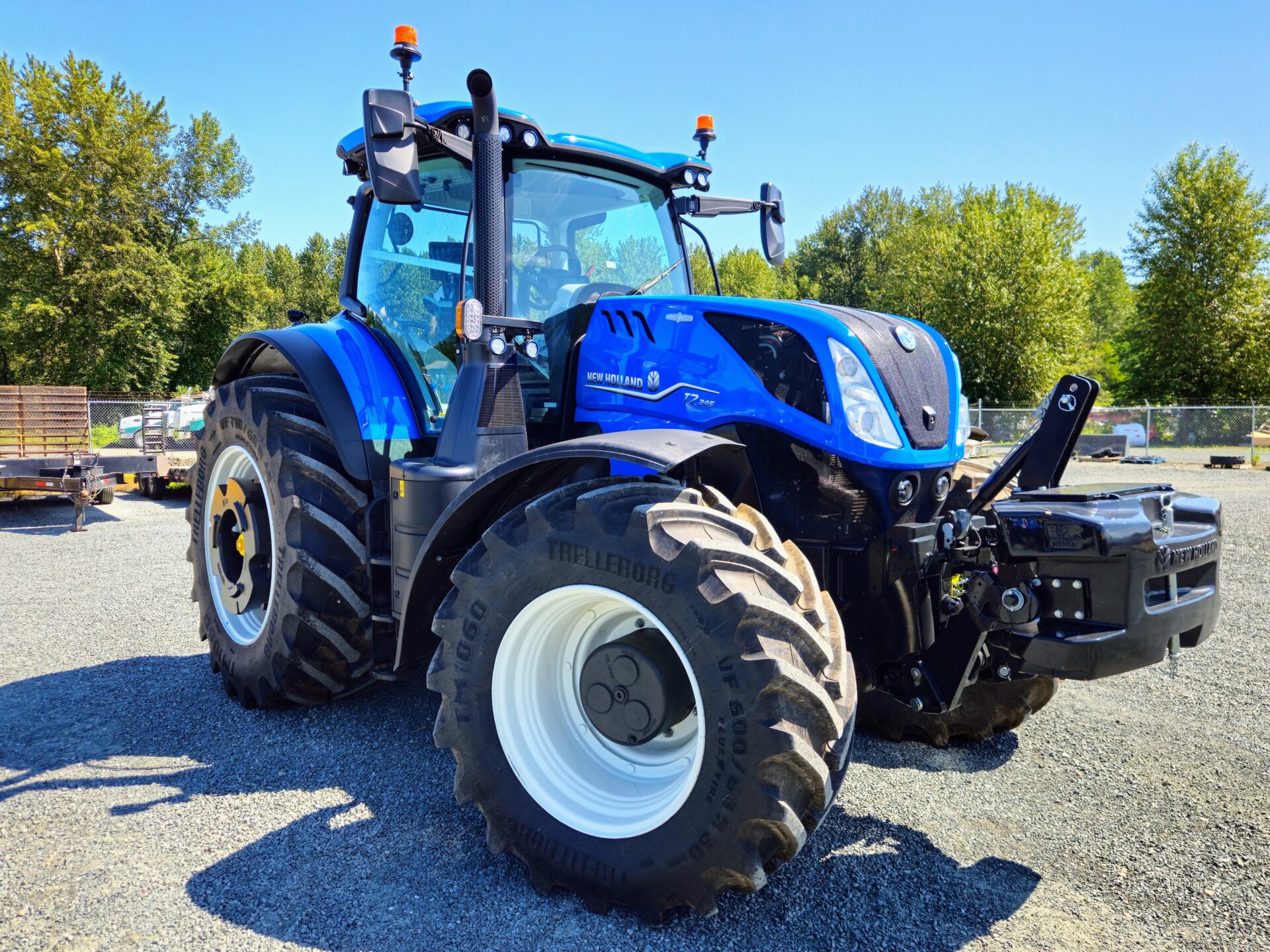

New Holland T7.245
New Holland T7.245 — T7 Series · 200 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
200 hp
Max power
142.7 kW
Weight
15322 to 16094 pounds
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Row-Crop tractorReference
Original price$186,367 (2017 18-speed )Reference
Original price$213,107 (2017 CVT )Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning. Optional Comfort Ride cab suspension.Reference
Engine
FPT 6.7L 6-cyl dieselReference
Fuel tank393.6 LReference
Exhaust fluid (DEF)49.2 LReference
Engine (gross)149.1 kWReference
Engine (max)182.7 kWReference
Drawbar (tested)104.9 kWReference
FPTReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reductionReference
Rated Power (gross)149.1 kWReference
Maximum Power (gross)182.7 kWReference
Fuel systemelectronic high-pressure common rail direct injectionReference
Cooling systemviscous fanReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Max power142.7 kWReference
Power at rated engine speed124.5 kWReference
Max power104.9 kWReference
Transmission
18-speed full power shiftReference
19-speed full power shiftReference
continuously-variable transmission (CVT)Reference
TransmissionPower CommandReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Gears19 forward and 6 reverseReference
TransmissionAuto CommandReference
Typecontinuously-variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)126.8 kWReference
PTO (tested)142.7 kWReference
Typeclosed center load-sensingReference
Rear valves4 or 5Reference
Mid valves3Reference
Pump flow121.1 lpmReference
Pump flow149.5 lpmReference
Pump flow170.3 lpmReference
Rear TypeIII/IIReference
Controlelectronic lower-link draft controlReference
Rear lift (at ends)5800 kgReference
Rear lift (at ends)7199 kgReference
Rear lift (at 24"/610mm)4286 kgReference
Rear lift (at 24"/610mm)4874 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1893Reference
Engine RPM540E@1569Reference
Engine RPM1000@1950Reference
Engine RPM1000E@1583Reference
Front PTOindependentReference
Front PTO Type1000Reference
Power at rated PTO speed142.0 kWReference
Dimensions
Standard Wheelbase288 cmReference
Suspension Wheelbase288 cmReference
SuperSteer Wheelbase297 cmReference
Weight15322 to 16094 poundsReference
Front tire380/85R34Reference
Rear tire480/80R46Reference
Standard tires (ag)Front: 380/85R34. Rear: 480/80R46Reference
Length577 cmReference
Width246 cmReference
Height (cab)311 cmReference
Front axle4WDReference
Front axleSuspended 4WDReference
Front axleSuperSteer 4WDReference
Flange rear axleReference
Bar rear axle91 mmReference
Standard Shipping6950 kgReference
Suspension Shipping7300 kgReference
SuperSteer Shipping7100 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Charging amps200Reference
Battery volts12Reference
Capacities
Max capacity13000 kgReference
Test results
Diesel CVT 4WDJune 2015 - April 2016, Link: OCED Tractor Test 2969 fileReference
PTO performanceReference
Fuel use39.4 l/hourReference
Fuel use37.1 l/hourReference
Drawbar performanceReference
Fuel use37.5 l/hourReference
Pull at 10 KPHReference
Max pull7883 kgReference
Pull at 6.5 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
