Tractor · 2011Unverified

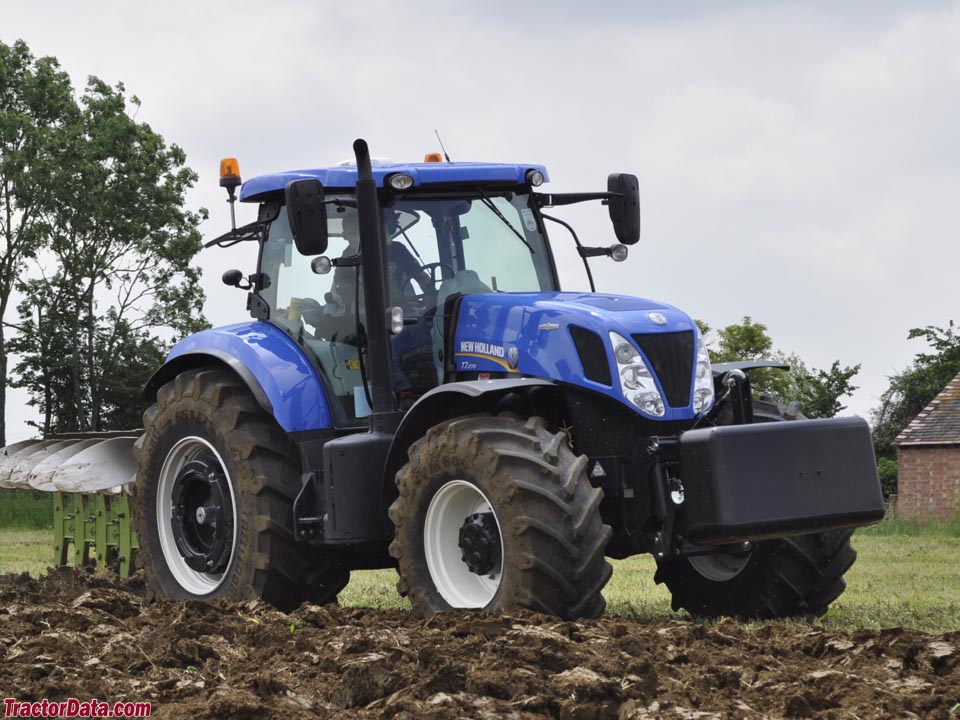

New Holland T7.270

Name: New Holland T7.270
Brand: New Holland

New Holland T7.270 — Model year 2011-20132014-2024 · 228 hp. Reference specifications; pending source verification.

The New Holland T7.270 is a tractor with a rated output of 228 hp, categorising it within the higher-powered machines in its class. It was manufactured from 2011 to 2024, and it is equipped with a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, driving through four-wheel drive via a continuously variable transmission. The listed weight of the T7.270 ranges from 15322 to 16094 pounds, and it is designed for use on areas of approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

228 hp

Max power

162.9 kW

Weight

15322 to 16094 pounds

Catalogue coverage

Variants represented

Richest spec table

102 rows

Recorded power

228 hp

Transmissions

continuously-variable transmission (CVT)

Production years

2011-2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Row-Crop tractorReference

Built in Basildon, EnglandReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Brakeshydraulic wet discReference

Brakesengine exhaust brake (optional)Reference

Trailer brakeshydraulic (optional)Reference

Trailer brakespneumatic (optional)Reference

Horizon cab standard with air-conditioning. Intellisteer optionalReference

Engine

FPT 6.7L 6-cyl dieselReference

Fuel tank393.6 LReference

Exhaust fluid (DEF)49.2 LReference

Engine (gross)170.0 kWReference

Engine (max)200.6 kWReference

Drawbar (tested)123.2 kWReference

FPTReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsInterim Tier 4Reference

Emission controlselective catalytic reduction (SCR)Reference

Rated Power (gross)170.0 kWReference

Maximum Power (gross)200.6 kWReference

Fuel systemhigh pressure common railReference

Cooling systemviscous fanReference

Cooling systemreversible fan (optional)Reference

Rated RPM2200Reference

Torque1476.7 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Max power162.9 kWReference

Power at rated engine speed146.1 kWReference

Max power123.2 kWReference

Transmission

continuously-variable transmission (CVT)Reference

TransmissionAutoCommandReference

Typecontinuously-variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)145.4 kWReference

PTO (tested)162.9 kWReference

Typeclosed center load sensingReference

Rear valves3 to 5Reference

Mid valves3 (optional)Reference

Pump flow121.1 lpmReference

Pump flow149.5 lpmReference

Steering flow64.3 lpmReference

Rear TypeIII/IIReference

Controlelectronic draft controlReference

Rear lift (at ends)5800 kgReference

Rear lift (at 24"/610mm)4874 kgReference

Rear Armsflex link endsReference

Front HitchoptionalReference

Front lift (at ends)3784 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540E/1000Reference

Rear PTO Type1000/1000EReference

Front PTOindependent (optional)Reference

Front PTO Type1000Reference

Power at rated PTO speed160.0 kWReference

Dimensions

Wheelbase288 cmReference

Wheelbase297 cmReference

Weight15322 to 16094 poundsReference

Rear tire20.8R42Reference

Ag rear20.8R42Reference

Length577 cmReference

Width246 cmReference

Height (cab)304 cmReference

Height (exhaust)311 cmReference

Ground clearance47 cmReference

Front axle4WDReference

Front axleTerraLockReference

Front axleSuperSteerReference

Flange rear axleReference

Bar rear axle2489 mmReference

Bar rear axle2844 mmReference

Bar rear axle3022 mmReference

Shipping6950 kgReference

Shipping7300 kgReference

Shipping7100 kgReference

New Holland T7.270 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps150Reference

Charging amps200 (optional)Reference

Battery CCA1300Reference

Battery volts12Reference

Battery AH176Reference

Capacities

Max capacity13000 kgReference

Test results

Diesel CVT 4WDJanuary 2011 - May 2011, Link: OCED Tractor Test 2647 fileReference

PTO performanceReference

Fuel use43.9 l/hourReference

Fuel use42.0 l/hourReference

Fuel use43.5 l/hourReference

Drawbar performanceReference

Fuel use42.8 l/hourReference

Pull at 9.5 KPHReference

Max pull8278 kgReference

Pull at 5.0 KPHReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
