Tractor · 2016Unverified

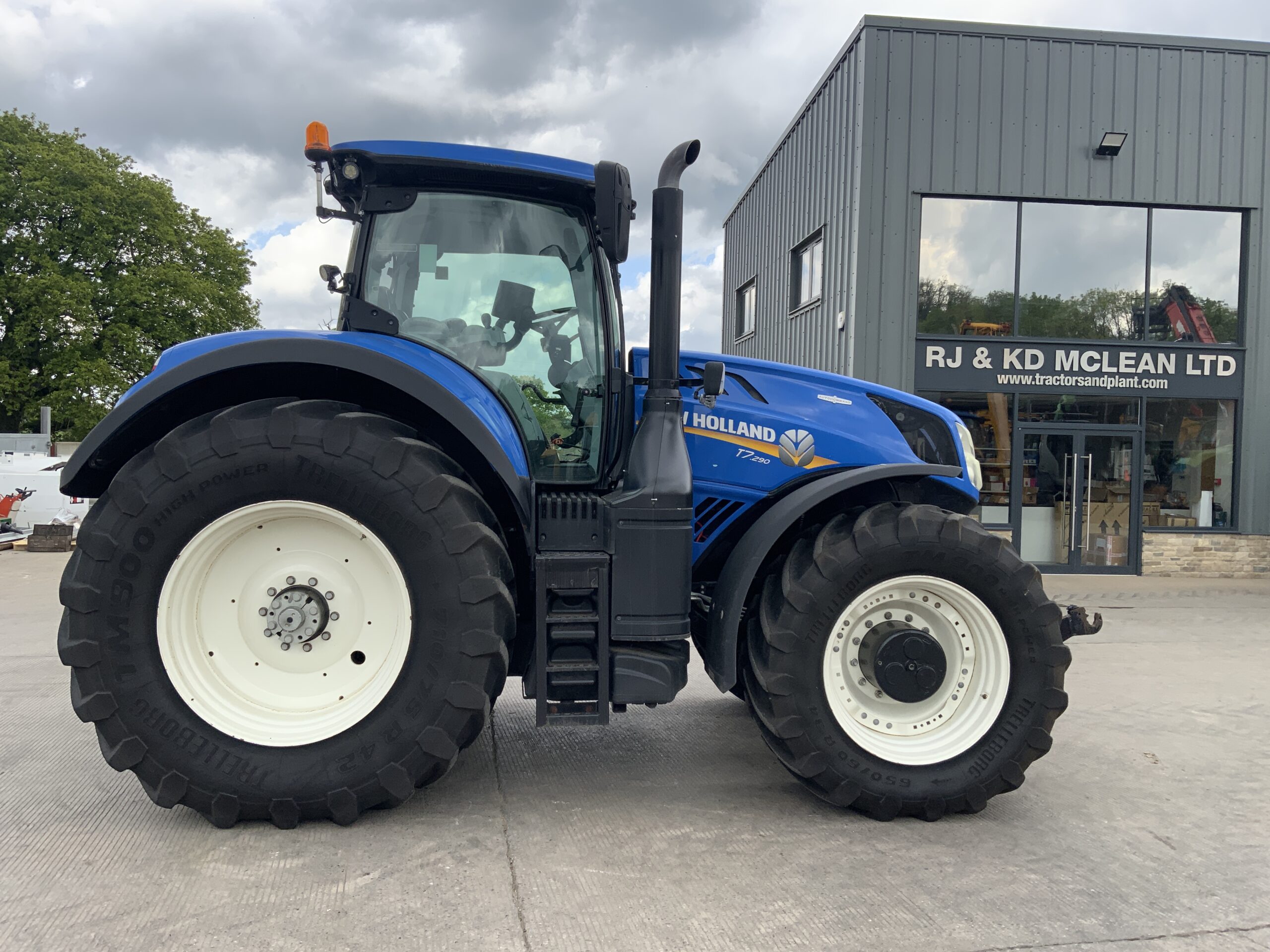

New Holland T7.290

Name: New Holland T7.290
Brand: New Holland

New Holland T7.290 — T7 Series · 270 hp. Reference specifications; pending source verification.

The New Holland T7.290 is a tractor with a rated power output of 270 horsepower, positioning it within the higher power bracket of its class. First introduced in 2016, this model utilises a 6-cylinder turbocharged diesel liquid-cooled engine, complemented by four-wheel drive and a continuously variable transmission. The tractor's operating weight is listed at 10,299 kg, suitable for large-scale operations spanning 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

270 hp

Max power

201.4 kW

Weight

10299 kg

Catalogue coverage

Variants represented

Richest spec table

87 rows

Recorded power

270 hp

Recorded weight

10299 kg

Transmissions

continuously-variable transmission (CVT)

Production years

2016-2016

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Row-Crop tractorReference

Built in St. Valentin, AustriaReference

Original price was $272,739 in 2017Reference

Four-wheel driveReference

Final drivesinboard planetaryReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning. Optional Comfort Ride cab suspension.Reference

Variants

Optum 270similar CaseIH modelReference

Engine

FPT 6.7L 6-cyl dieselReference

Fuel tank628.3 LReference

Exhaust fluid (DEF)94.6 LReference

Engine (gross)201.3 kWReference

Engine (max)216.3 kWReference

Drawbar (tested)150.9 kWReference

FPTReference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier IVReference

Emission controlselective catalytic reductionReference

Rated Power (gross)201.3 kWReference

Maximum Power (gross)216.3 kWReference

Fuel systemelectronic high-pressure common rail direct injectionReference

Cooling systemviscous fanReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Max power201.4 kWReference

Power at rated engine speed183.8 kWReference

Max power150.9 kWReference

Transmission

continuously-variable transmission (CVT)Reference

TransmissionAuto CommandReference

Typecontinuously-variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)179.0 kWReference

PTO (tested)201.4 kWReference

Typeclosed center load-sensingReference

Rear valves4 or 5Reference

Mid valves3Reference

Pump flow164.6 lpmReference

Pump flow219.5 lpmReference

Rear TypeIIIReference

Rear TypeIVNReference

Controlelectronic lower-link draft controlReference

Rear lift (at 24"/610mm)8700 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540@1930Reference

Engine RPM540E@1598Reference

Engine RPM1000@1853Reference

Engine RPM1000E@1583Reference

Front PTOindependentReference

Front PTO Type1000Reference

Power at rated PTO speed200.0 kWReference

Dimensions

Wheelbase299 cmReference

Weight10299 kgReference

Front tire420/85R24Reference

Rear tire480/80R50Reference

Standard tires (ag)Front: 420/85R24. Rear: 480/80R50Reference

Length528 cmReference

Width248 cmReference

Height (cab)336 cmReference

Shipping weight10299 kgReference

Max weight16000 kgReference

Front axleSuspended 4WDReference

Flange rear axleReference

Bar rear axle104 by 2489 mmReference

Bar rear axle104 by 2844 mmReference

Bar rear axle104 by 3022 mmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps150Reference

Charging amps200Reference

Battery volts12Reference

Test results

Diesel CVT 4WDJune 2016 - July 2016, Link: OCED Tractor Test 2986 fileReference

PTO performanceReference

Fuel use51.5 l/hourReference

Fuel use48.4 l/hourReference

Drawbar performanceReference

Fuel use49.2 l/hourReference

Pull at 7.5 KPHReference

Max pull86 kgReference

Pull at 6.0 KPHReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
