Tractor · 2007Unverified

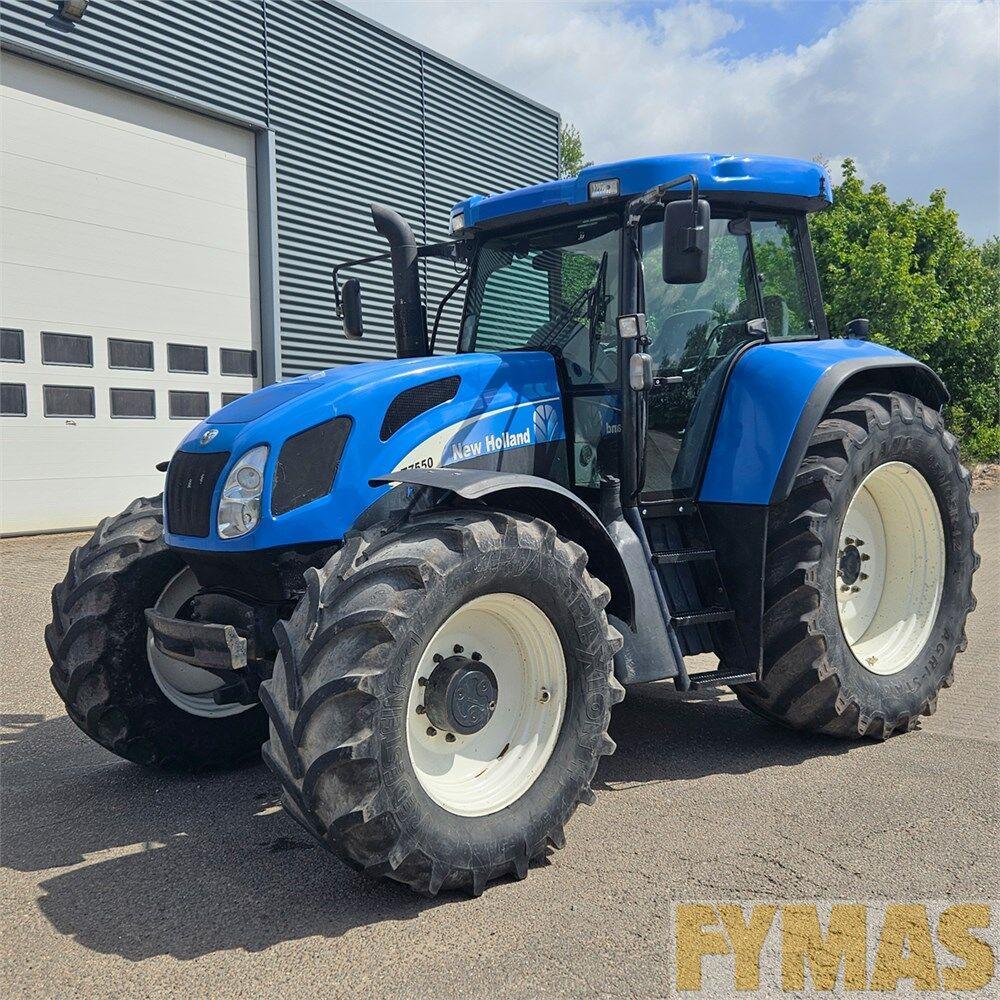

New Holland T7550

Name: New Holland T7550
Brand: New Holland

New Holland T7550 — T7500 Series · 194 hp. Reference specifications; pending source verification.

The New Holland T7550 is a tractor with a rated output of 194 horsepower, positioning it within the higher-powered machines in its class. Manufactured in 2007, the T7550 features a 6-cylinder turbocharged intercooled liquid-cooled engine, which transmits power through a four-wheel drive system with a continuously variable transmission. Weighing 6772 kg, it is designed for use on areas of approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

194 hp

Max power

194 hp

Weight

6772 kg

Catalogue coverage

Variants represented

Richest spec table

59 rows

Recorded power

194 hp

Recorded weight

6772 kg

Transmissions

Continuously variable (CVT)

Production years

2007-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Four-wheel driveReference

cab with A/CReference

Engine

6.6L 6-cylReference

Fuel tank310.0 LReference

Engine144.7 kWReference

intercooled turbochargedReference

6-cylinderReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke108 x 120 mmReference

Power144.7 kWReference

Rated RPM2100Reference

Torque792.0 NmReference

Torque RPM1500Reference

No of Cylinders6 cylinderReference

Rated engine speed2,100 rpmReference

Engine torque at rated speed264.9 kgReference

Bore and stroke4.252x4.724 inchesReference

Cooling systemliquid-cooledReference

PTO & Hydraulics

Typeclosed center load sensingReference

Pressure205.0 barReference

Valves0 to 5Reference

Pump flow129.8 lpmReference

Rear PTO Type540/540E/1000/1000EReference

Front PTO Type1000Reference

Dimensions

Wheelbase283 cmReference

Weight6772 kgReference

Front tire540/65Reference

Rear tire650/65Reference

Ag front540/65 R28Reference

Ag rear650/65 R38Reference

Length476 cmReference

Width248 cmReference

Height299 cmReference

Shipping weight6772 kgReference

Ground clearance50 cmReference

Transmission

TransmissionContinuously variable (CVT)Reference

Gearsinfinite, 3-range forward and reverseReference

Transmission TypeCVTReference

Wheel Drive4WDReference

Capacities

Capacity402.8 ciReference

Power

Max Power194 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 rpmReference

Front PTO PowerAvailableReference

General

Cruise controlAvailableReference

SCV controlJoystickReference

Hydraulics

Hydraulics Typeclosed center load sensingReference

Maximum operating pressure2,973 psiReference

Remote Valves0 to 5 valvesReference

Dimensions & weight

Overall Height300 cmReference

Overall Length476.5 cmReference

Overall Width248.9 cmReference

Overall weight6,772.1 kgReference

Wheels & tyres

Rear Wheel Type650/65 R38Reference

Front Wheel Type540/65 R28Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
