Tractor · 2007Unverified

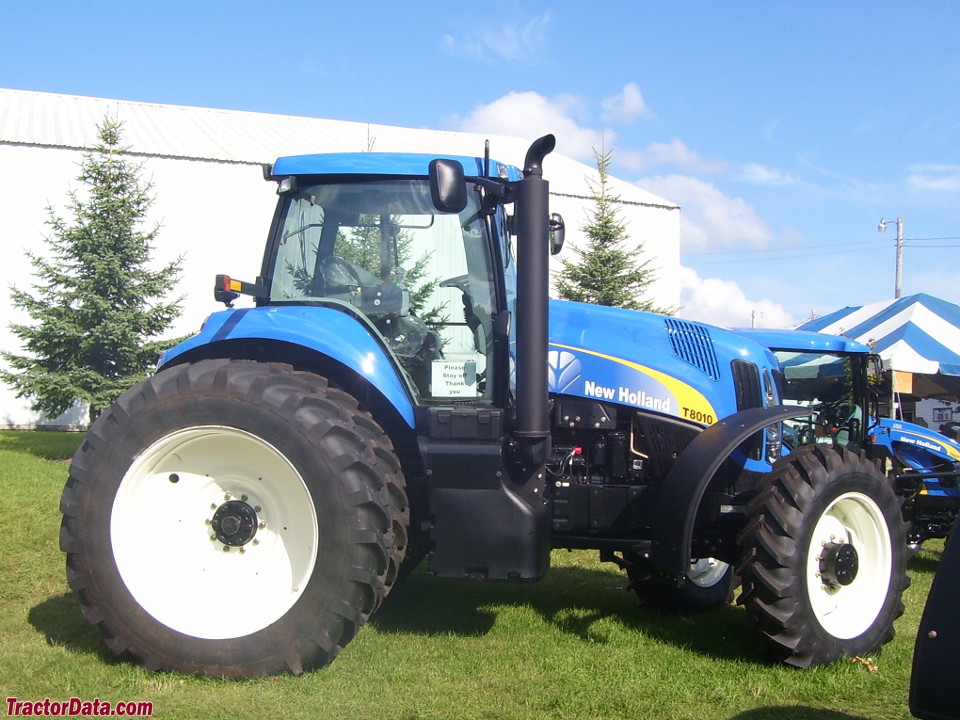

New Holland T8010

Name: New Holland T8010
Brand: New Holland

New Holland T8010 — T8000 Series · 178 hp. Reference specifications; pending source verification.

The New Holland T8010 is a tractor with a rated output of 178 hp, positioning it within the higher-powered machines of its class. It was manufactured from 2007 to 2010 and features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, which powers a four-wheel drive system through a powershift transmission. The tractor's listed weight ranges from 19752 to 21150 pounds. It is designed for use on areas of approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

178 hp

Max power

159.4 kW

Weight

19752 to 21150 pounds

Catalogue coverage

Variants represented

Richest spec table

100 rows

Recorded power

178 hp

Transmissions

19-speed full power shift

Production years

2007-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with heat and air-conditioning. Optional luxury cab with leather seats, tinted windows, and sunscreens.Reference

Engine

New Holland 8.3L 6-cyl dieselReference

Fuel tank681.3 LReference

Engine164.8 kWReference

Drawbar (tested)115.3 kWReference

New HollandReference

intercooled turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.3 LReference

Bore/Stroke114 x 135 mmReference

Power164.8 kWReference

Compression17.5:1Reference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Max power159.4 kWReference

Power at rated engine speed132.7 kWReference

Max power115.3 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 RPMReference

Bore and stroke4.488x5.315 inchesReference

Compression ratio17.5:1Reference

Cooling systemliquid-cooledReference

Transmission

19-speed full power shiftReference

23-speed full power shiftReference

Typefull power shiftReference

Gears19 forward and 4 reverseReference

Clutchelectro-hydraulic wet discReference

Gears23 forward and 6 reverseReference

Transmission TypePowershiftReference

forward and reverse optionsfull power shift 19-F and 4-R |full power shift - 23-F and 6-RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)130.5 kWReference

PTO (tested)159.4 kWReference

Valves3 to 5Reference

Total flow166.5 lpmReference

Total flow283.9 lpmReference

Rear TypeIIIN/IIIReference

Rear lift6388 kgReference

Rear lift7427 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1988Reference

Engine RPM1000@1984Reference

Power at rated PTO speed159.1 kWReference

Dimensions

Weight19752 to 21150 poundsReference

Front tire16.9R30Reference

Rear tire20.8R42Reference

Ag front16.9R30Reference

Ag rear20.8R42Reference

Shipping8959 kgReference

Shipping9322 kgReference

Shipping9137 kgReference

Operating9593 kgReference

Ballasted11015 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps150Reference

Charging amps175Reference

Battery volts12Reference

Capacities

Max capacity12020 kgReference

Capacity506.5 ciReference

Test results

Diesel 19-speed 4WDMay 4 - 18, 2007Link: OCED Tractor Test 1900 fileReference

PTO performanceReference

Fuel use49.2 l/hourReference

Fuel use43.9 l/hourReference

Fuel use50.7 l/hourReference

Drawbar performanceReference

Fuel use44.3 l/hourReference

Gear 7 used for power test.Reference

Max pull10890 kgReference

Gear 2 used for pull test.Reference

General

Make & ModelNew HollandReference

Cruise controlAvailableReference

Country of manufacturerUSAReference

PTO

PTO Power175 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed1,000@1,984 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)75 gpmReference

Remote Valves3 to 5 ValvesReference

Rear Hitch category (SAE designation)Category IIIN/IIIReference

Rear Hitch maximum lift capacity7,427.6 kgReference

Dimensions & weight

Overall weight9,322.2 kgReference

Wheels & tyres

Rear Wheel Type20.8R42Reference

Front Wheel Type16.9R30Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
