Tractor · 2007Unverified

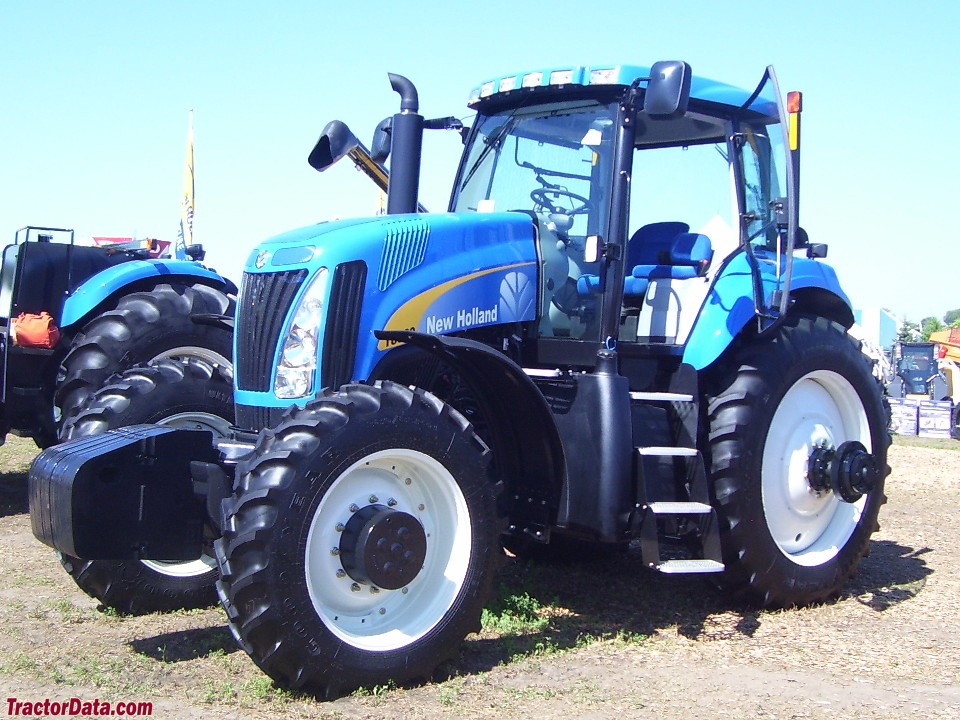

New Holland T8030

Name: New Holland T8030
Brand: New Holland

New Holland T8030 — T8000 Series · 270 hp. Reference specifications; pending source verification.

The New Holland T8030 is a tractor with a rated output of 270 hp, positioning it among the higher-powered machines in its class. It was manufactured from 2007 to 2010. The tractor is equipped with a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with a powershift transmission that drives through four-wheel drive. Its listed weight ranges from 20370 to 21535 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

270 hp

Max power

203.5 kW

Weight

20370 to 21535 pounds

Catalogue coverage

Variants represented

Richest spec table

111 rows

Recorded power

270 hp

Transmissions

19-speed full power shift

Production years

2007-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with heat and air-conditioning. Optional luxury cab with leather seats, tinted windows, and sunscreens.Reference

Engine

New Holland 8.3L 6-cyl dieselReference

Fuel tank681.3 LReference

Engine (gross)201.0 kWReference

Engine (max)226.0 kWReference

Drawbar (tested)141.2 kWReference

New HollandReference

intercooled turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.3 LReference

Bore/Stroke114 x 135 mmReference

Rated Power (gross)201.0 kWReference

Maximum Power (gross)226.0 kWReference

Air cleanerdual paper elementsReference

Compression17.5:1Reference

Rated RPM2200Reference

Torque1285.5 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Max power203.5 kWReference

Power at rated engine speed168.4 kWReference

Max power141.2 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 RPMReference

Engine torque at rated speed430 kgReference

Bore and stroke4.488x5.315 inchesReference

Compression ratio17.5:1Reference

Cooling systemliquid-cooledReference

Transmission

19-speed full power shiftReference

23-speed full power shiftReference

Typefull power shiftReference

Gears19 forward and 4 reverseReference

Clutchelectro-hydraulic wet discReference

Gears23 forward and 6 reverseReference

Transmission TypePowershiftReference

forward and reverse optionsfull power shift 19-F and 4-R |full power shift 23-F and 6-RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)167.8 kWReference

PTO (tested)203.5 kWReference

Typeclosed center load sensingReference

Pressure224.0 barReference

Valves3 to 5Reference

Pump flow146.1 lpmReference

Rear TypeIIIN/IIIReference

Rear lift6887 kgReference

Rear lift8133 kgReference

Front lift6368 kgReference

Front lift6459 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1988Reference

Engine RPM1000@1984Reference

Power at rated PTO speed200.4 kWReference

Dimensions

Wheelbase307 cmReference

Wheelbase328 cmReference

Weight20370 to 21535 poundsReference

Length582 cmReference

Width248 cmReference

Height332 cmReference

Shipping9239 kgReference

Shipping9351 kgReference

Shipping9602 kgReference

Operating9768 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps150Reference

Charging amps175Reference

Battery volts12Reference

Capacities

Max capacity14742 kgReference

Capacity506.5 ciReference

Test results

Diesel 19-speed 4WDNovember 1 - 14, 2007Link: OCED Tractor Test 1914 fileReference

PTO performanceReference

Fuel use59.4 l/hourReference

Fuel use54.1 l/hourReference

Drawbar performanceReference

Fuel use53.7 l/hourReference

Gear 9 used for power test.Reference

Max pull9400 kgReference

Gear 5 used for pull test.Reference

General

Make & ModelNew HollandReference

Cruise controlAvailableReference

Country of manufacturerUSAReference

Power

Rated Power269.6 hpReference

PTO

PTO Power225 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed1,000@1,984 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typepowerReference

Hydraulics

Hydraulics Typeclosed center load sensingReference

Maximum operating pressure3,249 psiReference

Remote Valves3 to 5 ValvesReference

Rear Hitch category (SAE designation)Category IIIN/IIIReference

Rear Hitch maximum lift capacity6,886.9 kgReference

Dimensions & weight

Overall Height333 cmReference

Overall Length582.9 cmReference

Overall Width248.9 cmReference

Overall weight9,602.5 kgReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
