Tractor · 2007Unverified

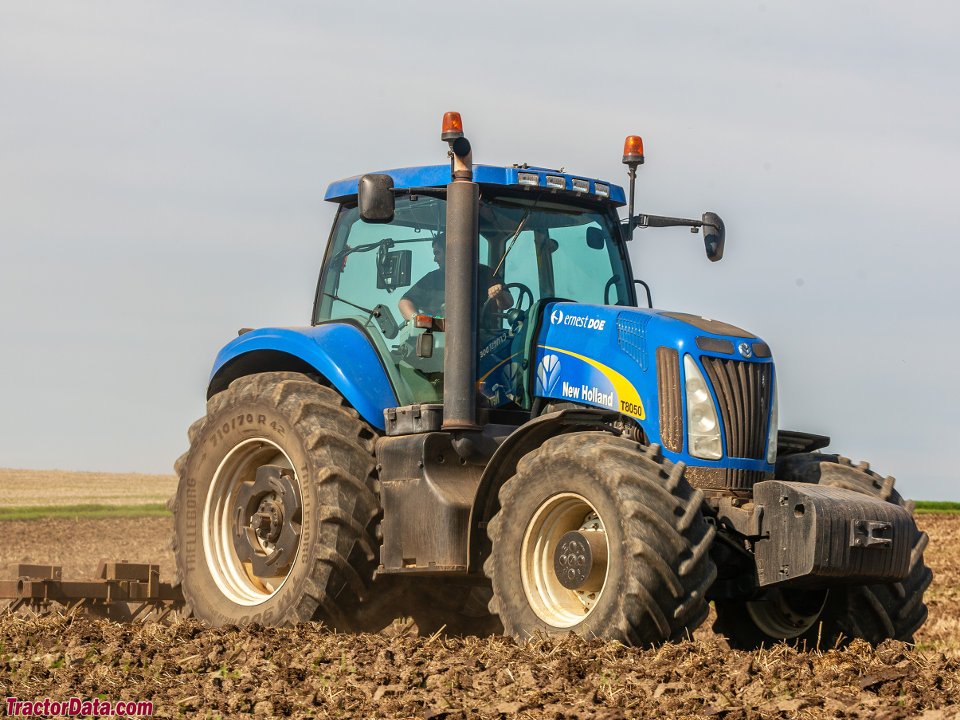

New Holland T8050

Name: New Holland T8050
Brand: New Holland

New Holland T8050 — T8000 Series · 321 hp. Reference specifications; pending source verification.

The New Holland T8050 is a high-output tractor model with a rated engine power of 321 horsepower. It was manufactured from 2007 to 2010 and features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine. The tractor is equipped with a four-wheel drive system and a powershift transmission. Its listed weight ranges from 20370 to 24095 pounds, making it suitable for applications of approximately 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

321 hp

Max power

231.9 kW

Weight

20370 to 24095 pounds

Catalogue coverage

Variants represented

Richest spec table

100 rows

Recorded power

321 hp

Transmissions

19-speed full power shift

Production years

2007-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with heat and air-conditioning. Optional luxury cab with leather seats, tinted windows, and sunscreens.Reference

Engine

New Holland 8.9L 6-cyl dieselReference

Fuel tank681.3 LReference

Engine (gross)239.0 kWReference

Engine (max)263.0 kWReference

Drawbar (tested)175.0 kWReference

New HollandReference

intercooled turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.9 LReference

Bore/Stroke114 x 145 mmReference

Rated Power (gross)239.0 kWReference

Maximum Power (gross)263.0 kWReference

Compression17.6:1Reference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Max power231.9 kWReference

Power at rated engine speed205.0 kWReference

Max power175.0 kWReference

Fuel TypeDieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 RPMReference

Bore and stroke4.488x5.689 inchesReference

Compression ratio17.6:1Reference

Cooling systemliquid-cooledReference

Transmission

19-speed full power shiftReference

23-speed full power shiftReference

Typefull power shiftReference

Gears19 forward and 4 reverseReference

Clutchelectro-hydraulic wet discReference

Gears23 forward and 6 reverseReference

Transmission TypePowershiftReference

forward and reverse optionsfull power shift - 19F and 4R |full power shift - 23F and 6RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)201.3 kWReference

PTO (tested)231.9 kWReference

Valves3 to 5Reference

Total flow166.5 lpmReference

Total flow283.9 lpmReference

Rear TypeIVN/IIIReference

Rear lift8432 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1988Reference

Engine RPM1000@1984Reference

Power at rated PTO speed231.9 kWReference

Dimensions

Wheelbase328 cmReference

Weight20370 to 24095 poundsReference

Front tire16.9R30Reference

Rear tire20.8R42Reference

Ag front16.9R30Reference

Ag rear20.8R42Reference

Shipping9239 kgReference

Shipping9351 kgReference

Shipping9602 kgReference

Operating10929 kgReference

Ballasted15649 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps150Reference

Charging amps175Reference

Battery volts12Reference

Capacities

Max capacity15649 kgReference

Capacity540 ciReference

Test results

Diesel 19-speed 4WDSeptember 19 - 29, 2008Link: OCED Tractor Test 1937 fileReference

PTO performanceReference

Fuel use68.9 l/hourReference

Fuel use64.0 l/hourReference

Drawbar performanceReference

Fuel use63.6 l/hourReference

Gear 7 used for power test.Reference

Max pull11141 kgReference

Gear 3 used for pull test.Reference

General

Make & ModelNew HollandReference

Cruise controlAvailableReference

Country of manufacturerUSAReference

Power

Rated Power320.5 hpReference

PTO

PTO Power270 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed540@1,988 | 1,000@1,984 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)75 gpmReference

Remote Valves3 to 5 ValvesReference

Rear Hitch category (SAE designation)Category IVN/IIIReference

Rear Hitch maximum lift capacity8,432.3 kgReference

Dimensions & weight

Overall weight9,602.5 kgReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
