Tractor · 2011Unverified

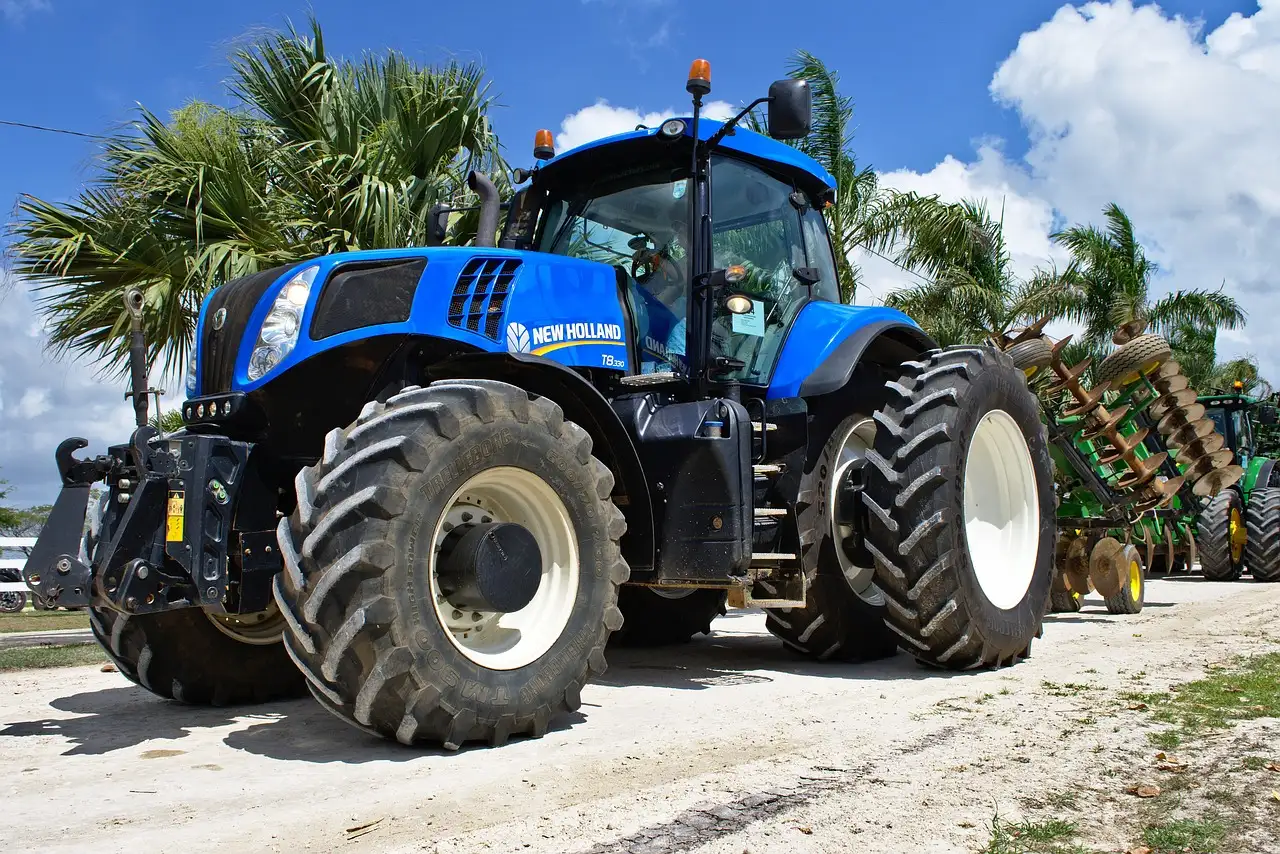

New Holland T8.275

Name: New Holland T8.275
Brand: New Holland

New Holland T8.275 — Model year 2011-20122013-2014 · 235 hp. Reference specifications; pending source verification.

The New Holland T8.275 is a high-powered tractor with a rating of 235 hp, positioning it among the more powerful models in its class. Manufactured from 2011 to 2014, this tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, coupled with a powershift transmission and four-wheel drive. The listed weight ranges from 23862 to 24662 pounds. It is designed for use in areas of around 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

235 hp

Max power

174.5 kW

Weight

23862 to 24662 pounds

Catalogue coverage

Variants represented

Richest spec table

78 rows

Recorded power

235 hp

Transmissions

19-speed full power shift

Production years

2011-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard.Reference

Variants

Magnum 235similar CaseIH modelReference

Engine

FPT 8.7L 6-cyl dieselReference

Fuel tank635.9 LReference

Exhaust fluid (DEF)90.8 LReference

Engine (gross)175.2 kWReference

Engine (max)192.4 kWReference

Drawbar (tested)128.8 kWReference

FPTReference

turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement8.7 LReference

Bore/Stroke117 x 135 mmReference

EmissionsInterim Tier 4Reference

Emission controlselective catalytic reduction (SCR)Reference

Rated Power (gross)175.2 kWReference

Maximum Power (gross)192.4 kWReference

Maximum Power (gross)204.3 kWReference

Rated RPM2000Reference

Starter typeelectricReference

Max power174.5 kWReference

Power at rated engine speed148.3 kWReference

Max power128.8 kWReference

Transmission

19-speed full power shiftReference

18-speed full power shiftReference

23-speed creeperReference

Typefull power shiftReference

Gears19 forward and 4 reverseReference

Gears18 forward and 4 reverseReference

TypecreeperReference

Gears23 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)145.4 kWReference

PTO (tested)174.5 kWReference

Typeclosed center load sensingReference

Rear valves4 to 6Reference

Pump flow132.5 lpmReference

Total flow160.9 lpmReference

Total flow273.7 lpmReference

Rear TypeIII/IIINReference

Rear lift6386 kgReference

Rear lift7427 kgReference

Front HitchoptionalReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1804Reference

Engine RPM1000@1804Reference

Front PTOindependentReference

Front PTO Type1000 (1.375)Reference

Power at rated PTO speed174.5 kWReference

Dimensions

Wheelbase344 cmReference

Weight23862 to 24662 poundsReference

Rear axle101 by 3048 mmReference

Rear tread152 to 223 cmReference

Shipping10823 kgReference

Shipping11186 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Charging volts12Reference

Batteries2Reference

Battery volts12Reference

Capacities

Max capacity12587 kgReference

Test results

Diesel 18-speed 4WDApril 4 - 18, 2012Link: OCED Tractor Test 2017 fileReference

PTO performanceReference

Fuel use45.8 l/hourReference

Fuel use42.0 l/hourReference

Drawbar performanceReference

Gear 7 used for power test.Reference

Max pull9819 kgReference

Gear 4 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
