Tractor · 2011Unverified

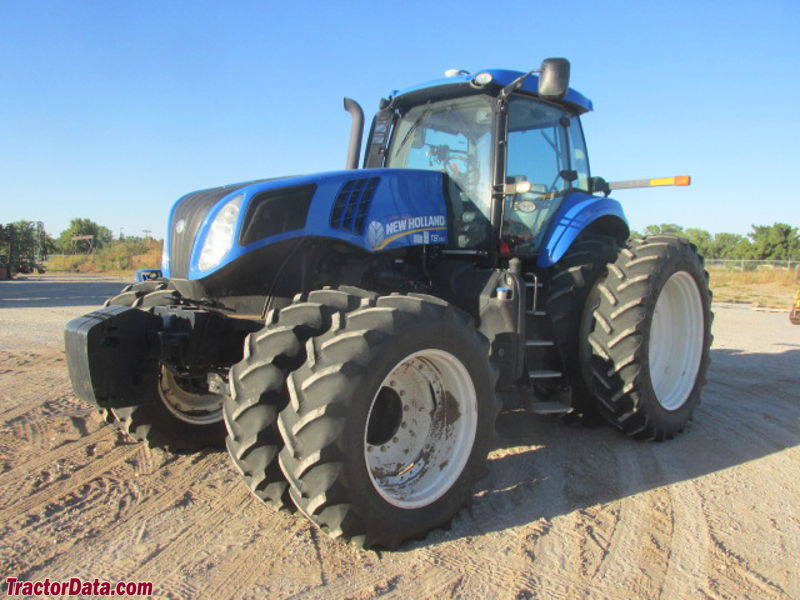

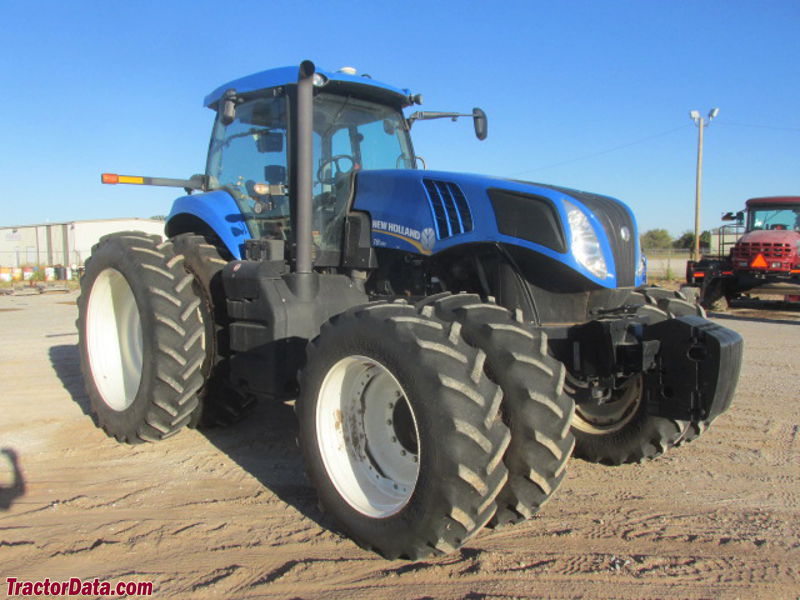

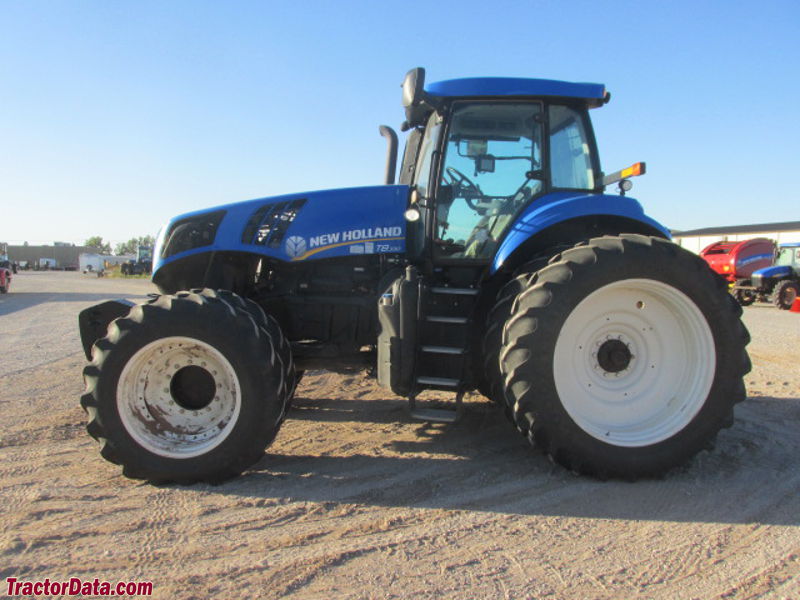

New Holland T8.330
New Holland T8.330 — Model year 2011-20122013-2014 · 284 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
284 hp
Max power
224.4 kW
Weight
24480 to 25280 pounds
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Variants
Magnum 290similar CaseIH modelReference
Engine
FPT 8.7L 6-cyl dieselReference
Fuel tank635.9 LReference
Exhaust fluid (DEF)90.8 LReference
Engine (gross)211.8 kWReference
Engine (max)233.4 kWReference
Drawbar (tested)159.3 kWReference
FPTReference
turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement8.7 LReference
Bore/Stroke117 x 135 mmReference
EmissionsInterim Tier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Rated Power (gross)211.8 kWReference
Maximum Power (gross)233.4 kWReference
Maximum Power (gross)244.6 kWReference
Rated RPM2000Reference
Starter typeelectricReference
Max power224.4 kWReference
Power at rated engine speed185.3 kWReference
Max power159.3 kWReference
Transmission
19-speed full power shiftReference
18-speed full power shiftReference
23-speed creeperReference
Typefull power shiftReference
Gears19 forward and 4 reverseReference
Gears18 forward and 4 reverseReference
TypecreeperReference
Gears23 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)179.0 kWReference
PTO (tested)224.4 kWReference
Typeclosed center load sensingReference
Rear valves4 to 6Reference
Pump flow132.5 lpmReference
Total flow160.9 lpmReference
Total flow273.7 lpmReference
Rear TypeIII/IIINReference
Rear lift6887 kgReference
Rear lift8133 kgReference
Front HitchoptionalReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1804Reference
Engine RPM1000@1804Reference
Front PTOindependentReference
Front PTO Type1000 (1.375)Reference
Power at rated PTO speed224.4 kWReference
Dimensions
Wheelbase344 cmReference
Weight24480 to 25280 poundsReference
Rear axle101 by 3048 mmReference
Rear axle114 by 3048 mmReference
Rear tread152 to 223 cmReference
Shipping11104 kgReference
Shipping11467 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Charging volts12Reference
Batteries2Reference
Battery volts12Reference
Capacities
Max capacity15127 kgReference
Test results
Diesel 18-speed 4WDApril 9 - 18, 2012Link: OCED Tractor Test 2019A fileReference
PTO performanceReference
Fuel use56.8 l/hourReference
Fuel use50.0 l/hourReference
Drawbar performanceReference
Fuel use50.3 l/hourReference
Gear 8 used for power test.Reference
Max pull10669 kgReference
Gear 5 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
