Tractor · 2011Unverified

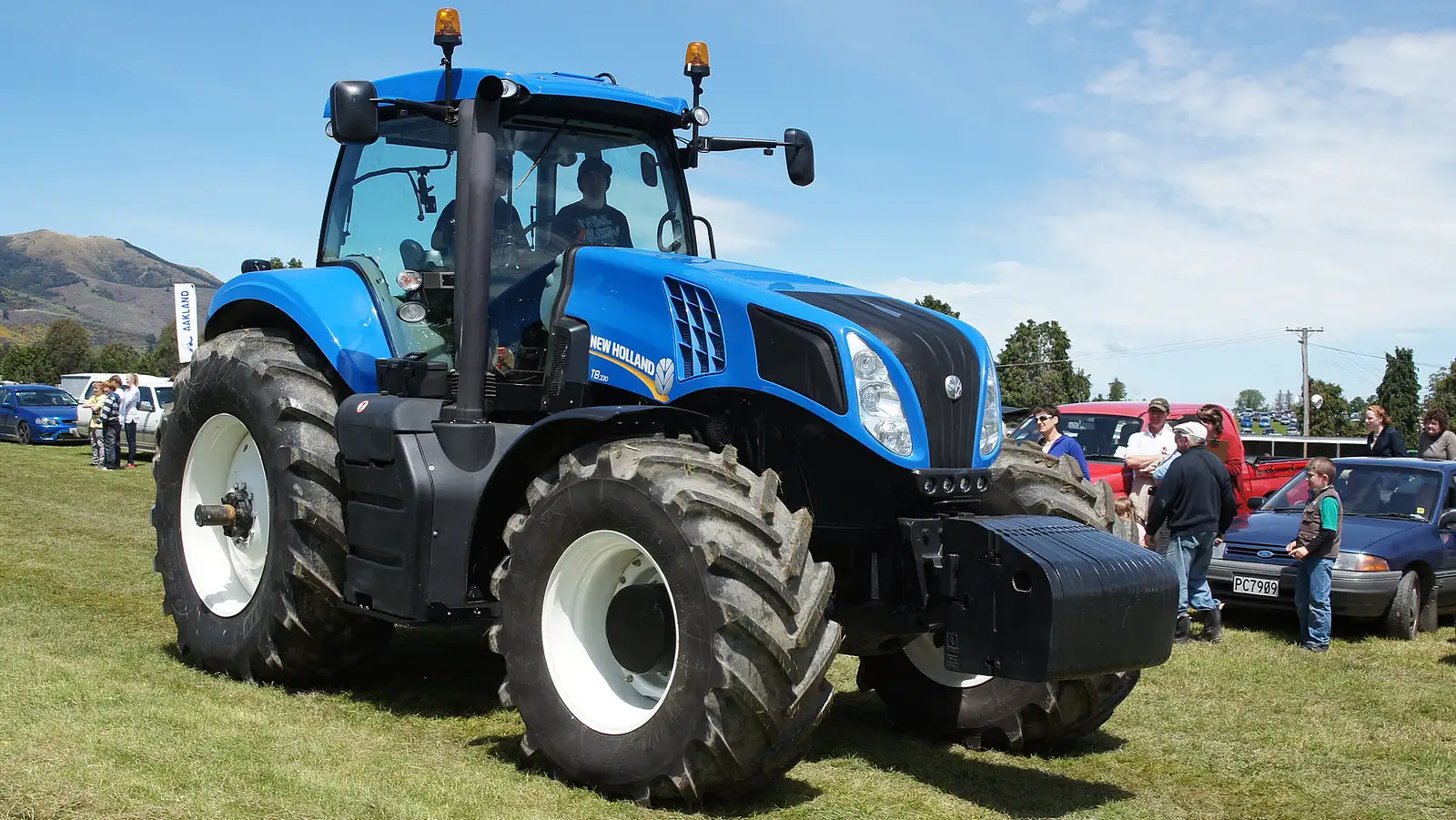

New Holland T8.360

Name: New Holland T8.360
Brand: New Holland

New Holland T8.360 — Model year 2011-20122013-2014 · 312 hp. Reference specifications; pending source verification.

The New Holland T8.360 tractor is rated at 312 hp, positioning it at the high-powered end of its class. Produced between 2011 and 2014, this model features a 6-cylinder turbocharged diesel liquid-cooled engine in combination with a powershift transmission and four-wheel drive. The operating weight is listed as 24480 to 25280 pounds. It is suitable for operations covering 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

312 hp

Max power

235.4 kW

Weight

24480 to 25280 pounds

Catalogue coverage

Variants represented

Richest spec table

78 rows

Recorded power

312 hp

Transmissions

19-speed full power shift

Production years

2011-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard.Reference

Variants

Magnum 315similar CaseIH modelReference

Engine

FPT 8.7L 6-cyl dieselReference

Fuel tank635.9 LReference

Exhaust fluid (DEF)90.8 LReference

Engine (gross)232.7 kWReference

Engine (max)255.8 kWReference

Drawbar (tested)172.5 kWReference

FPTReference

turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement8.7 LReference

Bore/Stroke117 x 135 mmReference

EmissionsInterim Tier 4Reference

Emission controlselective catalytic reduction (SCR)Reference

Rated Power (gross)232.7 kWReference

Maximum Power (gross)255.8 kWReference

Maximum Power (gross)267.0 kWReference

Rated RPM2000Reference

Starter typeelectricReference

Max power235.4 kWReference

Power at rated engine speed202.4 kWReference

Max power172.5 kWReference

Transmission

19-speed full power shiftReference

18-speed full power shiftReference

23-speed creeperReference

Typefull power shiftReference

Gears19 forward and 4 reverseReference

Gears18 forward and 4 reverseReference

TypecreeperReference

Gears23 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)197.6 kWReference

PTO (tested)235.4 kWReference

Typeclosed center load sensingReference

Rear valves4 to 6Reference

Pump flow132.5 lpmReference

Total flow160.9 lpmReference

Total flow273.7 lpmReference

Rear TypeIII/IIINReference

Rear lift7427 kgReference

Rear lift8133 kgReference

Front HitchoptionalReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1804Reference

Engine RPM1000@1804Reference

Front PTOindependentReference

Front PTO Type1000 (1.375)Reference

Power at rated PTO speed235.4 kWReference

Dimensions

Wheelbase344 cmReference

Weight24480 to 25280 poundsReference

Rear axle114 by 3048 mmReference

Rear tread152 to 223 cmReference

Shipping11104 kgReference

Shipping11467 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Charging volts12Reference

Batteries2Reference

Battery volts12Reference

Capacities

Max capacity15615 kgReference

Test results

Diesel 18-speed 4WDApril 12 - 18, 2012Link: OCED Tractor Test 2020A fileReference

PTO performanceReference

Fuel use59.8 l/hourReference

Fuel use54.5 l/hourReference

Drawbar performanceReference

Gear 8 used for power test.Reference

Max pull11136 kgReference

Gear 5 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
