Tractor · 2015Unverified

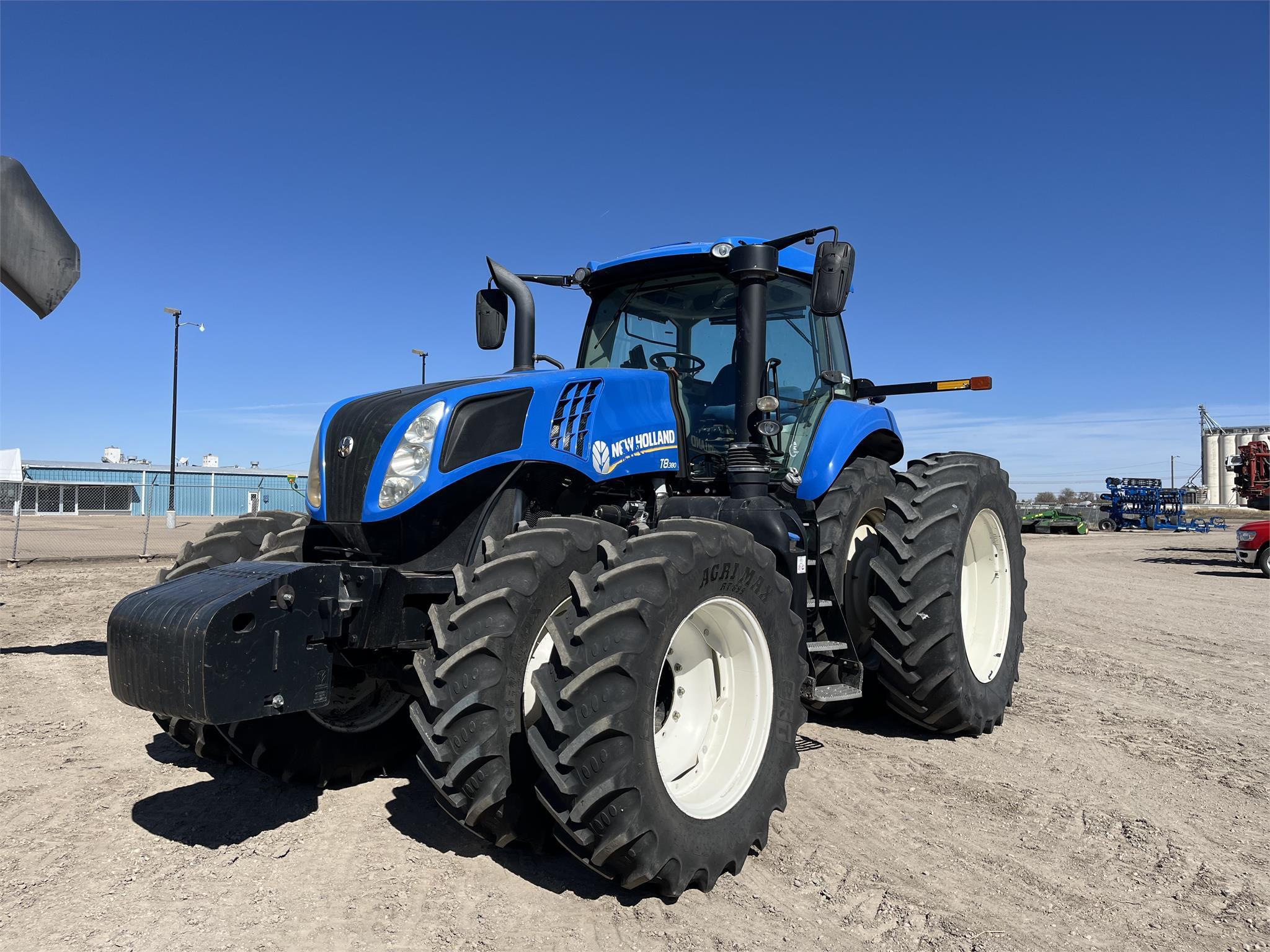

New Holland T8.380
New Holland T8.380 — T8 Series · 311 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
311 hp
Max power
233.9 kW
Weight
10200 kg
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Original price was $305,073 in 2016 with powershiftReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning. Comfort Ride cab suspension optional. Intellisteer readyReference
Variants
T8.380wheeled tractorReference
T8.380 SmartTraxhalf-trackReference
Magnum 310similar CaseIH modelReference
Engine
FPT 8.7L 6-cyl dieselReference
CVT Fuel tank617.0 LReference
FPS Fuel tank677.5 LReference
Exhaust fluid (DEF)98.4 LReference
Engine (gross)231.9 kWReference
Engine (max)284.9 kWReference
Drawbar (tested)174.9 kWReference
FPTReference
variable-geometry turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement8.7 LReference
Bore/Stroke117 x 135 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Rated Power (gross)231.9 kWReference
Maximum Power (gross)284.9 kWReference
Fuel systemelectronic high-pressure common railReference
Cooling systemviscous fanReference
Rated RPM2000Reference
StarterelectricReference
Starter volts12Reference
Max power233.9 kWReference
Power at rated engine speed204.9 kWReference
Max power174.9 kWReference
Transmission
18-speed full power shiftReference
continuously variable transmission (CVT)Reference
23-speed power shift creeperReference
TransmissionUltra-CommandReference
Typefull power shiftReference
Gears18 forward and 4 reverseReference
Clutchelectro-hydraulic wet discsReference
Available as 18-speed or 19-speed with ECO overdrive.Reference
TransmissionAuto CommandReference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverse (4-range)Reference
Typepower shift creeperReference
Gears23 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)197.6 kWReference
PTO (tested)233.9 kWReference
Typeclosed center pressure-flow compensating (PFC)Reference
Valves4 to 5Reference
Pump flow166.5 lpmReference
Pump flow283.9 lpmReference
Rear TypeIII/IIINReference
Rear TypeIVN/IIIReference
Controlelectronic lower-link draft sensingReference
Rear lift7212 kgReference
Rear lift8119 kgReference
Rear lift7938 kgReference
Rear lift8845 kgReference
DrawbarCat. 3Reference
DrawbarCat. 4Reference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1800Reference
Engine RPM1000@1800Reference
Front PTOindependentReference
Front PTO Type1000 (1.375)Reference
Power at rated PTO speed233.9 kWReference
Dimensions
FPS Wheelbase345 cmReference
CVT Wheelbase350 cmReference
Weight10200 kgReference
Front tire420/85R34Reference
Rear tire480/80R50Reference
Standard tires (ag)Front: 420/85R34. Rear: 480/80R50Reference
FPS Length662 cmReference
CVT Length668 cmReference
Height (cab)335 cmReference
Max weight16260 kgReference
Front axleMFWDReference
Front axleTerraglideReference
Bar rear axle114 by 3048 mmReference
Front tread152 to 223 cmReference
New Holland T8.380 attachments
front-end loaderReference
T8.380 Serial Numbers
2015ZERxxxxxxReference
2016ZFRxxxxxxReference
2017ZGRxxxxxxReference
2018ZHRxxxxxxReference
2019ZJRxxxxxxReference
2020ZKRxxxxxxReference
2021ZLRxxxxxxReference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery volts12Reference
Test results
Diesel Power shift 4WDSeptember 4 - 17, 2015Link: OCED Tractor Test 2124A fileReference
PTO performanceReference
Fuel use60.6 l/hourReference
Fuel use54.9 l/hourReference
Drawbar performanceReference
Gear 7 used for power test.Reference
Max pull10930 kgReference
Gear 5 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
