Tractor · 2011Unverified

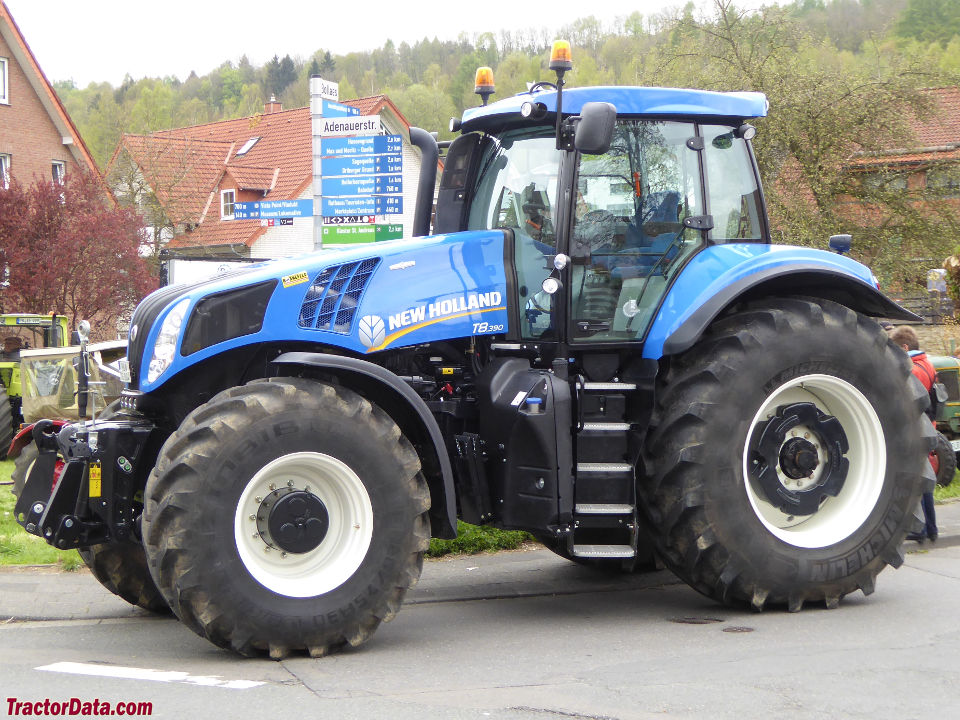

New Holland T8.390

Name: New Holland T8.390
Brand: New Holland

New Holland T8.390 — Model year 2011-20122013-2014 · 340 hp. Reference specifications; pending source verification.

The New Holland T8.390 tractor model has a rated output of 340 hp, categorising it as a high-powered machine within its class. Manufactured between 2011 and 2014, this model features a 6-cylinder turbocharged diesel liquid-cooled engine, coupled with a powershift transmission and four-wheel drive. The listed weight range is 24480 to 26495 pounds. It is designed for use on areas of approximately 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

340 hp

Max power

193.6 kW

Weight

24480 to 26495 pounds

Catalogue coverage

Variants represented

Richest spec table

80 rows

Recorded power

340 hp

Transmissions

19-speed full power shift

Production years

2011-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard.Reference

Variants

Magnum 340similar CaseIH modelReference

Engine

FPT 8.7L 6-cyl dieselReference

Fuel tank635.9 LReference

Exhaust fluid (DEF)90.8 LReference

Engine (gross)253.5 kWReference

Engine (max)278.9 kWReference

Drawbar (tested)193.6 kWReference

FPTReference

turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement8.7 LReference

Bore/Stroke117 x 135 mmReference

EmissionsInterim Tier 4Reference

Emission controlselective catalytic reduction (SCR)Reference

Rated Power (gross)253.5 kWReference

Maximum Power (gross)278.9 kWReference

Maximum Power (gross)290.1 kWReference

Air cleanertwo dry elementsReference

Compression15.9:1Reference

Rated RPM2000Reference

Starter typeelectricReference

Power at rated engine speed219.0 kWReference

Max power193.6 kWReference

Transmission

19-speed full power shiftReference

18-speed full power shiftReference

23-speed creeperReference

Typefull power shiftReference

Gears19 forward and 4 reverseReference

Gears18 forward and 4 reverseReference

TypecreeperReference

Gears23 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)216.3 kWReference

PTO (tested)219.0 kWReference

Typeclosed center load sensingReference

Rear valves4 to 6Reference

Pump flow132.5 lpmReference

Total flow160.9 lpmReference

Total flow273.7 lpmReference

Rear TypeIVN/IIIReference

Rear lift8573 kgReference

Front HitchoptionalReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1804Reference

Engine RPM1000@1804Reference

Front PTOindependentReference

Front PTO Type1000 (1.375)Reference

Power at rated PTO speed247.9 kWReference

Dimensions

Wheelbase344 cmReference

Weight24480 to 26495 poundsReference

Rear axle114 by 3048 mmReference

Rear tread152 to 223 cmReference

Shipping11104 kgReference

Shipping11467 kgReference

Operating12018 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Charging volts12Reference

Batteries2Reference

Battery volts12Reference

Capacities

Max capacity16839 kgReference

Test results

Diesel 18-speed 4WDOctober 18 - 27, 2011Link: OCED Tractor Test 2007 fileReference

PTO performanceReference

Fuel use58.3 l/hourReference

Fuel use63.2 l/hourReference

Drawbar performanceReference

Fuel use59.4 l/hourReference

Gear 8 used for power test.Reference

Max pull17230 kgReference

Gear 3 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
