Tractor · 2015Unverified

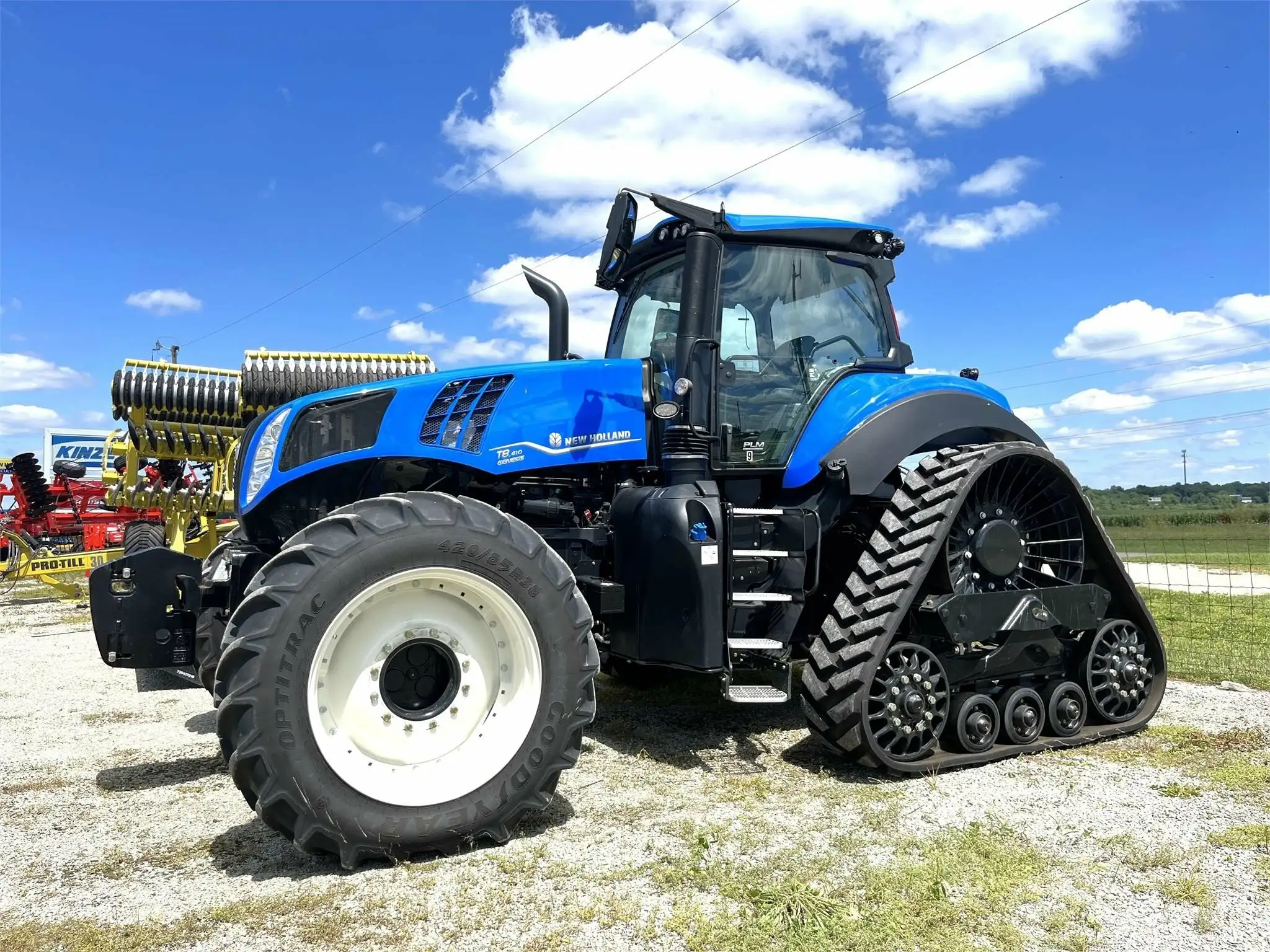

New Holland T8.410 SmartTrax

Name: New Holland T8.410 SmartTrax
Brand: New Holland

New Holland T8.410 SmartTrax — T8 Series · 340 hp. Reference specifications; pending source verification.

The New Holland T8.410 SmartTrax is a 340 hp tractor, situated at the higher power end of its class. Produced in 2015, it features a 6-cylinder turbocharged diesel liquid-cooled engine, combined with mechanical front-wheel drive and a continuously variable transmission. Its operating weight is listed as 16233 kg, making it suitable for large-scale operations covering over 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

340 hp

Max power

253.7 kW

Weight

16233 kg

Catalogue coverage

Variants represented

Richest spec table

91 rows

Recorded power

340 hp

Recorded weight

16233 kg

Transmissions

18-speed full power shift

Production years

2015-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Half-track Crawler tractorReference

Original price was $396,566 in 2016 with powershiftReference

Drivehalf-trackReference

Final drivesinboard planetaryReference

Wet disc brakesReference

Cab standard with air-conditioning. Intellisteer readyReference

Variants

T8.410wheeled tractorReference

T8.410 SmartTraxhalf-trackReference

Engine

FPT 8.7L 6-cyl dieselReference

CVT Fuel tank617.0 LReference

FPS Fuel tank677.5 LReference

Exhaust fluid (DEF)98.4 LReference

Engine (gross)253.5 kWReference

Engine (max)305.0 kWReference

Drawbar (tested)187.6 kWReference

FPTReference

variable-geometry turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement8.7 LReference

Bore/Stroke117 x 135 mmReference

EmissionsTier IVReference

Emission controlselective catalytic reduction (SCR)Reference

Rated Power (gross)253.5 kWReference

Maximum Power (gross)305.0 kWReference

Fuel systemelectronic high-pressure common railReference

Cooling systemviscous fanReference

Rated RPM2000Reference

StarterelectricReference

Starter volts12Reference

Max power253.7 kWReference

Power at rated engine speed225.7 kWReference

Max power187.6 kWReference

Transmission

18-speed full power shiftReference

continuously variable transmission (CVT)Reference

TransmissionUltra-CommandReference

Typefull power shiftReference

Gears18 forward and 4 reverseReference

TransmissionAuto CommandReference

Typecontinuously variable transmission (CVT)Reference

Gearsinfinite forward and reverse (4-range)Reference

PTO & Hydraulics

PTO (claimed)216.3 kWReference

PTO (tested)253.7 kWReference

Typeclosed center pressure-flow compensating (PFC)Reference

Valves4 to 5Reference

Pump flow162.8 lpmReference

Pump flow276.3 lpmReference

Rear TypeIII/IIINReference

Rear TypeIVN/IIIReference

Controlelectronic lower-link draft sensingReference

Rear lift9026 kgReference

DrawbarCat. 4Reference

Rear PTOindependentReference

Rear PTO Type1000Reference

Rear PTO Type540/1000Reference

Front PTOindependentReference

Front PTO Type1000 (1.375)Reference

Power at rated PTO speed253.7 kWReference

Dimensions

Wheelbase355 cmReference

Weight16233 kgReference

Front tire380/80R42Reference

Rear tire18-inchReference

Ag front380/80R42Reference

Ag rear18-inch tacksReference

Ag front420/85R38Reference

Ag front380/95R38Reference

Ag front420/75R30Reference

Ag rear16-inch tracksReference

Ag rear24-inch tracksReference

Ag rear30-inch tracksReference

Length660 cmReference

Height (cab)345 cmReference

Max weight17758 kgReference

Front axleMFWDReference

Front axleTerraglideReference

Front tread152 to 223 cmReference

Rear tread193 to 386 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Batteries2Reference

Battery volts12Reference

Test results

Diesel 17-speed half-trackApril 19 - May 2, 2016Link: OCED Tractor Test 2149 fileReference

PTO performanceReference

Fuel use64.7 l/hourReference

Fuel use59.0 l/hourReference

Drawbar performanceReference

Gear 7 used for power test.Reference

Max pull15310 kgReference

Gear 3 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
