Tractor · 2015Unverified

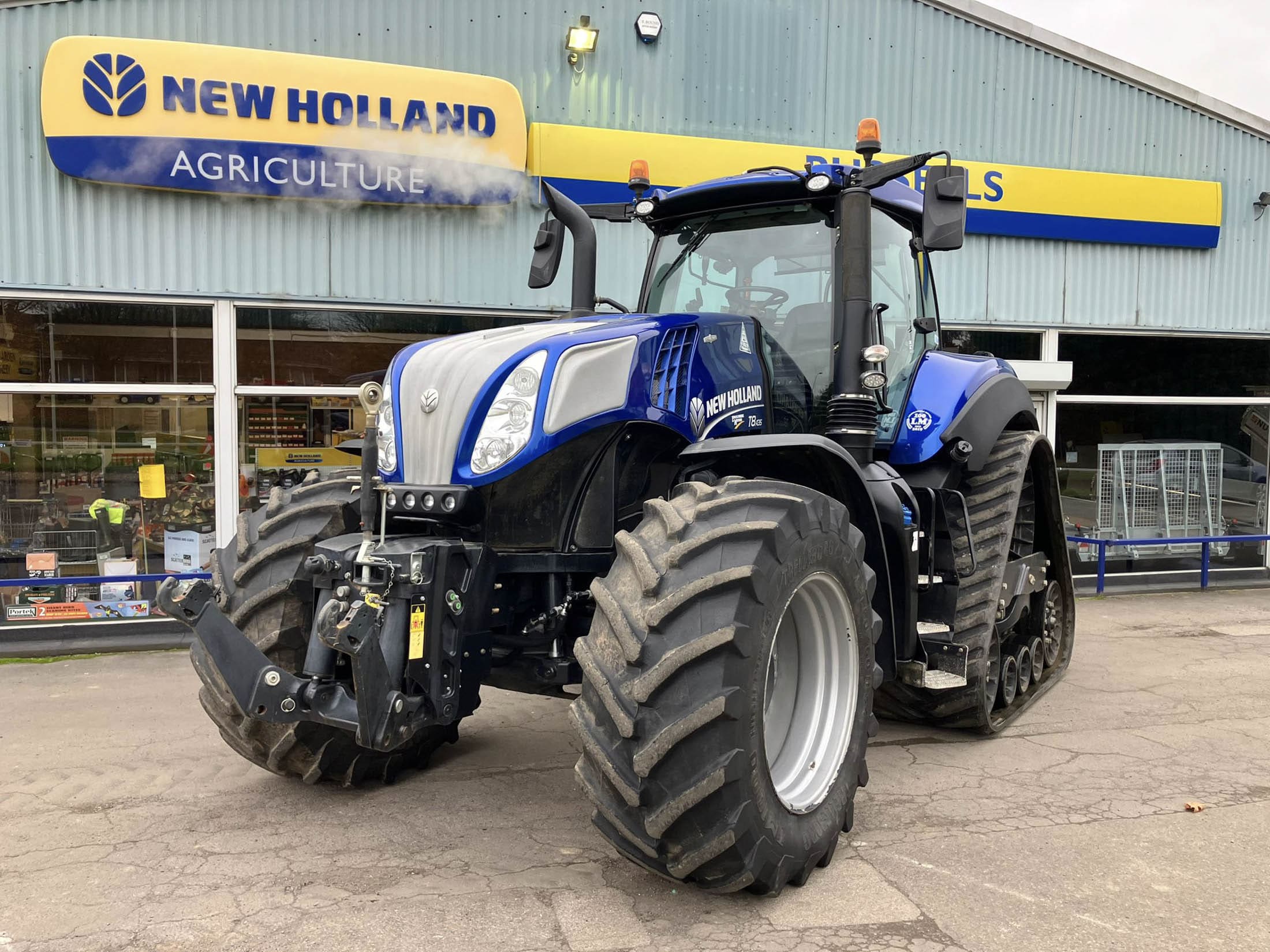

New Holland T8.435
New Holland T8.435 — T8 Series · 380 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
380 hp
Max power
277.7 kW
Weight
11880 kg
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Original price was $384,754 in 2016Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning. Comfort Ride cab suspension optional. Intellisteer readyReference
Variants
T8.435wheeled tractorReference
T8.435 SmartTraxhalf-trackReference
Magnum 380similar CaseIH modelReference
Engine
FPT 8.7L 6-cyl dieselReference
Fuel tank617.0 LReference
Exhaust fluid (DEF)98.4 LReference
Engine (gross)283.4 kWReference
Engine (max)324.4 kWReference
Drawbar (tested)204.9 kWReference
FPTReference
variable-geometry turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement8.7 LReference
Bore/Stroke117 x 135 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Rated Power (gross)283.4 kWReference
Maximum Power (gross)324.4 kWReference
Fuel systemelectronic high-pressure common railReference
Cooling systemviscous fanReference
Rated RPM2000Reference
StarterelectricReference
Starter volts12Reference
Max power277.7 kWReference
Power at rated engine speed238.8 kWReference
Max power204.9 kWReference
Transmission
continuously variable transmission (CVT)Reference
TransmissionAuto CommandReference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverse (4-range)Reference
PTO & Hydraulics
PTO (claimed)234.9 kWReference
PTO (tested)277.7 kWReference
Typeclosed center pressure-flow compensating (PFC)Reference
Valves4 to 5Reference
Pump flow166.5 lpmReference
Pump flow283.9 lpmReference
Rear TypeIII/IIINReference
Rear TypeIVN/IIIReference
Controlelectronic lower-link draft sensingReference
Rear lift9026 kgReference
DrawbarCat. 4Reference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1800Reference
Engine RPM1000@1800Reference
Front PTOindependentReference
Front PTO Type1000 (1.375)Reference
Power at rated PTO speed277.0 kWReference
Dimensions
Wheelbase355 cmReference
Weight11880 kgReference
Front tire420/85R34Reference
Rear tire480/80R50Reference
Standard tires (ag)Front: 420/85R34. Rear: 480/80R50Reference
Length690 cmReference
Height (cab)335 cmReference
Max weight18688 kgReference
Front axleMFWDReference
Front axleTerraglideReference
Bar rear axle127 by 3048 mmReference
Front tread152 to 223 cmReference
New Holland T8.435 attachments
front-end loaderReference
T8.435 Serial Numbers
2015ZERxxxxxxReference
2016ZFRxxxxxxReference
2017ZGRxxxxxxReference
2018ZHRxxxxxxReference
2019ZJRxxxxxxReference
2020ZKRxxxxxxReference
2021ZLRxxxxxxReference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery volts12Reference
Test results
Diesel CVT 4WDMay 19 - June 12, 2015Link: OCED Tractor Test 2126A fileReference
PTO performanceReference
Fuel use73.8 l/hourReference
Fuel use64.7 l/hourReference
Drawbar performanceReference
Fuel use65.1 l/hourReference
Pull at 9.0 KPHReference
Max pull13162 kgReference
Pull at 5.8 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
