Tractor · 2015Unverified

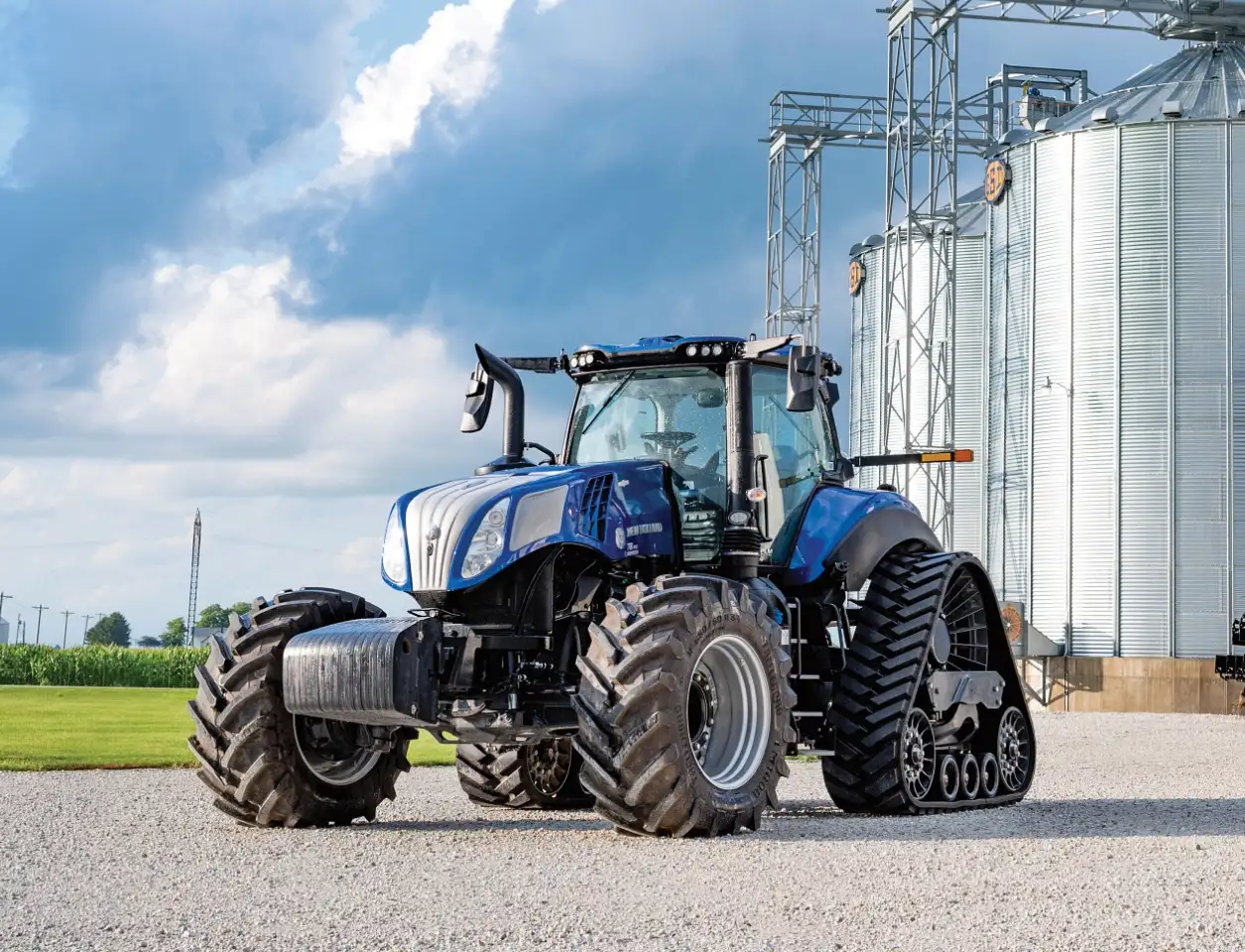

New Holland T8.435 SmartTrax

Name: New Holland T8.435 SmartTrax
Brand: New Holland

New Holland T8.435 SmartTrax — T8 Series · 380 hp. Reference specifications; pending source verification.

The New Holland T8.435 SmartTrax is a tractor model with a rated power output of 380 hp, placing it at the upper end of its class. Introduced in 2015, this tractor features a 6-cylinder turbocharged diesel liquid-cooled engine and mechanical front-wheel drive with a continuously variable transmission. The T8.435 SmartTrax has a listed operating weight of 16233 kg and is suitable for operations spanning 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

380 hp

Max power

188.4 kW

Weight

16233 kg

Catalogue coverage

Variants represented

Richest spec table

85 rows

Recorded power

380 hp

Recorded weight

16233 kg

Transmissions

continuously variable transmission (CVT)

Production years

2015-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Half-track Crawler tractorReference

Original price was $430,826 in 2016Reference

Drivehalf-trackReference

Final drivesinboard planetaryReference

Wet disc brakesReference

Cab standard with air-conditioning. Intellisteer readyReference

Variants

T8.435wheeled tractorReference

T8.435 SmartTraxhalf-trackReference

Engine

FPT 8.7L 6-cyl dieselReference

Fuel tank617.0 LReference

Exhaust fluid (DEF)98.4 LReference

Engine (gross)283.4 kWReference

Engine (max)324.4 kWReference

Drawbar (tested)188.4 kWReference

FPTReference

variable-geometry turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement8.7 LReference

Bore/Stroke117 x 135 mmReference

EmissionsTier IVReference

Emission controlselective catalytic reduction (SCR)Reference

Rated Power (gross)283.4 kWReference

Maximum Power (gross)324.4 kWReference

Fuel systemelectronic high-pressure common railReference

Cooling systemviscous fanReference

Rated RPM2000Reference

StarterelectricReference

Starter volts12Reference

Power at rated engine speed239.9 kWReference

Max power188.4 kWReference

Transmission

continuously variable transmission (CVT)Reference

TransmissionAuto CommandReference

Typecontinuously variable transmission (CVT)Reference

Gearsinfinite forward and reverse (4-range)Reference

PTO & Hydraulics

PTO (claimed)234.9 kWReference

PTO (tested)239.9 kWReference

Typeclosed center pressure-flow compensating (PFC)Reference

Valves4 to 5Reference

Pump flow162.8 lpmReference

Pump flow276.3 lpmReference

Rear TypeIII/IIINReference

Rear TypeIVN/IIIReference

Controlelectronic lower-link draft sensingReference

Rear lift9026 kgReference

DrawbarCat. 4Reference

Rear PTOindependentReference

Rear PTO Type1000Reference

Rear PTO Type540/1000Reference

Front PTOindependentReference

Front PTO Type1000 (1.375)Reference

Power at rated PTO speed280.2 kWReference

Dimensions

Wheelbase355 cmReference

Weight16233 kgReference

Front tire380/80R42Reference

Rear tire18-inchReference

Ag front380/80R42Reference

Ag rear18-inch tacksReference

Ag front420/85R38Reference

Ag front380/95R38Reference

Ag front420/75R30Reference

Ag rear16-inch tracksReference

Ag rear24-inch tracksReference

Ag rear30-inch tracksReference

Length660 cmReference

Height (cab)345 cmReference

Max weight18674 kgReference

Front axleMFWDReference

Front axleTerraglideReference

Front tread152 to 223 cmReference

Rear tread193 to 386 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Batteries2Reference

Battery volts12Reference

Test results

Diesel CVT half-trackApril 27 - May 3, 2016Link: OCED Tractor Test 2150A fileReference

PTO performanceReference

Fuel use64.7 l/hourReference

Fuel use73.8 l/hourReference

Drawbar performanceReference

Pull at 9.0 KPHReference

Max pull15481 kgReference

Pull at 3.8 KPHReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
