Tractor · 2007Unverified

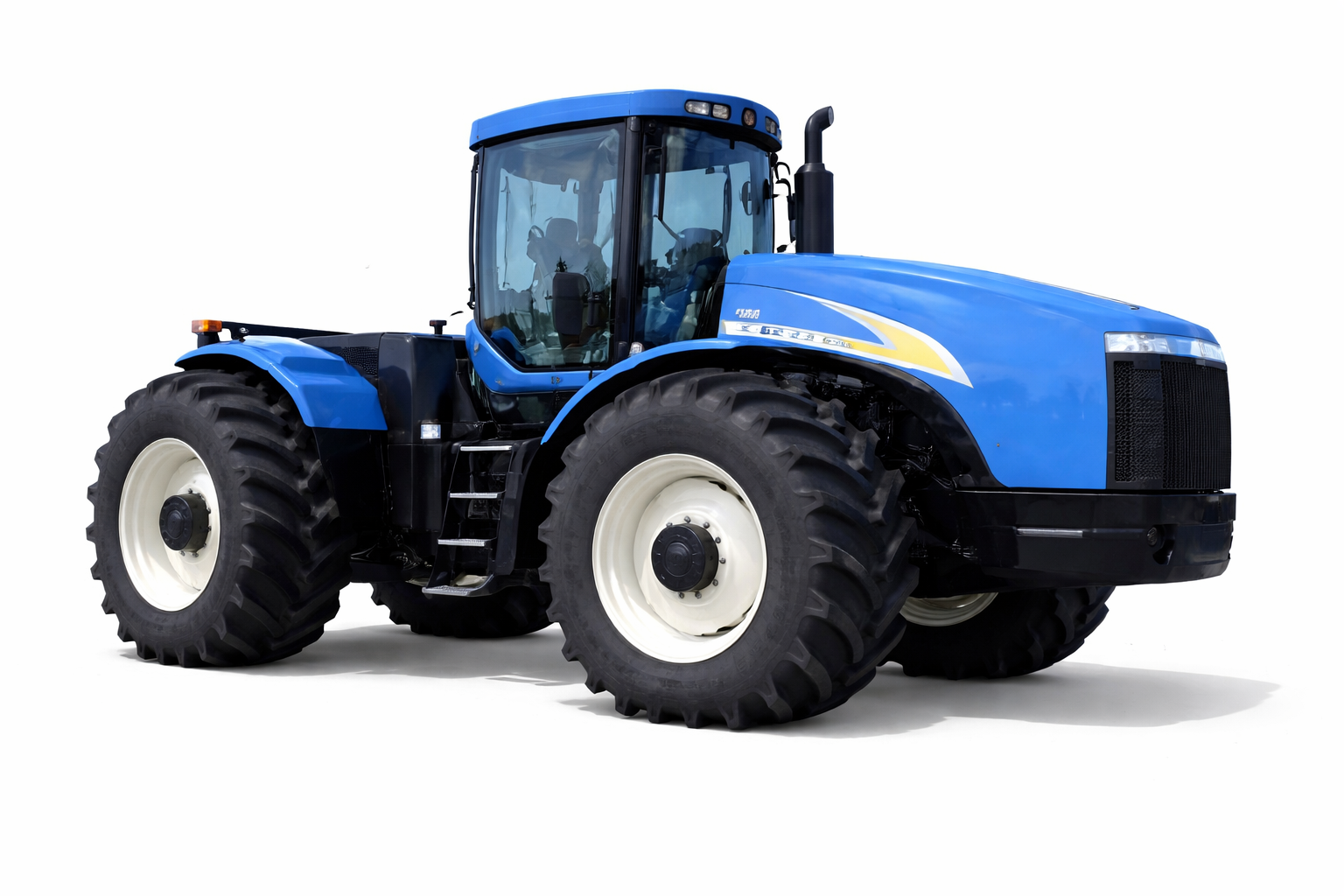

New Holland T9020

Name: New Holland T9020
Brand: New Holland

New Holland T9020 — T9000 Series · 286 hp. Reference specifications; pending source verification.

The New Holland T9020 is a tractor with a rated power output of 286 horsepower, positioning it among the higher-powered machines in its class. Manufactured from 2007 to 2010, it features a 6-cylinder turbocharged diesel liquid-cooled engine, which drives four-wheel drive via a hydrostatic transmission. The listed weight of the T9020 is 14,569 kilograms. It is suitable for tasks on areas of approximately 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

286 hp

Max power

241.1 kW

Weight

14569 kg

Catalogue coverage

Variants represented

Richest spec table

109 rows

Recorded power

286 hp

Recorded weight

14569 kg

Transmissions

16-speed full power shift

Production years

2007-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Integral hydraulic wet disc brakesReference

Cab standard with heat and air-conditioningReference

Engine

CDC 8.9L 6-cyl dieselReference

Fuel tank757.0 LReference

Engine249.8 kWReference

Drawbar (tested)192.9 kWReference

CDCReference

turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement8.9 LReference

Bore/Stroke114 x 145 mmReference

Power249.8 kWReference

Maximum Power274.4 kWReference

Compression16.6:1Reference

Rated RPM2000Reference

Torque1624.5 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts24Reference

Oil capacity27.4 LReference

Coolant capacity47.3 LReference

Max power241.1 kWReference

Power at rated engine speed213.1 kWReference

Max power192.9 kWReference

Fuel TypeDieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,000 RPMReference

Engine torque at rated speed543.4 kgReference

Bore and stroke4.488x5.689 inchesReference

Compression ratio16.6:1Reference

Cooling systemliquid-cooledReference

Transmission

16-speed full power shiftReference

24-speed full synchro shiftReference

Typefull power shiftReference

Gears16 forward and 2 reverseReference

Typefull synchro shiftReference

Gears24 forward and 6 reverseReference

Transmission TypeSync ShuttleReference

forward and reverse optionsPowershift 16F and 2R | synchro shift 24F and 6RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)204.3 kWReference

PTO (tested)241.1 kWReference

Typeclosed center load sensing (CCLS)Reference

Pressure137.9 barReference

Valves4 to 9Reference

Pump flow124.9 lpmReference

Total flow151.4 lpmReference

Total flow208.2 lpmReference

Total flow340.7 lpmReference

Rear TypeIVN/III (optional)Reference

Rear lift (at 24"/610mm)7107 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (optional)Reference

Dimensions

Wheelbase353 cmReference

Weight14569 kgReference

Front tire710/70R42Reference

Rear tire710/70R42Reference

Ag front710/70R42Reference

Ag rear710/70R42Reference

Length701 cmReference

Height360 cmReference

Operating weight14569 kgReference

Max weight17962 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps150Reference

Charging amps175 (optional)Reference

Batteries2Reference

Battery volts12Reference

Battery AH1000Reference

Test results

Diesel 16-speed 4WDSeptember 19 - October 22, 2007Link: OCED Tractor Test 1907A fileReference

PTO performanceReference

Fuel use68.1 l/hourReference

Fuel use64.3 l/hourReference

Drawbar performanceReference

Fuel use64.0 l/hourReference

Gear 5 used for power test.Reference

Max pull14150 kgReference

Gear 3 used for pull test.Reference

General

Make & ModelNew HollandReference

Cruise controlAvailableReference

Country of manufacturerUSAReference

Capacities

Capacity540 ciReference

Crankcase oil volume29 qtsReference

Hydraulics

Capacity Valves24 valvesReference

Pump Rated Output (total)90 gpmReference

Hydraulics Typeclosed center load sensing (CCLS)Reference

Maximum operating pressure2,000 psiReference

Remote Valves4 to 9 valvesReference

Rear Hitch category (SAE designation)Category IVN/III (optional)Reference

Power

Rated Power335 hpReference

PTO

PTO Power274 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakesintegral hydraulic wet discReference

Steering typehydrostatic powerReference

Dimensions & weight

Overall Height360.7 cmReference

Overall Length701 cmReference

Overall weight14,569.4 kgReference

Wheels & tyres

Rear Wheel Type710/70R42Reference

Front Wheel Type710/70R42Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
