Tractor · 2007Unverified

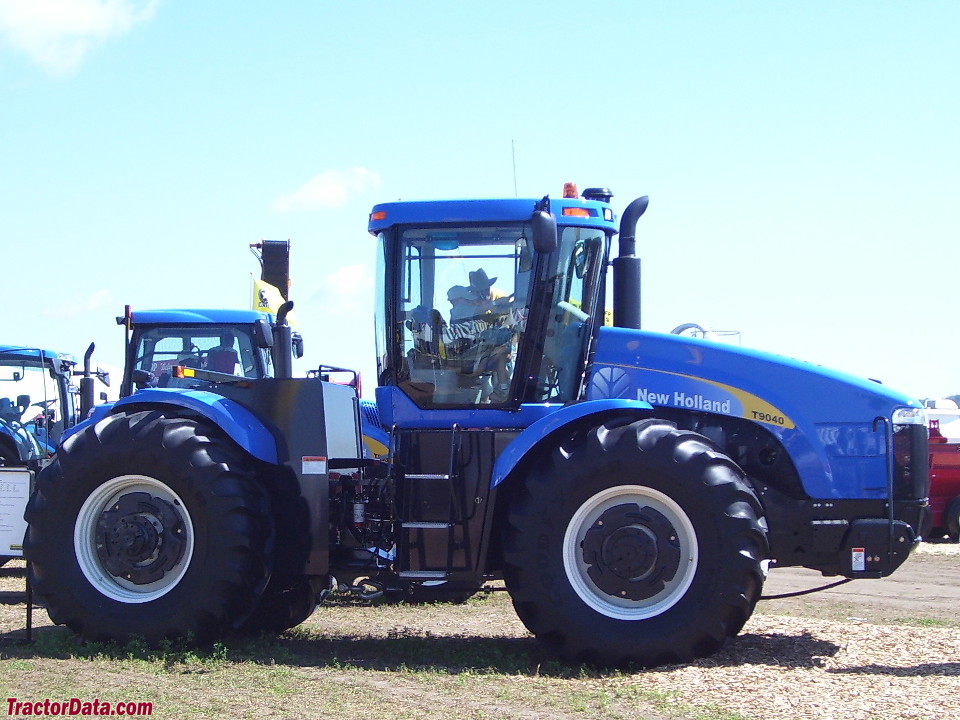

New Holland T9040

Name: New Holland T9040
Brand: New Holland

New Holland T9040 — T9000 Series · 385 hp. Reference specifications; pending source verification.

The New Holland T9040 is a tractor with a rated power of 385 hp, positioning it at the higher power end of its class. Built from 2007 to 2010, this model features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. The tractor's operating weight is listed at 18,872 kg. It is suitable for operations covering 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

385 hp

Max power

327.3 kW

Weight

18872 kg

Catalogue coverage

Variants represented

Richest spec table

105 rows

Recorded power

385 hp

Recorded weight

18872 kg

Transmissions

16-speed full power shift

Production years

2007-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Integral hydraulic wet disc brakesReference

Cab standard with heat and air-conditioningReference

Engine

Iveco 12.9L 6-cyl dieselReference

Fuel tank1135.5 LReference

Engine324.4 kWReference

Drawbar (tested)261.9 kWReference

IvecoReference

turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement12.9 LReference

Bore/Stroke135 x 150 mmReference

Power324.4 kWReference

Maximum Power357.2 kWReference

Compression16.5:1Reference

Rated RPM2000Reference

Torque1920.1 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts24Reference

Oil capacity31.0 LReference

Coolant capacity79.9 LReference

Max power327.3 kWReference

Power at rated engine speed286.8 kWReference

Max power261.9 kWReference

Fuel TypeDieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,000 RPMReference

Engine torque at rated speed642.3 kgReference

Bore and stroke5.314x5.906 inchesReference

Compression ratio16.5:1Reference

Cooling systemliquid-cooledReference

Transmission

16-speed full power shiftReference

Typefull power shiftReference

Gears16 forward and 2 reverseReference

Transmission TypePowershiftReference

forward and reverse optionsPowershift -16F and 2RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)282.6 kWReference

PTO (tested)327.3 kWReference

Typeclosed center load sensing (CCLS)Reference

Pressure137.9 barReference

Valves4 to 9Reference

Pump flow124.9 lpmReference

Total flow151.4 lpmReference

Total flow208.2 lpmReference

Total flow340.7 lpmReference

Rear TypeIVN (optional)Reference

Rear lift (at 24"/610mm)8899 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (optional)Reference

Dimensions

Wheelbase391 cmReference

Weight18872 kgReference

Front tire710/70R42Reference

Rear tire710/70R42Reference

Ag front710/70R42Reference

Ag rear710/70R42Reference

Length756 cmReference

Height381 cmReference

Operating weight18872 kgReference

Max weight23405 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps175Reference

Batteries2Reference

Battery volts12Reference

Battery AH1000Reference

Test results

Diesel 16-speed 4WDSeptember 25 - October 12, 2007Link: OCED Tractor Test 1909A fileReference

PTO performanceReference

Fuel use92.7 l/hourReference

Fuel use85.2 l/hourReference

Drawbar performanceReference

Fuel use83.6 l/hourReference

Gear 6 used for power test.Reference

Max pull16633 kgReference

Gear 2 used for pull test.Reference

General

Make & ModelNew HollandReference

Cruise controlAvailableReference

Country of manufacturerUSAReference

Capacities

Capacity786 ciReference

Crankcase oil volume32.75 qtsReference

Hydraulics

Capacity Valves24 valvesReference

Pump Rated Output (total)90 gpmReference

Hydraulics Typeclosed center load sensing (CCLS)Reference

Maximum operating pressure2,000 psiReference

Remote Valves4 to 9 valvesReference

Rear Hitch category (SAE designation)Category IVN (optional)Reference

Power

Rated Power435 hpReference

PTO

PTO Power379 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakesintegral hydraulic wet discReference

Steering typehydrostatic powerReference

Dimensions & weight

Overall Height381 cmReference

Overall Length756.9 cmReference

Overall weight18,871.7 kgReference

Wheels & tyres

Rear Wheel Type710/70R42Reference

Front Wheel Type710/70R42Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionavailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
