Tractor · 2007Unverified

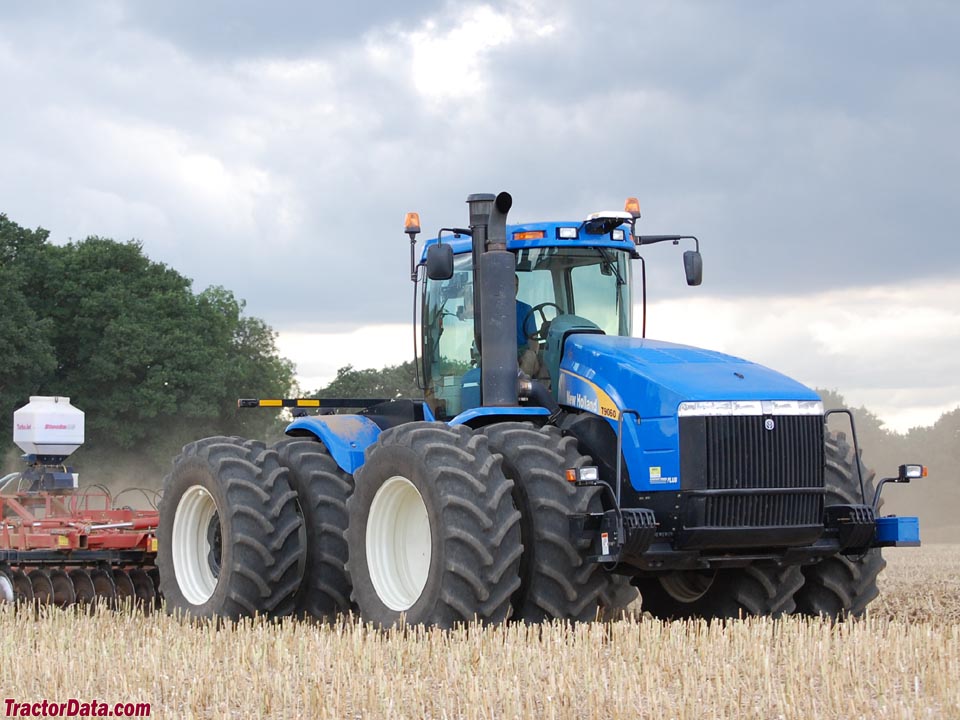

New Holland T9060

Name: New Holland T9060
Brand: New Holland

New Holland T9060 — T9000 Series · 473 hp. Reference specifications; pending source verification.

The New Holland T9060 is a tractor model with a rated power of 473 hp, positioning it at the more powerful end of its class. It was manufactured from 2007 to 2010. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. Its listed operating weight is 24494 kg, suitable for operations covering 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

473 hp

Max power

589 hp

Weight

24,494 kg

Catalogue coverage

Variants represented

Richest spec table

88 rows

Recorded power

473 hp

Recorded weight

24494 kg

Transmissions

16-speed full power shift

Production years

2007-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Integral hydraulic wet disc brakesReference

Cab standard with heat and air-conditioningReference

Engine

Cummins 15.0L 6-cyl dieselReference

Fuel tank1135.5 LReference

Engine398.9 kWReference

Cummins QSX15Reference

turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement15.0 LReference

Bore/Stroke137 x 170 mmReference

Power398.9 kWReference

Maximum Power439.2 kWReference

Rated RPM2100Reference

Torque2564.2 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts24Reference

Oil capacity49.2 LReference

Coolant capacity79.9 LReference

Fuel TypeDieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,100 RPMReference

Engine torque at rated speed857.7 kgReference

Bore and stroke5.4x6.7 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speed full power shiftReference

Typefull power shiftReference

Gears16 forward and 2 reverseReference

Transmission TypePowershiftReference

forward and reverse optionsPowershift -16F and 2RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)352.7 kWReference

Typeclosed center load sensing (CCLS)Reference

Pressure137.9 barReference

Valves4 to 9Reference

Pump flow124.9 lpmReference

Total flow159.0 lpmReference

Total flow215.7 lpmReference

Total flow355.8 lpmReference

Rear TypeIVN (optional)Reference

Rear lift (at 24"/610mm)8899 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (optional)Reference

Dimensions

Wheelbase391 cmReference

Front tire710/70R42Reference

Rear tire710/70R42Reference

Ag front710/70R42Reference

Ag rear710/70R42Reference

Length756 cmReference

Height381 cmReference

Max weight24494 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps175Reference

Batteries2Reference

Battery volts12Reference

Battery AH1000Reference

General

Make & ModelNew HollandReference

Cruise controlAvailableReference

Country of manufacturerUSAReference

Capacities

Capacity915 ciReference

Crankcase oil volume52 qtsReference

Hydraulics

Capacity Valves24 valvesReference

Pump Rated Output (total)94 gpmReference

Hydraulics Typeclosed center load sensing (CCLS)Reference

Maximum operating pressure2,000 psiReference

Remote Valves4 to 9 valvesReference

Rear Hitch category (SAE designation)Category IVN (optional)Reference

Power

Max Power589 hpReference

Rated Power535 hpReference

PTO

PTO Power473 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakesintegral hydraulic wet discReference

Steering typehydrostatic powerReference

Dimensions & weight

Overall Height381 cmReference

Overall Length756.9 cmReference

Weight24,494 kgReference

Wheels & tyres

Rear Wheel Type710/70R42Reference

Front Wheel Type710/70R42Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
