Tractor · 2011Unverified

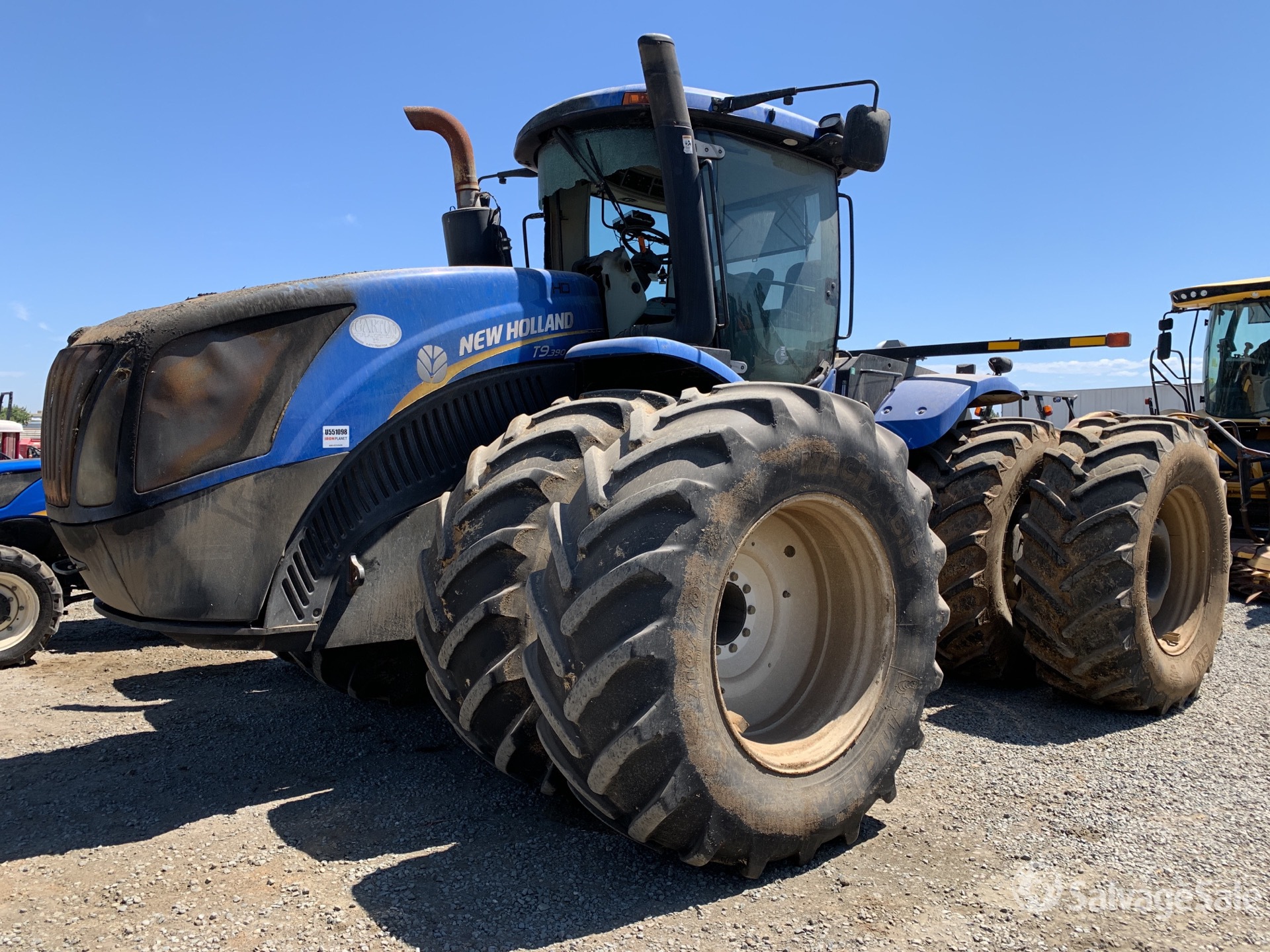

New Holland T9.390
New Holland T9.390 — T9 Series · 308 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
308 hp
Max power
254.4 kW
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Engine
FPT 8.9L 6-cyl dieselReference
Fuel tank870.6 LReference
Exhaust fluid (DEF)174.1 LReference
Engine264.0 kWReference
FPTReference
turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement8.9 LReference
Bore/Stroke114 x 145 mmReference
EmissionsInterim Tier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Power264.0 kWReference
Maximum Power290.8 kWReference
Rated RPM2000Reference
StarterelectricReference
Starter volts24Reference
Oil capacity27.4 LReference
Coolant capacity47.3 LReference
Max power254.4 kWReference
Power at rated engine speed229.5 kWReference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
PTO & Hydraulics
PTO (tested)254.4 kWReference
Typeclosed center load sensingReference
Pressure137.9 barReference
Rear valves4 to 8Reference
Pump flow170.3 lpmReference
Total flow151.4 lpmReference
Total flow208.2 lpmReference
Total flow352.0 lpmReference
Total flow408.8 lpmReference
Rear Type4N/3Reference
Rear lift (at 24"/610mm)9072 kgReference
Rear PTOoptionalReference
Rear PTO Type1000 (1-3/4)Reference
Power at rated PTO speed229.5 kWReference
Dimensions
Wheelbase375 cmReference
Length749 cmReference
Width92 cmReference
Height366 cmReference
Rear axle114 by 3048 mmReference
Rear axle127 by 3048 mmReference
Max Drawbar2404 kgReference
Max Drawbar4989 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
Capacities
Max capacity19051 kgReference
Test results
Diesel 16-speed 4WDNovember 9 - 15, 2011Link: OCED Tractor Test 2008A fileReference
PTO performanceReference
Fuel use66.6 l/hourReference
Fuel use62.1 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
