Tractor · 2014Unverified

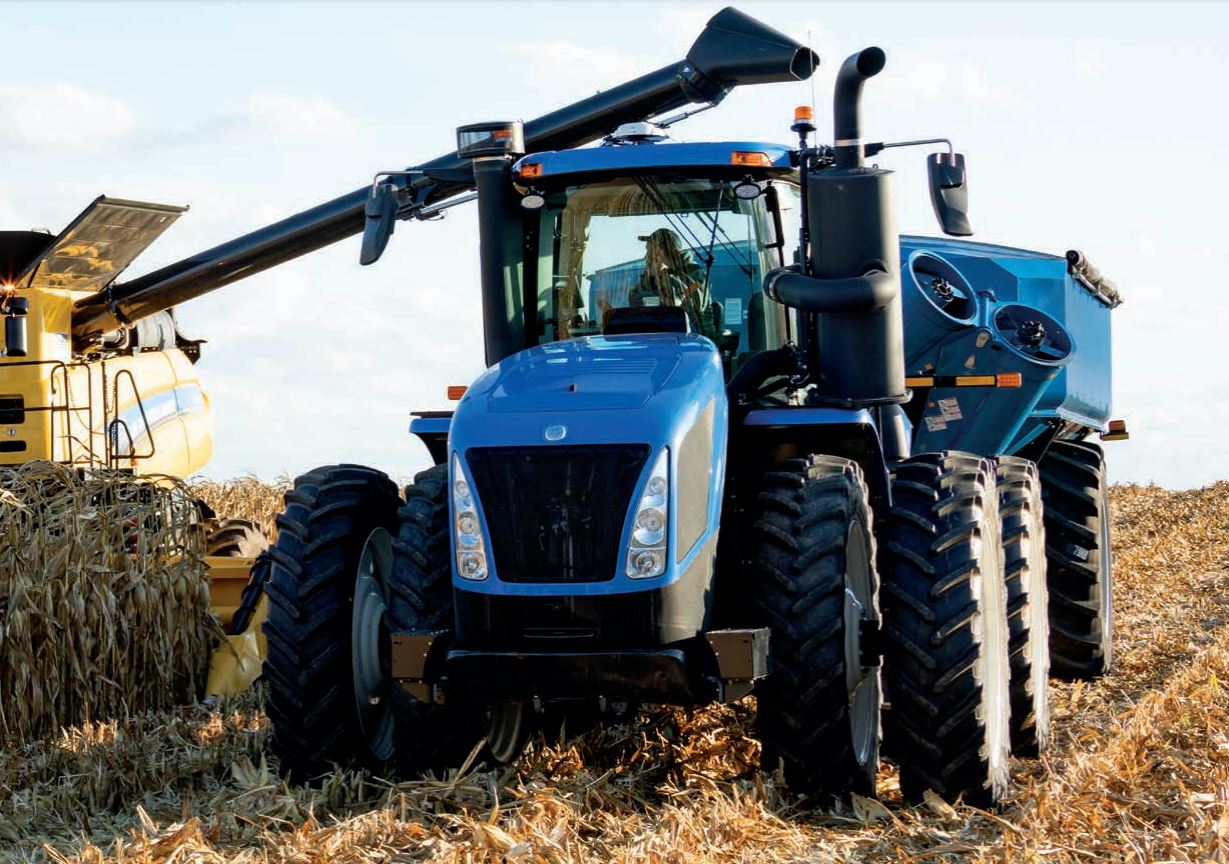

New Holland T9.435
New Holland T9.435 — T9 Series · 370 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
370 hp
Max power
273.3 kW
Weight
16260 kg
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Steeringhydrostatic power articulatedReference
Wet disc brakesReference
Trailer brakeshydraulicReference
Cab standard with air-condioning. Optional Comfort Ride cab suspension. ISOBUS compliant; Intelliview IV; IntelliSteerReference
Variants
Steiger 370similar CaseIH modelReference
Engine
FPT 8.7L 6-cyl dieselReference
Fuel tank870.6 LReference
Exhaust fluid (DEF)159.0 LReference
Engine (gross)275.9 kWReference
Engine (max)319.9 kWReference
Drawbar (tested)224.4 kWReference
FPT Cursor 9Reference
variable-geometry urbocharger aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement8.7 LReference
Bore/Stroke117 x 135 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction with diesel oxidation catalystReference
Rated Power (gross)275.9 kWReference
Maximum Power (gross)319.9 kWReference
Fuel systemelectronic direct-injection high pressure common railReference
Cooling systemviscous fan driveReference
Rated RPM2000Reference
Torque1845.5 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Max power273.3 kWReference
Power at rated engine speed241.1 kWReference
Max power224.4 kWReference
Transmission
17-speed full power shiftReference
TransmissionUltra CommandReference
Typefull power shiftReference
Gears17 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)231.9 kWReference
PTO (tested)273.3 kWReference
Typeclosed center load sensing (CCLS)Reference
Valves4 to 8Reference
Standard Pump flow151.4 lpmReference
High-Flow Pump flow208.2 lpmReference
MegaFlow Pump flow352.0 lpmReference
Rear TypeIVNReference
Rear TypeIIINReference
Controlposition controlReference
Rear lift (at 24"/610mm)9072 kgReference
Rear Armsadjustable link endsReference
DrawbarCat. 4Reference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@1998 (early)Reference
Engine RPM1000@1811 (late)Reference
Power at rated PTO speed271.5 kWReference
Dimensions
Wheelbase375 cmReference
Weight16260 kgReference
Front tire710/70Reference
Rear tire710/70Reference
Ag front710/70 R42Reference
Ag rear710/70 R42Reference
Length739 cmReference
Width304 cmReference
Height (cab)384 cmReference
Shipping weight16260 kgReference
Max weight19051 kgReference
Front axle127 by 3048 mmReference
Bar rear axle127 by 3048 mmReference
T9.435 Serial Numbers
2014ZDFxxxxxxReference
2015ZEFxxxxxxReference
2016ZFFxxxxxxReference
2017ZGFxxxxxxReference
2018ZHFxxxxxxReference
2019ZJFxxxxxxReference
2020ZKFxxxxxxReference
2021ZLFxxxxxxReference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDSeptember 9 - 29, 2014Link: OCED Tractor Test 2092A fileReference
PTO performanceReference
Fuel use72.7 l/hourReference
Fuel use65.9 l/hourReference
Fuel use71.9 l/hourReference
Drawbar performanceReference
Gear 4 used for power test.Reference
Max pull17094 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
