Tractor · 2011Unverified

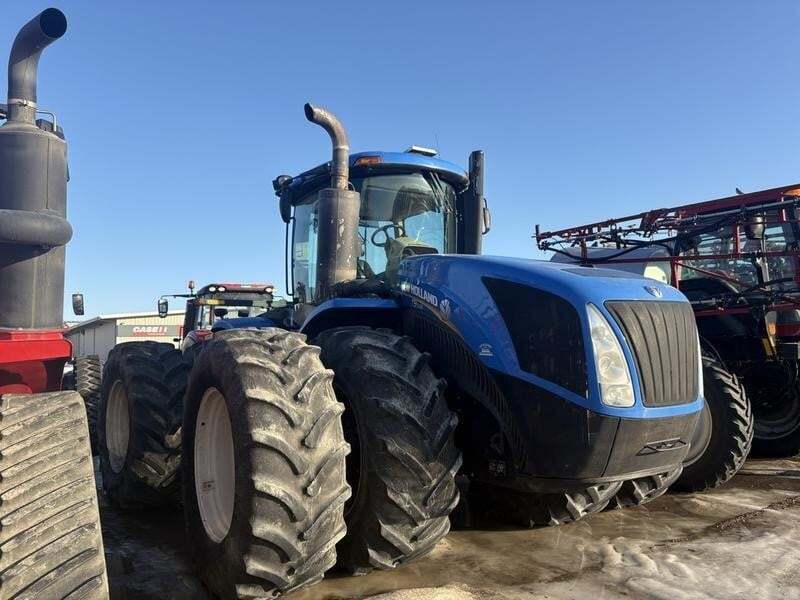

New Holland T9.505

Name: New Holland T9.505
Brand: New Holland

New Holland T9.505 — T9 Series · 408 hp. Reference specifications; pending source verification.

The New Holland T9.505 is a tractor with a rated output of 408 hp, categorising it among the higher-powered machines in its class. It was manufactured from 2011 to 2014. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, coupled with a powershift transmission and four-wheel drive capability. It is designed for use on landholdings of approximately 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

408 hp

Max power

336.5 kW

Catalogue coverage

Variants represented

Richest spec table

72 rows

Recorded power

408 hp

Transmissions

16-speed full power shift

Production years

2011-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

Four-wheel driveReference

Hydraulic wet disc brakesReference

Cab standard.Reference

Engine

FPT 12.9L 6-cyl dieselReference

Fuel tank870.6 LReference

Fuel tank1230.1 LReference

Exhaust fluid (DEF)174.1 LReference

Engine340.8 kWReference

Drawbar (tested)272.6 kWReference

FPTReference

wastegate turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement12.9 LReference

Bore/Stroke135 x 150 mmReference

EmissionsInterim Tier 4Reference

Emission controlselective catalytic reduction (SCR)Reference

Power340.8 kWReference

Maximum Power374.3 kWReference

Rated RPM2100Reference

StarterelectricReference

Starter volts24Reference

Oil capacity30.9 LReference

Coolant capacity79.9 LReference

Max power336.5 kWReference

Power at rated engine speed304.0 kWReference

Max power272.6 kWReference

Transmission

16-speed full power shiftReference

Typefull power shiftReference

Gears16 forward and 2 reverseReference

PTO & Hydraulics

PTO (tested)336.5 kWReference

Typeclosed center load sensingReference

Pressure137.9 barReference

Rear valves4 to 8Reference

Pump flow170.3 lpmReference

Total flow159.0 lpmReference

Total flow215.7 lpmReference

Total flow370.9 lpmReference

Total flow427.7 lpmReference

Rear Type4N/3Reference

Rear lift (at 24"/610mm)9072 kgReference

Rear PTOoptionalReference

Rear PTO Type1000 (1-3/4)Reference

Power at rated PTO speed325.6 kWReference

Dimensions

Wheelbase375 cmReference

Length749 cmReference

Width92 cmReference

Height366 cmReference

Front axle114 by 3048 mmReference

Front axle127 by 3048 mmReference

Max Drawbar2404 kgReference

Max Drawbar4989 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Batteries2Reference

Battery CCA1000Reference

Battery volts12Reference

Capacities

Max capacity22453 kgReference

Test results

Diesel 16-speed 4WDNovember 10 - 21, 2011Link: OCED Tractor Test 2009A fileReference

PTO performanceReference

Fuel use90.1 l/hourReference

Fuel use85.5 l/hourReference

Fuel use88.9 l/hourReference

Drawbar performanceReference

Fuel use85.9 l/hourReference

Gear 5 used for power test.Reference

Max pull17749 kgReference

Gear 2 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
