Tractor · 2024Unverified

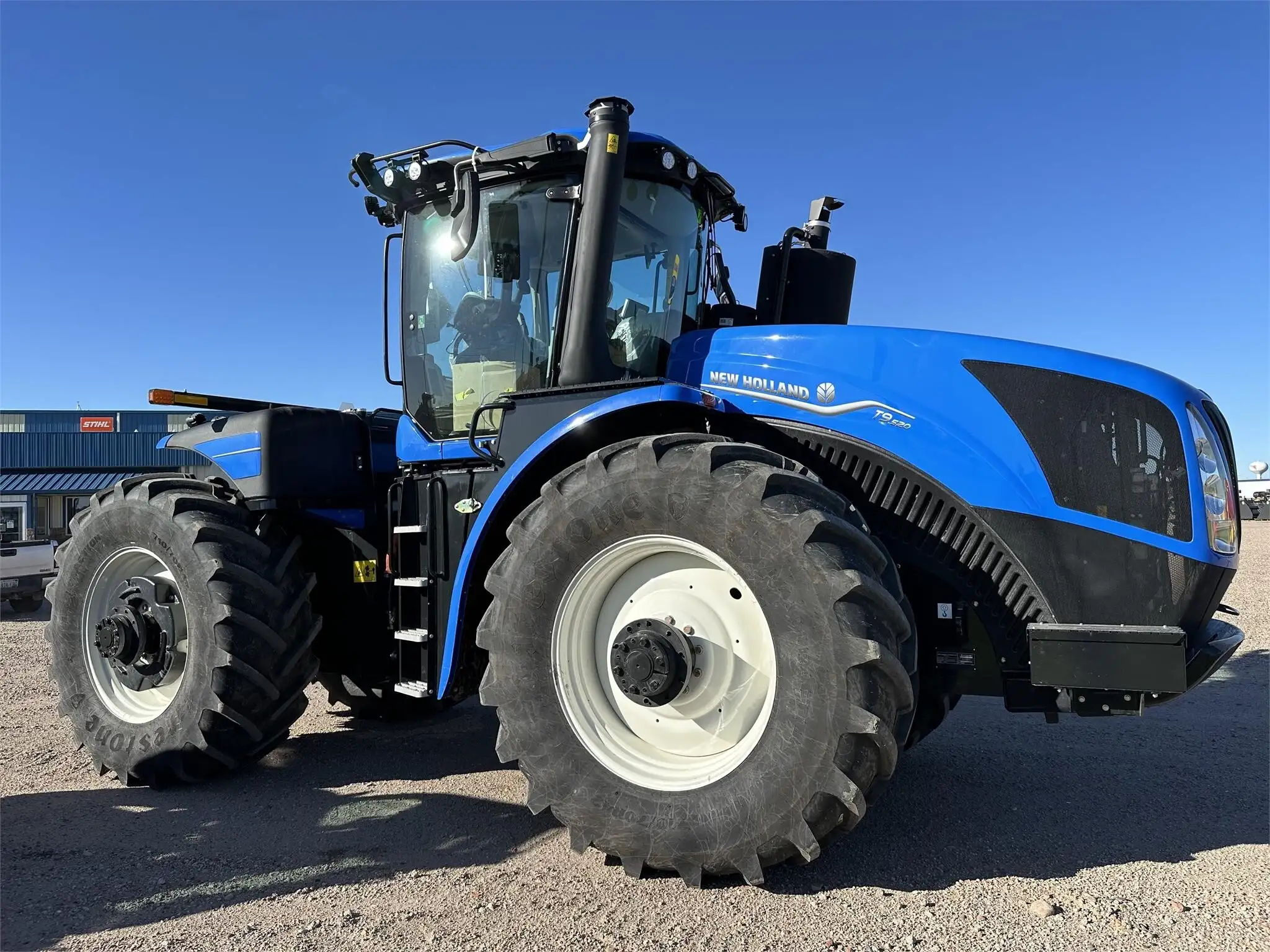

New Holland T9.520

Name: New Holland T9.520
Brand: New Holland

New Holland T9.520 — T9 Series · 469 hp. Reference specifications; pending source verification.

The New Holland T9.520 tractor is rated at approximately 469 hp, positioning it among the more powerful models in its class. It was manufactured in 2024. The T9.520 is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its operating weight is listed at 18,506 kg, making it suitable for operations covering 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

469 hp

Weight

18506 kg

Catalogue coverage

Variants represented

Richest spec table

65 rows

Recorded power

469 hp

Recorded weight

18506 kg

Transmissions

17-speed full power shift

Production years

2024-2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

Original price was $701,209 in 2026Reference

Four-wheel driveReference

Final drivesplanetaryReference

Differential lockautomatic front and rearReference

Articulated power steeringReference

Brakeshydraulic wet discReference

Brakesengine brakeReference

Cab standard with air-conditioning.Reference

Engine

FPT 12.9L 6-cyl dieselReference

Fuel tank1173.4 LReference

Exhaust fluid (DEF)159.0 LReference

Engine (gross)349.4 kWReference

Engine (max)384.0 kWReference

FPT Cursor 13Reference

turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement12.9 LReference

Bore/Stroke135 x 150 mmReference

EmissionsTier IVReference

Rated Power (gross)349.4 kWReference

Maximum Power (gross)384.0 kWReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Transmission

17-speed full power shiftReference

continuously-variable transmissionReference

TransmissionUltra CommandReference

Typefull power shiftReference

Gears17 forward and 2 reverseReference

TransmissionAuto CommandReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)339.8 kWReference

Typeclosed centerReference

Pump flow159.0 lpmReference

Pump flow215.7 lpmReference

Pump flow370.9 lpmReference

Pump flow427.7 lpmReference

Rear TypeIVN/IIIReference

Rear lift (at 24"/610mm)9935 kgReference

DrawbarCat 4Reference

DrawbarCat 5Reference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Engine RPM1000@1811Reference

Dimensions

Wheelbase375 cmReference

Weight18506 kgReference

Front axle127 by 3048 mmReference

Bar rear axle127 by 3048 mmReference

Shipping18506 kgReference

Max Drawbar2721 kgReference

Max Drawbar4989 kgReference

Max Drawbar6804 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps240Reference

Charging amps330Reference

Batteries3Reference

Battery CCA950Reference

Battery volts12Reference

Capacities

Max capacity25401 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
