Tractor · 2014Unverified

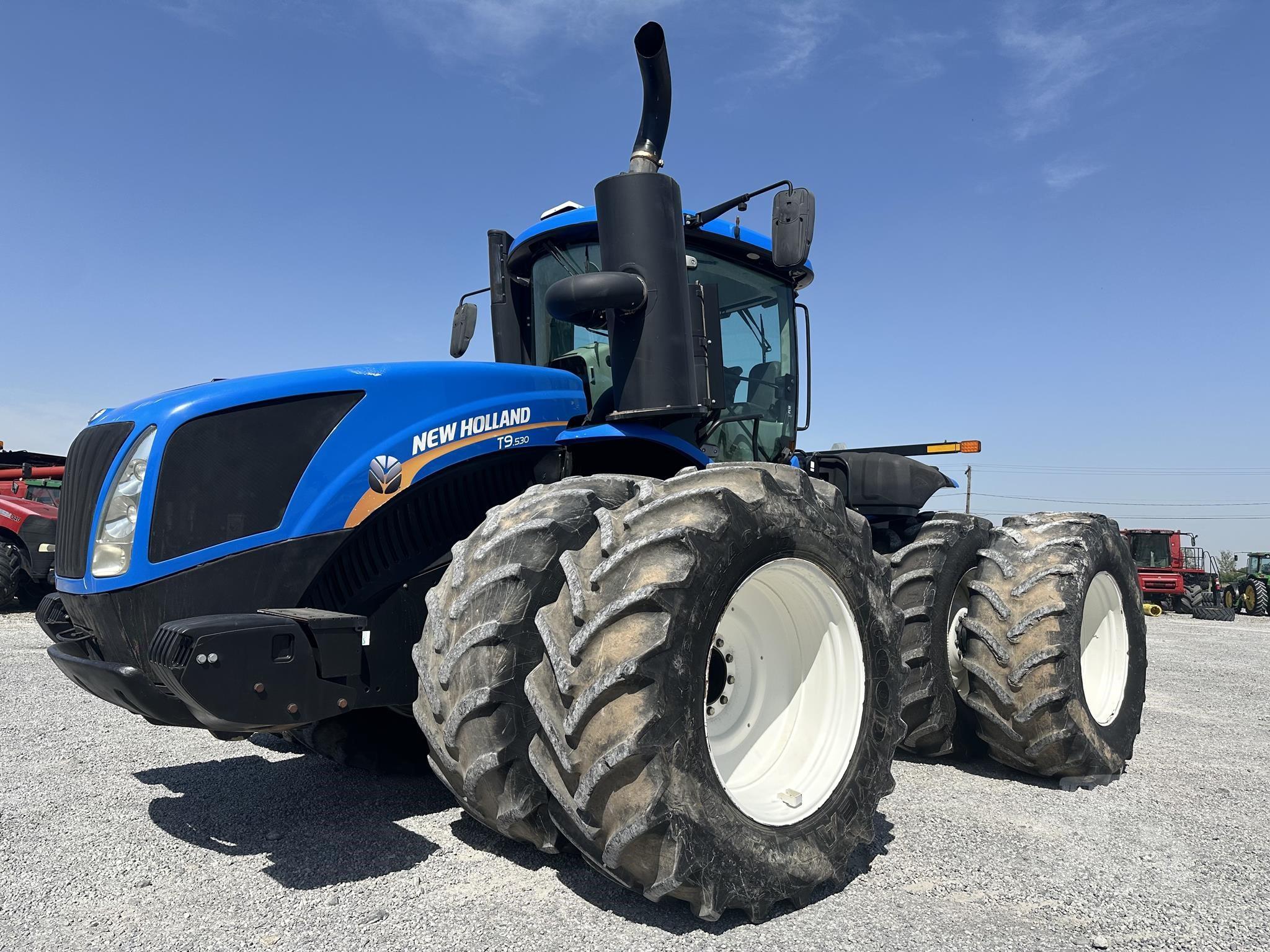

New Holland T9.530

Name: New Holland T9.530
Brand: New Holland

New Holland T9.530 — T9 Series · 470 hp. Reference specifications; pending source verification.

The New Holland T9.530 is a tractor with a rated engine power of 470 hp, placing it at the higher power end of its class. It was produced from 2014 to 2023. The tractor features a 6-cylinder turbocharged diesel engine, which is liquid-cooled, and is equipped with four-wheel drive and a hydrostatic transmission. It has an operating weight of 16351 kg and is designed for use on large areas of 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

470 hp

Max power

349.2 kW

Weight

16351 kg

Catalogue coverage

Variants represented

Richest spec table

94 rows

Recorded power

470 hp

Recorded weight

16351 kg

Transmissions

17-speed full power shift

Production years

2014-2023

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

Four-wheel driveReference

Steeringhydrostatic power articulatedReference

Wet disc brakesReference

Trailer brakeshydraulicReference

Cab standard with air-condioning. Optional Comfort Ride cab suspension. ISOBUS compliant; Intelliview IV; IntelliSteerReference

Variants

Steiger 470similar CaseIH modelReference

Engine

FPT 12.9L 6-cyl dieselReference

Fuel tank1230.1 LReference

Exhaust fluid (DEF)159.0 LReference

Engine (gross)350.5 kWReference

Engine (max)385.5 kWReference

Drawbar (tested)289.1 kWReference

FPT Cursor 13 SSTReference

wastegate turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement12.9 LReference

Bore/Stroke135 x 150 mmReference

EmissionsTier IVReference

Emission controlselective catalytic reduction with diesel oxidation catalystReference

Rated Power (gross)350.5 kWReference

Maximum Power (gross)385.5 kWReference

Fuel systemelectronic direct-injection high pressure common railReference

Cooling systemviscous fan driveReference

Rated RPM2100Reference

Torque2229.3 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Max power349.2 kWReference

Power at rated engine speed311.1 kWReference

Max power289.1 kWReference

Transmission

17-speed full power shiftReference

TransmissionUltra CommandReference

Typefull power shiftReference

Gears17 forward and 2 reverseReference

PTO & Hydraulics

PTO (claimed)302.0 kWReference

PTO (tested)349.2 kWReference

Typeclosed center load sensing (CCLS)Reference

Valves4 to 8Reference

Standard Pump flow159.0 lpmReference

High-Flow Pump flow215.7 lpmReference

MegaFlow Pump flow427.7 lpmReference

Rear TypeIVNReference

Rear TypeIIINReference

Controlposition controlReference

Rear lift (at 24"/610mm)9072 kgReference

Rear Armsadjustable link endsReference

DrawbarCat. 4Reference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Engine RPM1000@1998 (early)Reference

Engine RPM1000@1811 (late)Reference

Power at rated PTO speed343.0 kWReference

Dimensions

Wheelbase375 cmReference

Weight16351 kgReference

Front tire710/70Reference

Rear tire710/70Reference

Ag front710/70 R42Reference

Ag rear710/70 R42Reference

Length739 cmReference

Width304 cmReference

Height (cab)384 cmReference

Shipping weight16351 kgReference

Max weight22453 kgReference

Front axle127 by 3048 mmReference

Bar rear axle127 by 3048 mmReference

T9.530 Serial Numbers

2014ZDFxxxxxxReference

2015ZEFxxxxxxReference

2016ZFFxxxxxxReference

2017ZGFxxxxxxReference

2018ZHFxxxxxxReference

2019ZJFxxxxxxReference

2020ZKFxxxxxxReference

2021ZLFxxxxxxReference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Batteries2Reference

Battery CCA1000Reference

Battery volts12Reference

Test results

Diesel 16-speed 4WDSeptember 11 - 22, 2014Link: OCED Tractor Test 2094A fileReference

PTO performanceReference

Fuel use95.8 l/hourReference

Fuel use91.2 l/hourReference

Fuel use92.4 l/hourReference

Drawbar performanceReference

Gear 4 used for power test.Reference

Max pull19729 kgReference

Gear 1 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
