Tractor · 2018Unverified

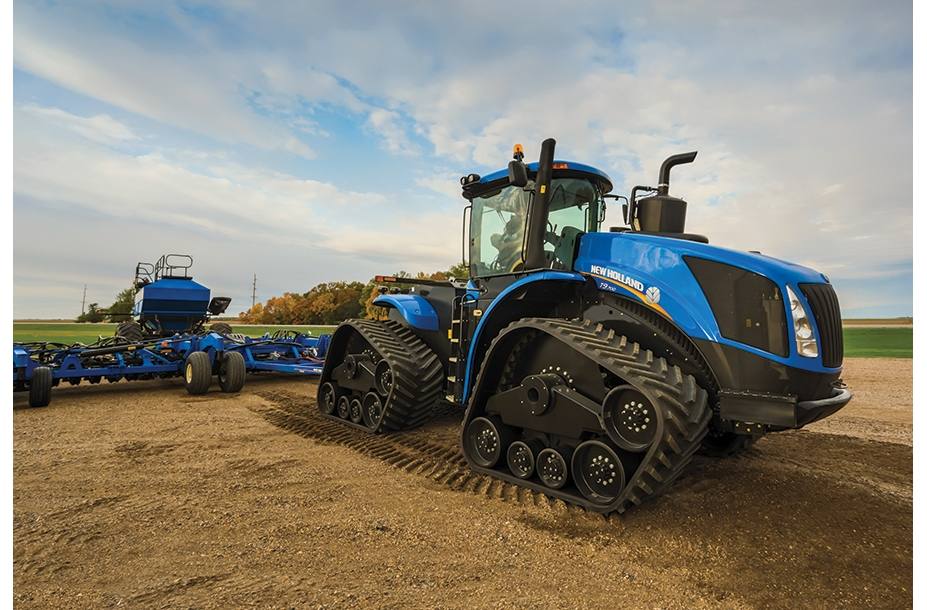

New Holland T9.530 SmartTrax II

Name: New Holland T9.530 SmartTrax II
Brand: New Holland

New Holland T9.530 SmartTrax II — T9 Series · 470 hp. Reference specifications; pending source verification.

The New Holland T9.530 SmartTrax II is a tractor model with a rating of approximately 470 horsepower, placing it at the high-power end of its class. It was produced in 2018. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with a tracked undercarriage and a hydrostatic transmission. It is suitable for operations covering 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

470 hp

Catalogue coverage

Variants represented

Richest spec table

34 rows

Recorded power

470 hp

Transmissions

17-speed full power shift

Production years

2018-2018

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Articulated Crawler tractorReference

Built in Fargo, North Dakota, USAReference

Drivearticulated crawlerReference

Steeringhydrostatic power articulatedReference

Cab standard with air-conditioning.Reference

Variants

T9.530wheeledReference

T9.530 SmartTraxcrawlerReference

Engine

FPT 12.9L 6-cyl dieselReference

Engine (gross)350.5 kWReference

Engine (max)385.5 kWReference

FPT Cursor 13 SSTReference

wastegate turbocharged aftercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement12.9 LReference

Bore/Stroke135 x 150 mmReference

EmissionsTier IVReference

Emission controlselective catalytic reduction with diesel oxidation catalystReference

Rated Power (gross)350.5 kWReference

Maximum Power (gross)385.5 kWReference

Fuel systemelectronic direct-injection high pressure common railReference

Cooling systemviscous fan driveReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Transmission

17-speed full power shiftReference

TransmissionUltra CommandReference

Typefull power shiftReference

Gears17 forward and 2 reverseReference

Dimensions

TracksReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
