Tractor · 2011Unverified

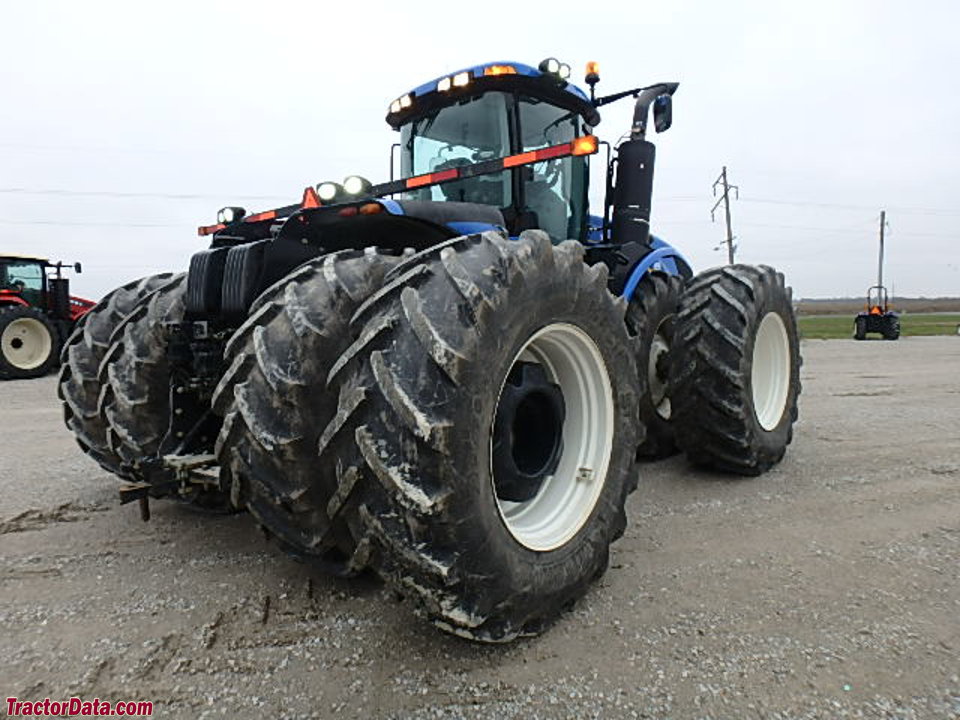

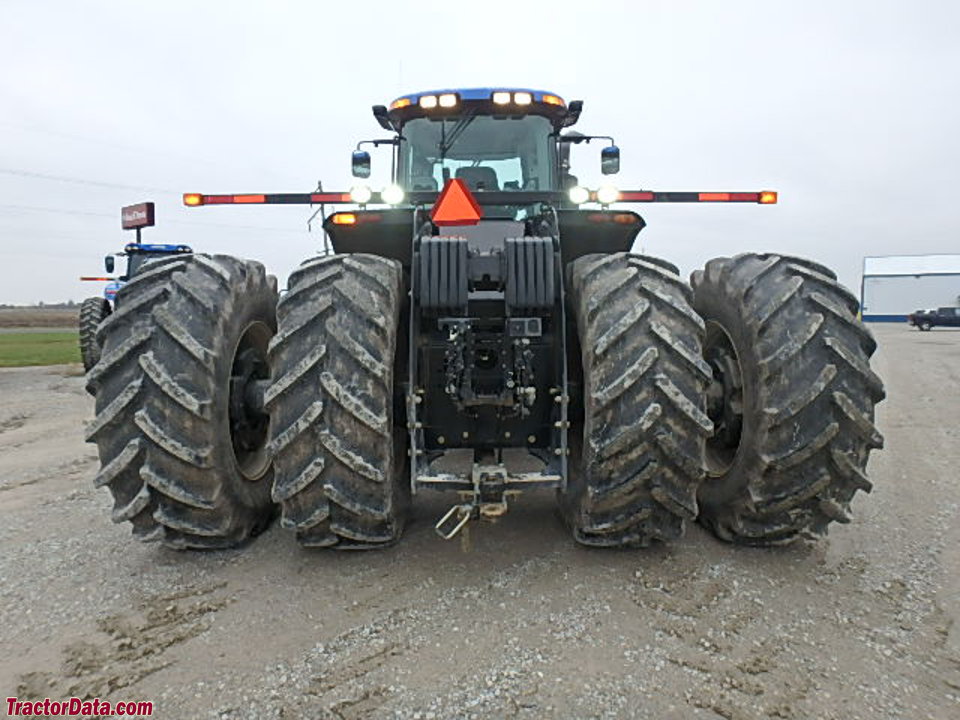

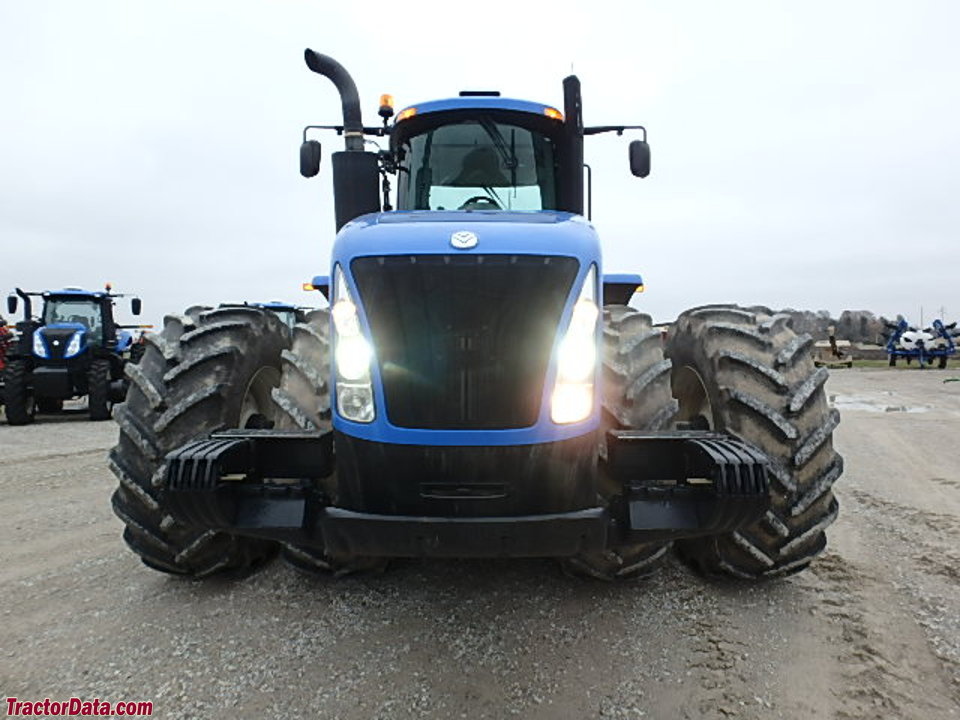

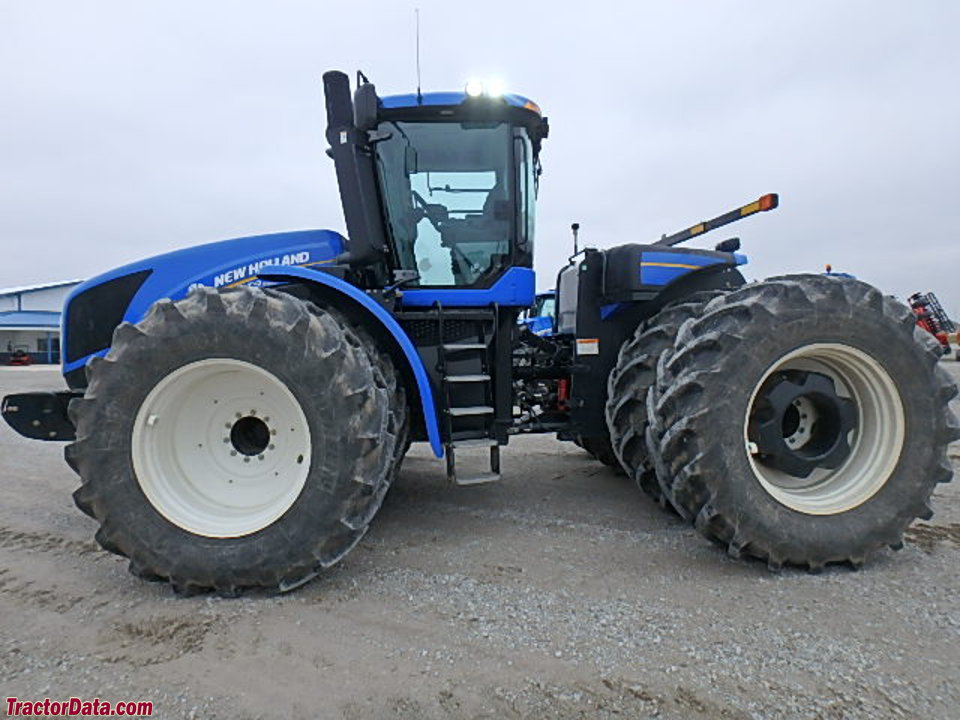

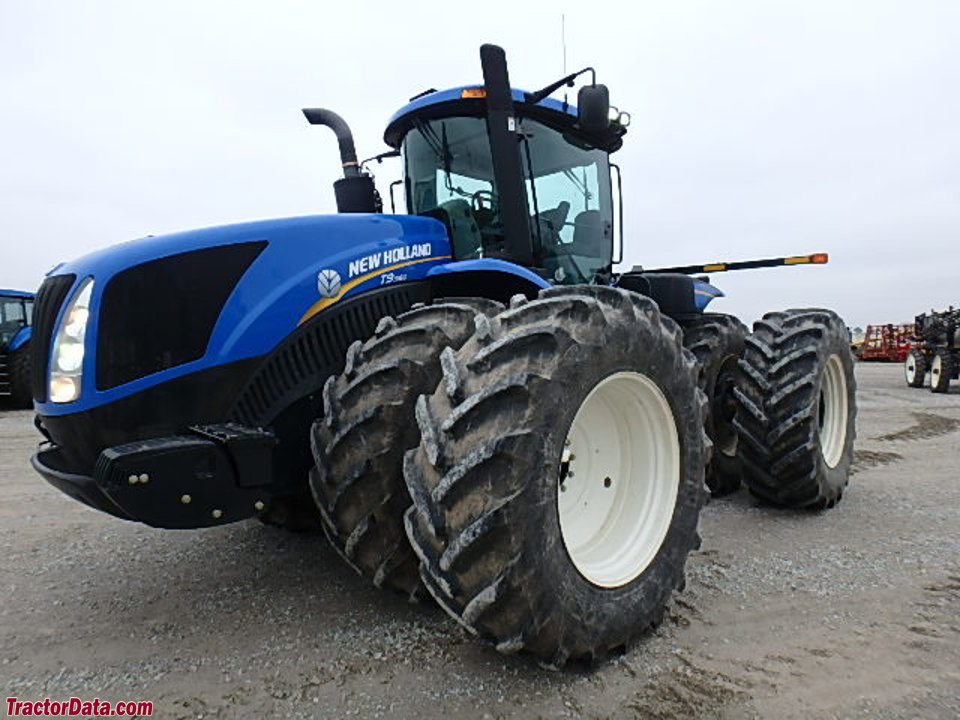

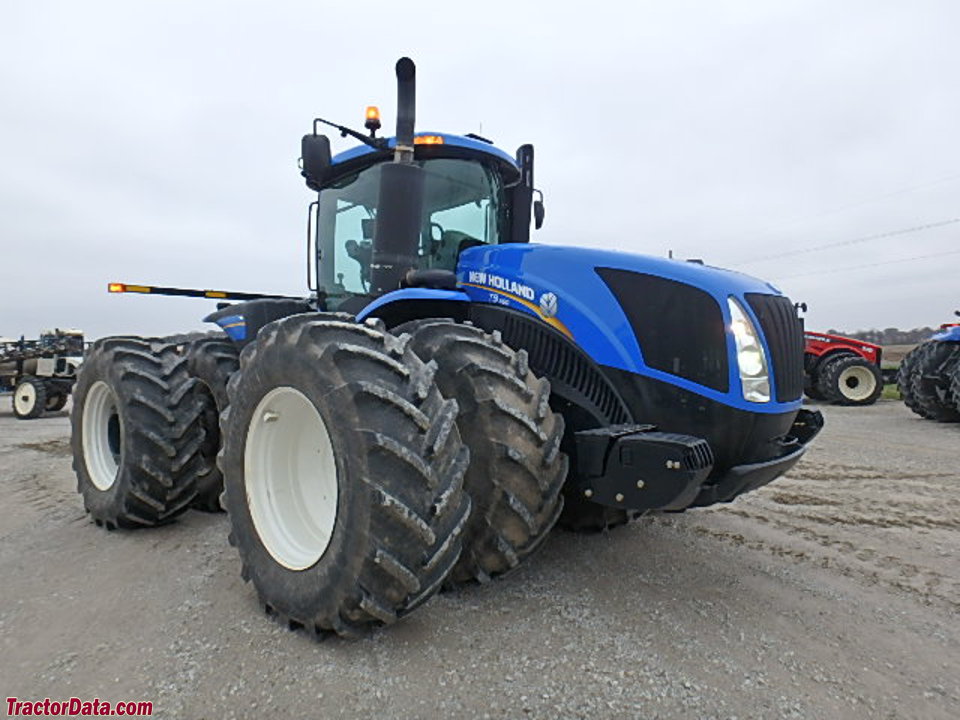

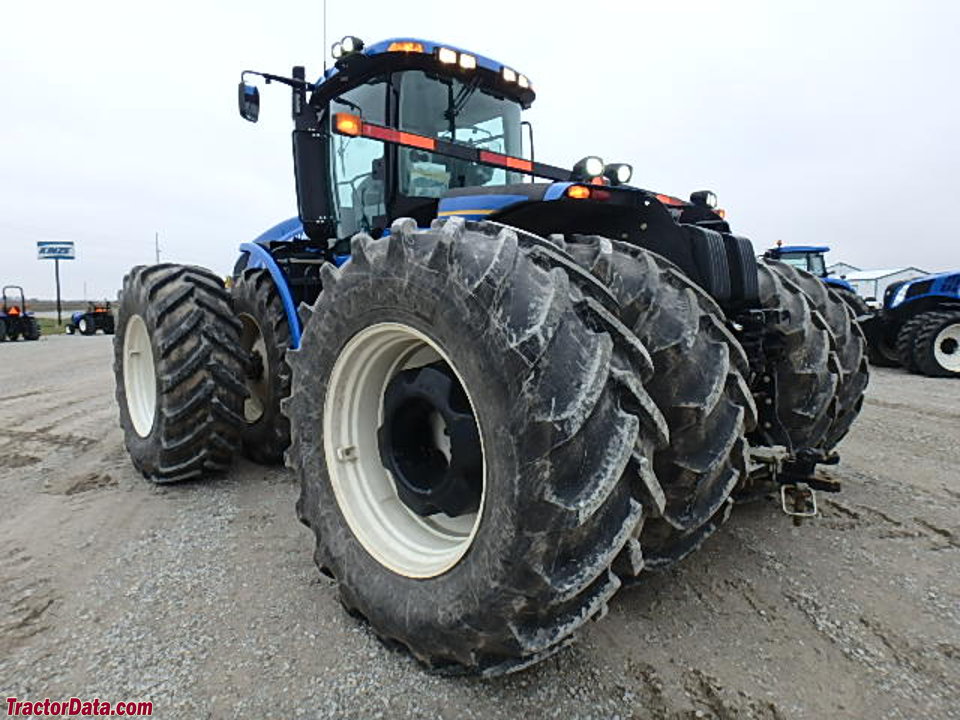

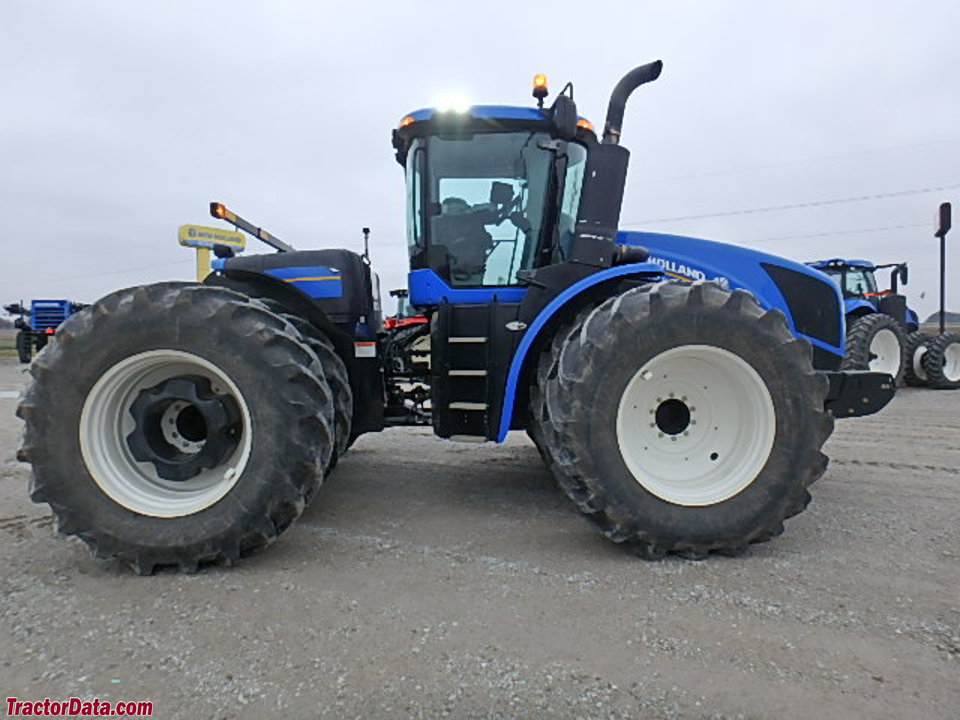

New Holland T9.560
New Holland T9.560 — T9 Series · 449 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
449 hp
Max power
372.2 kW
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Engine
FPT 12.9L 6-cyl dieselReference
Fuel tank1230.1 LReference
Exhaust fluid (DEF)174.1 LReference
Engine378.1 kWReference
Drawbar (tested)292.6 kWReference
FPTReference
wastegate turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke135 x 150 mmReference
EmissionsInterim Tier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Power378.1 kWReference
Maximum Power415.4 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts24Reference
Oil capacity30.9 LReference
Coolant capacity79.9 LReference
Max power372.2 kWReference
Power at rated engine speed334.9 kWReference
Max power292.6 kWReference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
PTO & Hydraulics
PTO (tested)372.2 kWReference
Typeclosed center load sensingReference
Pressure137.9 barReference
Rear valves4 to 8Reference
Pump flow170.3 lpmReference
Total flow159.0 lpmReference
Total flow215.7 lpmReference
Total flow370.9 lpmReference
Total flow427.7 lpmReference
Rear Type4N/3Reference
Rear lift (at 24"/610mm)9072 kgReference
Rear PTOoptionalReference
Rear PTO Type1000 (1-3/4)Reference
Power at rated PTO speed358.4 kWReference
Dimensions
Wheelbase375 cmReference
Length749 cmReference
Width92 cmReference
Height366 cmReference
Front axle127 by 3048 mmReference
Max Drawbar2404 kgReference
Max Drawbar4989 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
Capacities
Max capacity22453 kgReference
Test results
Diesel 16-speed 4WDNovember 30, 2011 - January 5, 2012Link: OCED Tractor Test 2015 fileReference
PTO performanceReference
Fuel use103.3 l/hourReference
Fuel use95.0 l/hourReference
Fuel use99.5 l/hourReference
Drawbar performanceReference
Fuel use95.4 l/hourReference
Gear 5 used for power test.Reference
Max pull16194 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
