Tractor · 2014Unverified

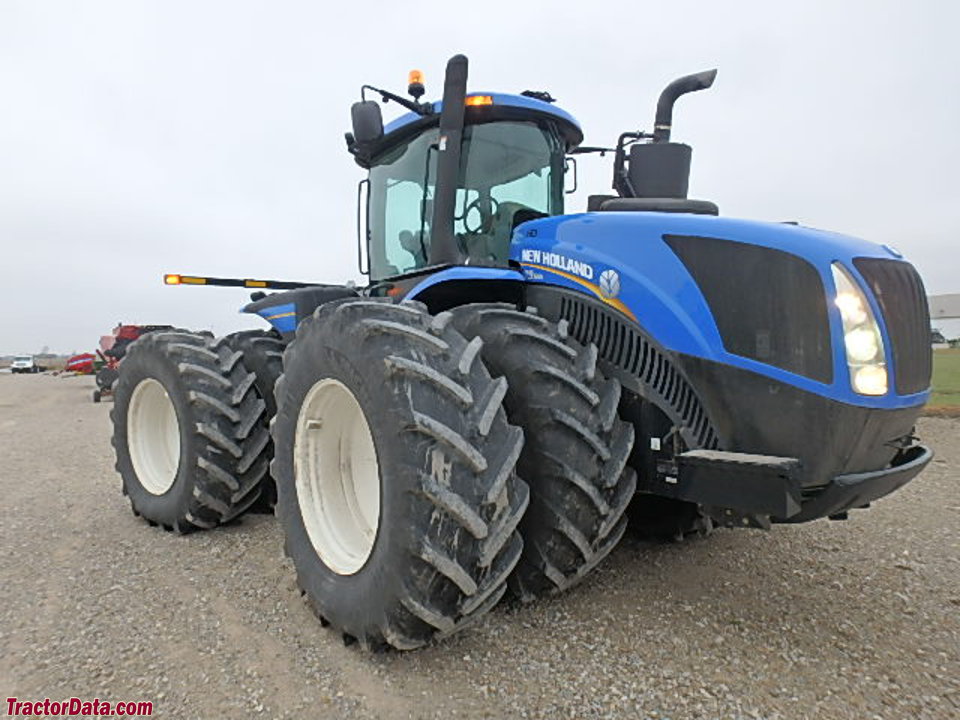

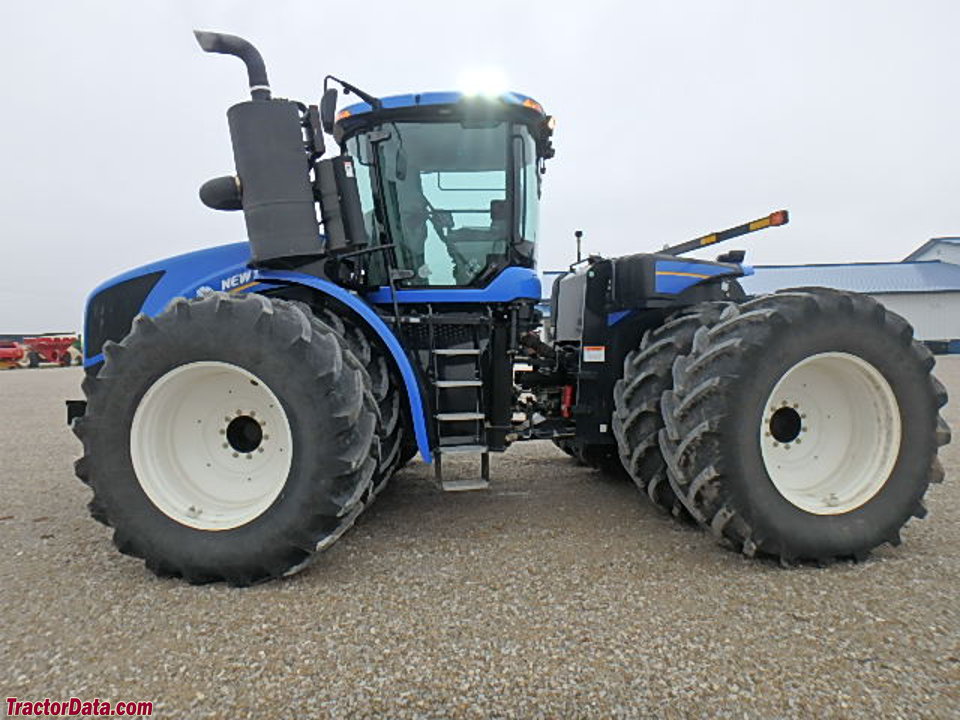

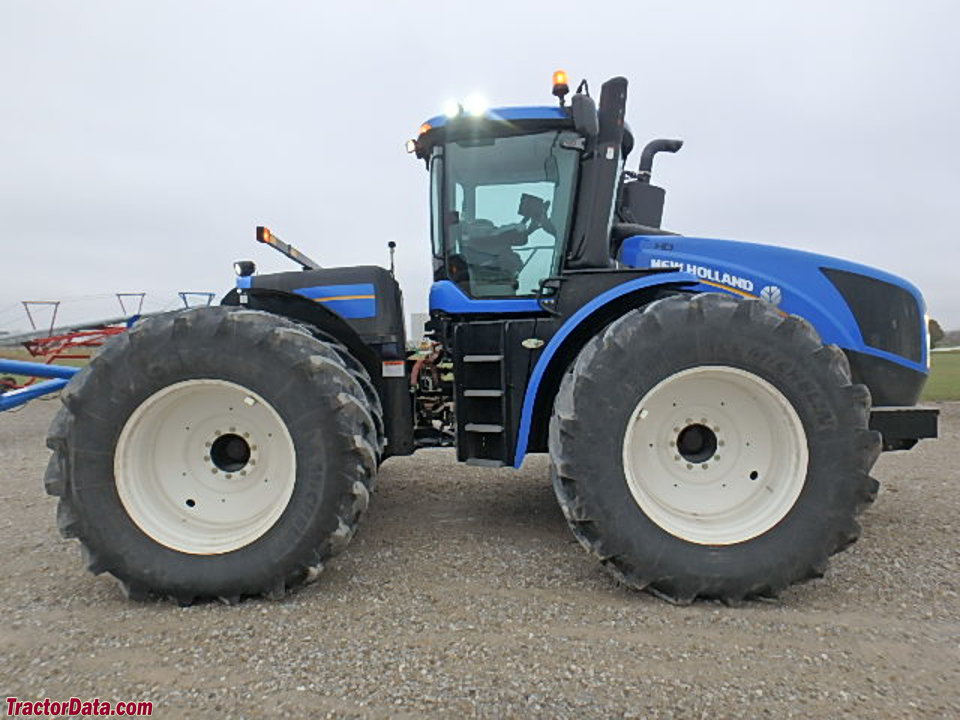

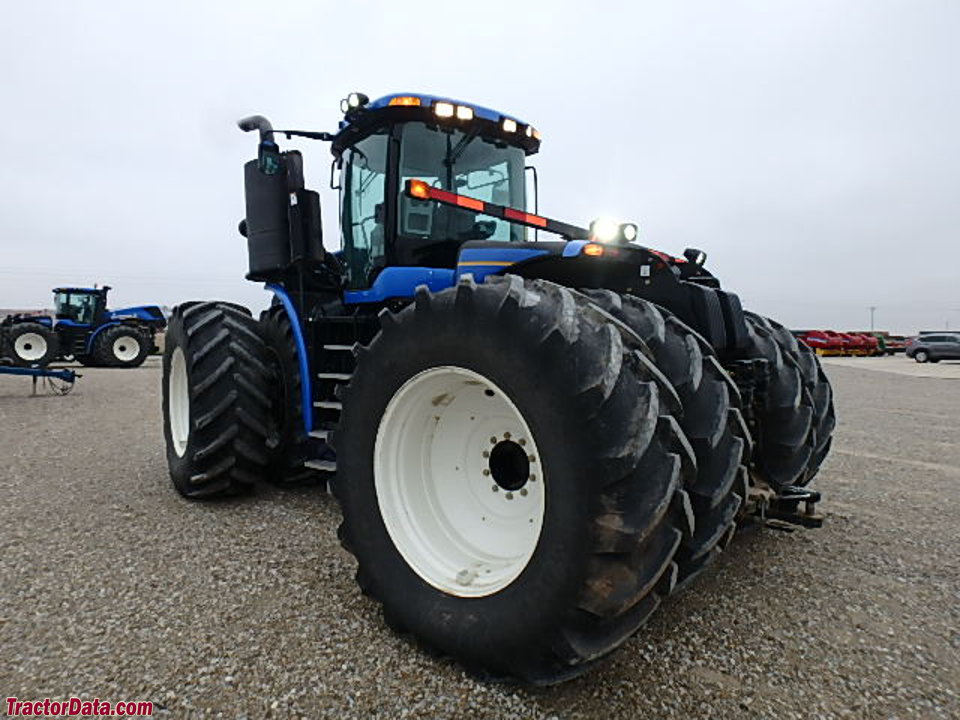

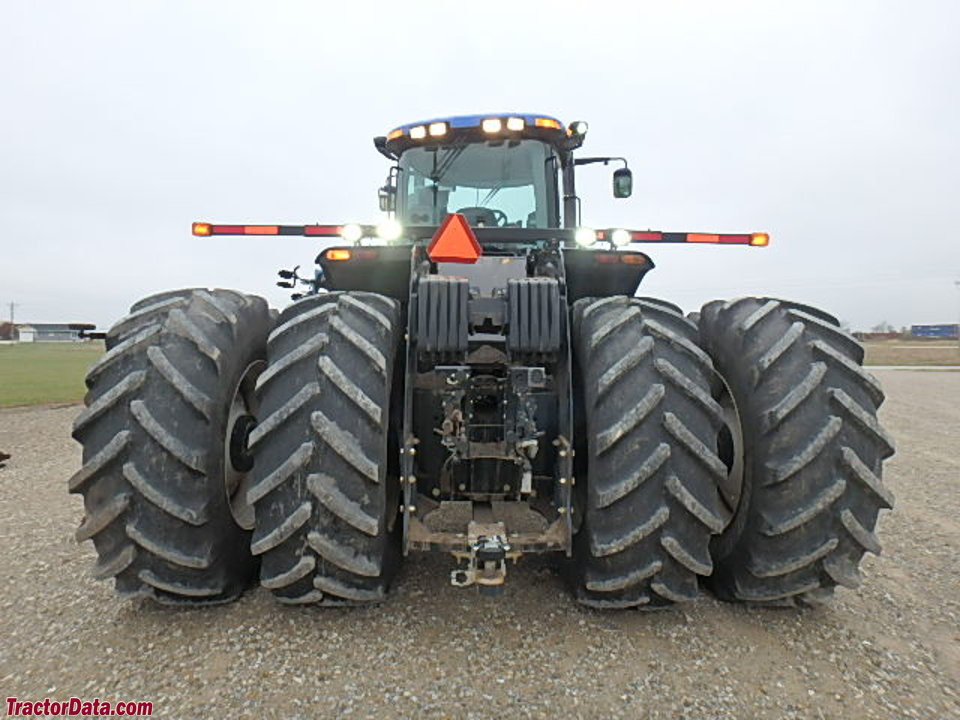

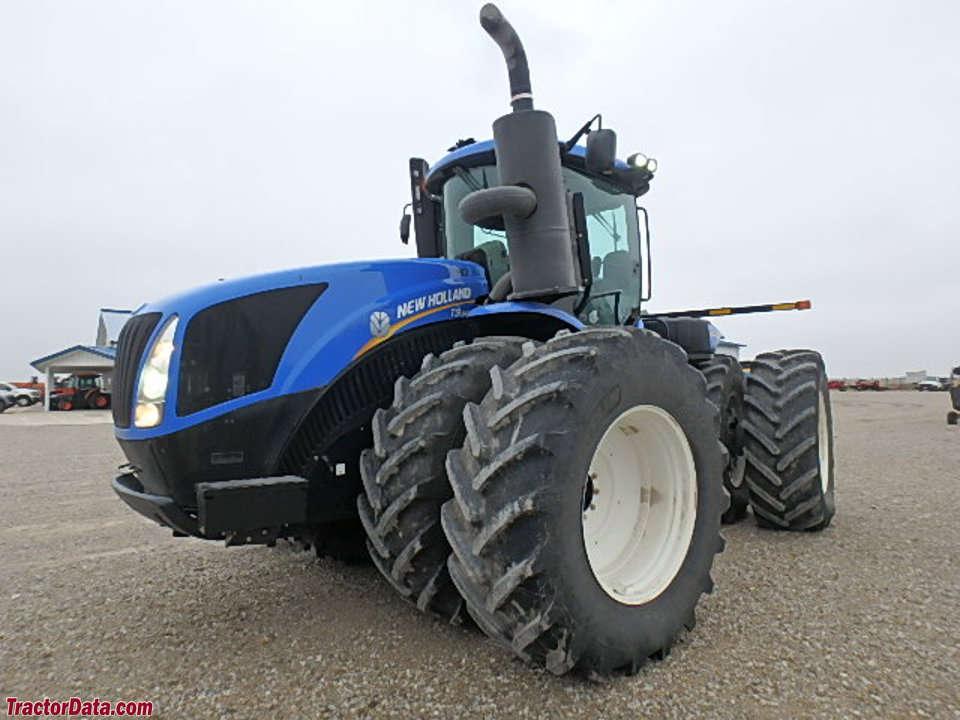

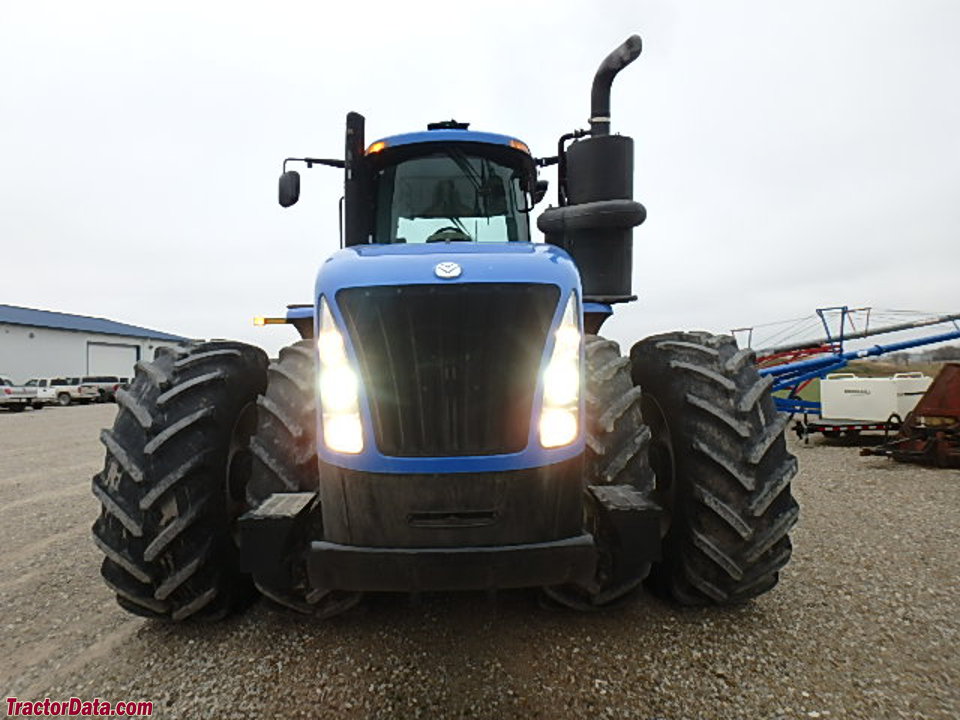

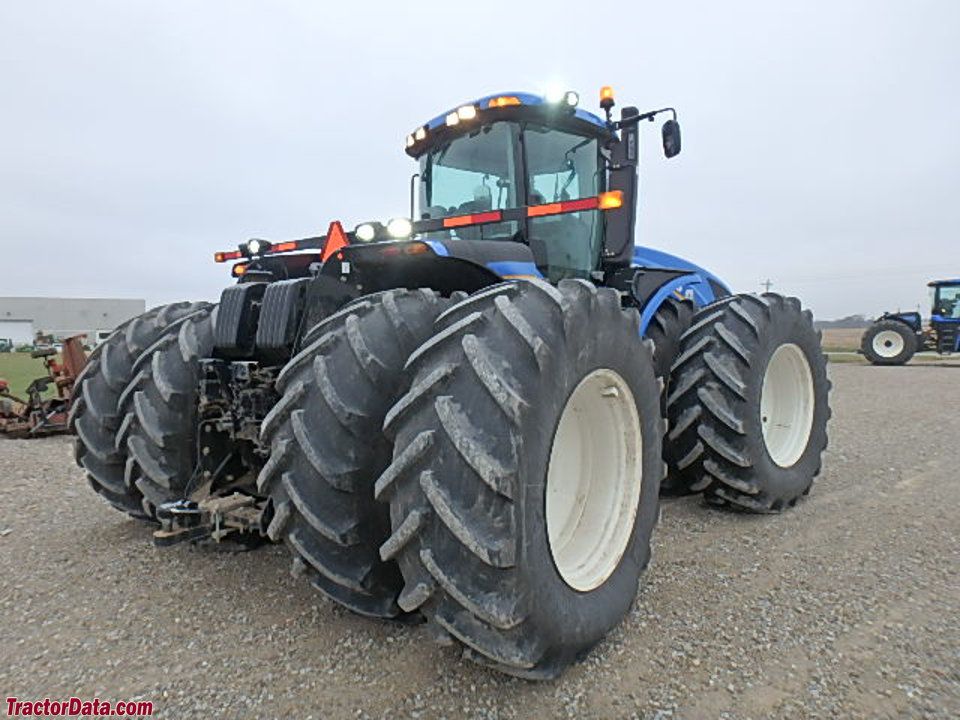

New Holland T9.565

New Holland T9.565 — T9 Series · 500 hp. Reference specifications; pending source verification.

The New Holland T9.565 is a 500 hp tractor, categorised as a high-powered machine in its class. It was produced from 2014 to 2023. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with a hydrostatic transmission and four-wheel drive, and has a listed weight of 16351 kg. The machine is designed for use on large areas, typically exceeding 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
500 hp
Max power
376.3 kW
Weight
16351 kg

Catalogue coverage

Variants represented
2
Richest spec table
94 rows
Recorded power
500 hp
Recorded weight
16351 kg
Transmissions
17-speed full power shift
Production years
2014-2023
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Steeringhydrostatic power articulatedReference
Wet disc brakesReference
Trailer brakeshydraulicReference
Cab standard with air-condioning. Optional Comfort Ride cab suspension. ISOBUS compliant; Intelliview IV; IntelliSteerReference

Variants

Steiger 500similar CaseIH modelReference

Engine

FPT 12.9L 6-cyl dieselReference
Fuel tank1230.1 LReference
Exhaust fluid (DEF)159.0 LReference
Engine (gross)372.9 kWReference
Engine (max)410.1 kWReference
Drawbar (tested)311.5 kWReference
FPT Cursor 13 SSTReference
wastegate turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke135 x 150 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction with diesel oxidation catalystReference
Rated Power (gross)372.9 kWReference
Maximum Power (gross)410.1 kWReference
Fuel systemelectronic direct-injection high pressure common railReference
Cooling systemviscous fan driveReference
Rated RPM2100Reference
Torque2374.4 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts24Reference
Max power376.3 kWReference
Power at rated engine speed334.9 kWReference
Max power311.5 kWReference

Transmission

17-speed full power shiftReference
TransmissionUltra CommandReference
Typefull power shiftReference
Gears17 forward and 2 reverseReference

PTO & Hydraulics

PTO (claimed)324.4 kWReference
PTO (tested)376.3 kWReference
Typeclosed center load sensing (CCLS)Reference
Valves4 to 8Reference
Standard Pump flow159.0 lpmReference
High-Flow Pump flow215.7 lpmReference
MegaFlow Pump flow427.7 lpmReference
Rear TypeIVNReference
Rear TypeIIINReference
Controlposition controlReference
Rear lift (at 24"/610mm)9072 kgReference
Rear Armsadjustable link endsReference
DrawbarCat. 4Reference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@1998 (early)Reference
Engine RPM1000@1811 (late)Reference
Power at rated PTO speed369.9 kWReference

Dimensions

Wheelbase375 cmReference
Weight16351 kgReference
Front tire710/70Reference
Rear tire710/70Reference
Ag front710/70 R42Reference
Ag rear710/70 R42Reference
Length739 cmReference
Width304 cmReference
Height (cab)384 cmReference
Shipping weight16351 kgReference
Max weight22453 kgReference
Front axle114 by 3048 mmReference
Bar rear axle114 by 3048 mmReference

T9.565 Serial Numbers

2014ZDFxxxxxxReference
2015ZEFxxxxxxReference
2016ZFFxxxxxxReference
2017ZGFxxxxxxReference
2018ZHFxxxxxxReference
2019ZJFxxxxxxReference
2020ZKFxxxxxxReference
2021ZLFxxxxxxReference
FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference

Test results

Diesel 16-speed 4WDSeptember 17 - 24, 2014Link: OCED Tractor Test 2097 fileReference
PTO performanceReference
Fuel use101.8 l/hourReference
Fuel use95.8 l/hourReference
Fuel use98.8 l/hourReference
Drawbar performanceReference
Gear 6 used for power test.Reference
Max pull20889 kgReference
Gear 2 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
