Tractor · 2018Unverified

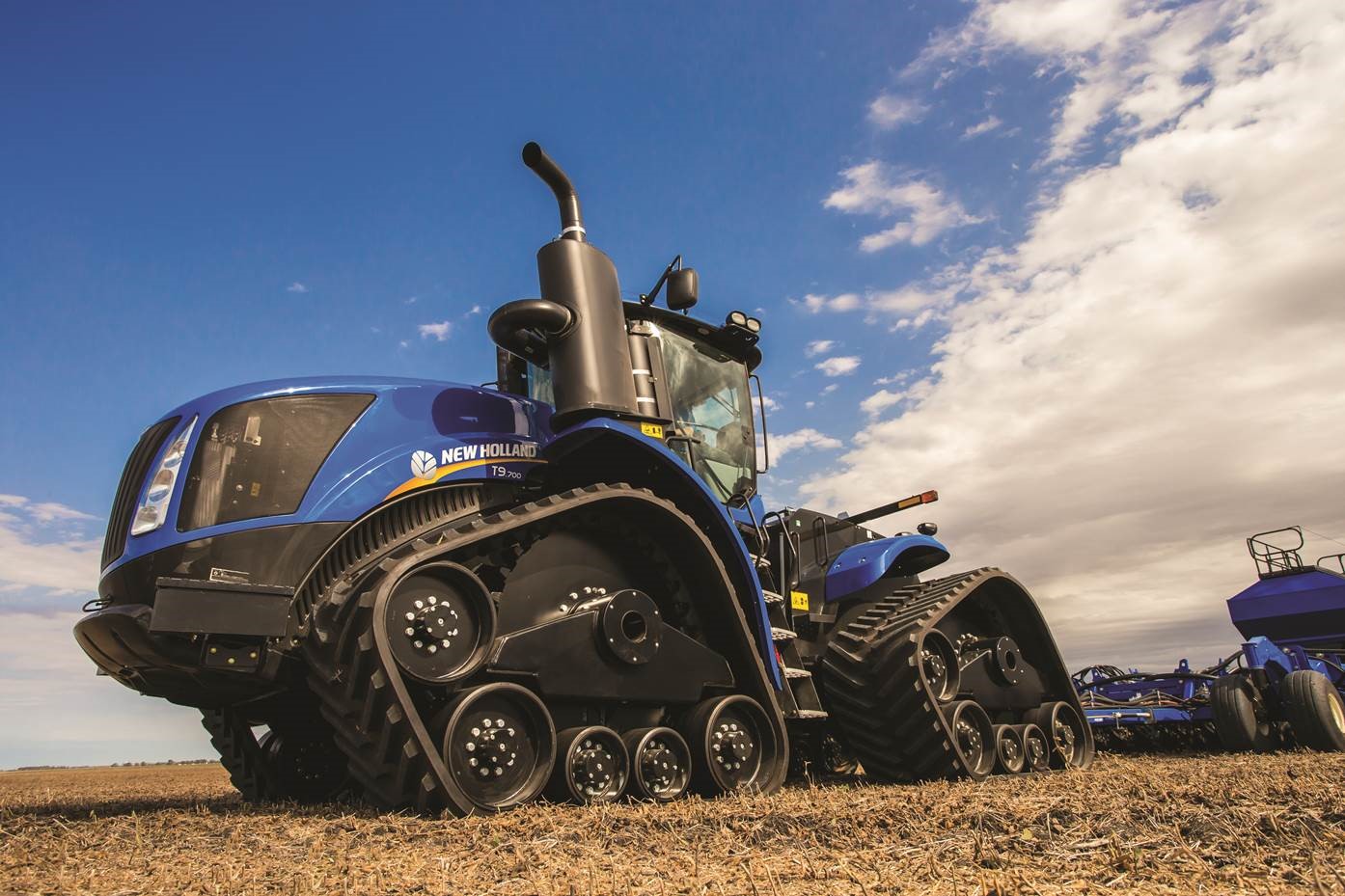

New Holland T9.565 SmartTrax II
New Holland T9.565 SmartTrax II — T9 Series · 500 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
500 hp
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Articulated Crawler tractorReference
Built in Fargo, North Dakota, USAReference
Drivearticulated crawlerReference
Steeringhydrostatic power articulatedReference
Cab standard with air-conditioning.Reference
Variants
T9.565wheeledReference
T9.565 SmartTraxcrawlerReference
Engine
FPT 12.9L 6-cyl dieselReference
Engine (gross)372.9 kWReference
Engine (max)410.1 kWReference
FPT Cursor 13 SSTReference
wastegate turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke135 x 150 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction with diesel oxidation catalystReference
Rated Power (gross)372.9 kWReference
Maximum Power (gross)410.1 kWReference
Fuel systemelectronic direct-injection high pressure common railReference
Cooling systemviscous fan driveReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Transmission
17-speed full power shiftReference
TransmissionUltra CommandReference
Typefull power shiftReference
Gears17 forward and 2 reverseReference
Dimensions
TracksReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
