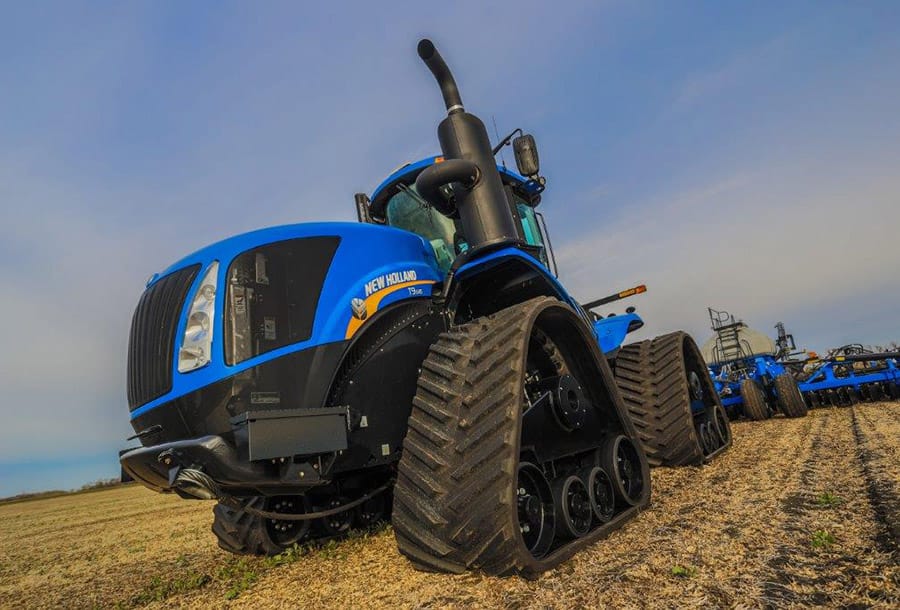

New Holland T9.600 SmartTrax II
New Holland T9.600 SmartTrax II — T9 Series · 535 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
535 hp
Weight
26639 kg
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Articulated Crawler tractorReference
Built in Fargo, North Dakota, USAReference
Drivearticulated crawlerReference
Steeringhydrostatic power articulatedReference
Wet disc brakesReference
Trailer brakeshydraulicReference
Cab standard with air-condioning. Optional Comfort Ride cab suspension. ISOBUS compliant; Intelliview IV; IntelliSteerReference
Variants
T9.600wheeledReference
T9.600 SmartTraxcrawlerReference
Engine
FPT 12.9L 6-cyl dieselReference
Fuel tank1173.4 LReference
Exhaust fluid (DEF)249.8 LReference
Engine (gross)398.9 kWReference
Engine (max)451.1 kWReference
FPT Cursor 13 TSTReference
two-stage turbocharged inter-cooled and aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke135 x 150 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction with diesel oxidation catalystReference
Rated Power (gross)398.9 kWReference
Maximum Power (gross)451.1 kWReference
Fuel systemelectronic direct-injection high pressure common railReference
Cooling systemhydraulic fan driveReference
Rated RPM2100Reference
Torque2539.8 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts24Reference
Transmission
17-speed full power shiftReference
TransmissionUltra CommandReference
Typefull power shiftReference
Gears17 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)356.4 kWReference
Typeclosed center load sensing (CCLS)Reference
Valves4 to 8Reference
Standard Pump flow159.0 lpmReference
High-Flow Pump flow215.7 lpmReference
MegaFlow Pump flow427.7 lpmReference
Rear TypeIVNReference
Controlposition controlReference
Rear lift (at 24"/610mm)8900 kgReference
Rear Armsadjustable link endsReference
DrawbarCat. 4Reference
DrawbarCat. 5Reference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Dimensions
Wheelbase391 cmReference
Weight26639 kgReference
36-inch tracksReference
Shipping weight26639 kgReference
Max weight27216 kgReference
Front axle114 by 3048 mmReference
Bar rear axle114 by 3048 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
New Holland T9.600 SmartTrax II Tracks
Width91 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
