Tractor · 2014Unverified
New Holland T9.645
New Holland T9.645 — T9 Series · 580 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
580 hp
Max power
402.9 kW
Weight
19979 kg
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Steeringhydrostatic power articulatedReference
Wet disc brakesReference
Trailer brakeshydraulicReference
Cab standard with air-condioning. Optional Comfort Ride cab suspension. ISOBUS compliant; Intelliview IV; IntelliSteerReference
Variants
T9.645wheeledReference

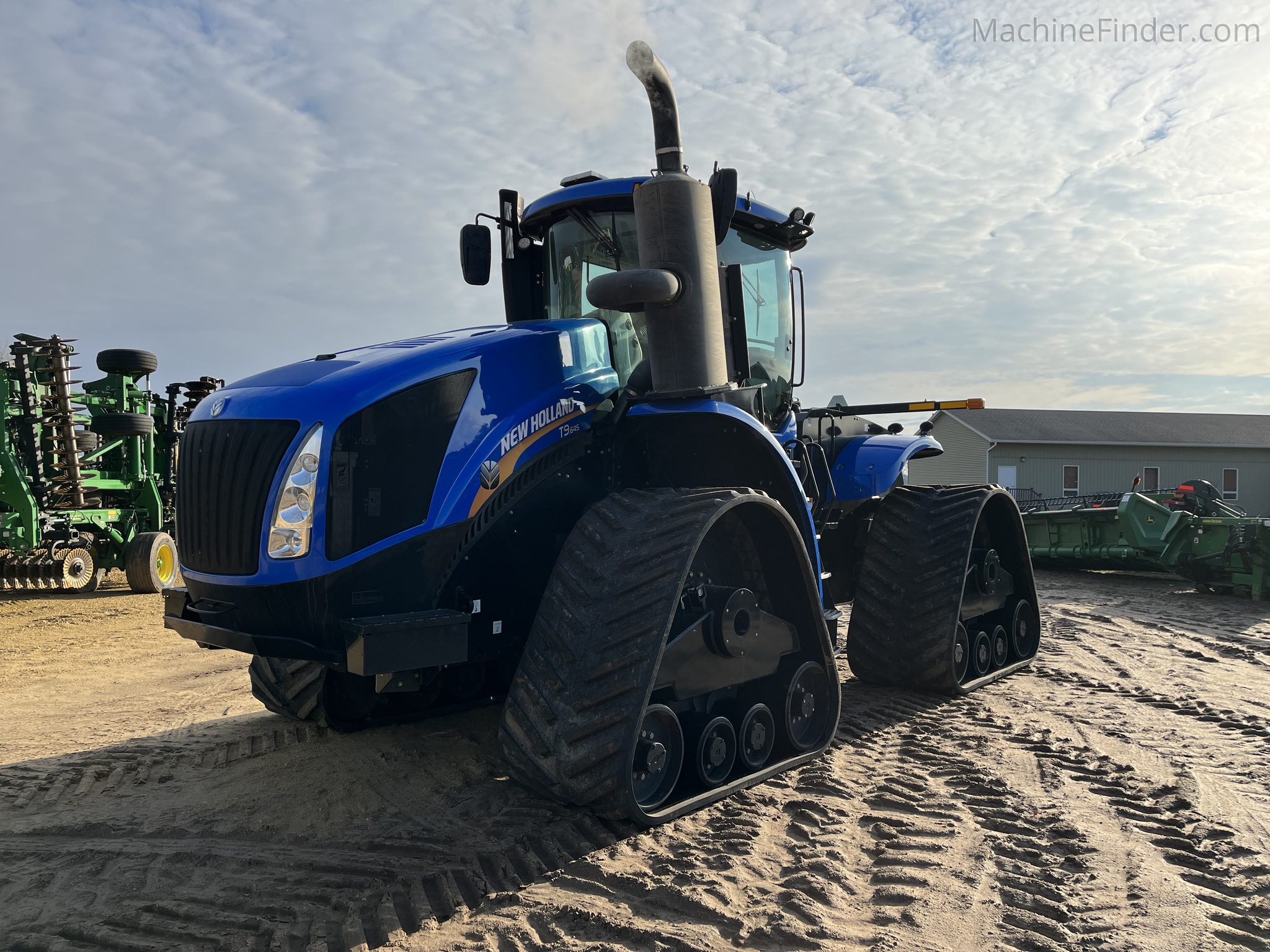

T9.645 SmartTraxcrawlerReference
Steiger 580similar CaseIH modelReference
Engine
FPT 12.9L 6-cyl dieselReference
Fuel tank1816.8 LReference
Exhaust fluid (DEF)249.8 LReference
Engine (gross)432.5 kWReference
Engine (max)475.8 kWReference
Drawbar (tested)369.3 kWReference
FPT Cursor 13 TSTReference
two-stage turbocharged inter-cooled and aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke135 x 150 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction with diesel oxidation catalystReference
Rated Power (gross)432.5 kWReference
Maximum Power (gross)475.8 kWReference
Fuel systemelectronic direct-injection high pressure common railReference
Cooling systemhydraulic fan driveReference
Rated RPM2100Reference
Torque2756.7 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts24Reference
Max power402.9 kWReference
Power at rated engine speed356.0 kWReference
Max power369.3 kWReference
Transmission
17-speed full power shiftReference
TransmissionUltra CommandReference
Typefull power shiftReference
Gears17 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)352.7 kWReference
PTO (tested)402.9 kWReference
Typeclosed center load sensing (CCLS)Reference
Valves4 to 8Reference
Standard Pump flow159.0 lpmReference
High-Flow Pump flow215.7 lpmReference
MegaFlow Pump flow427.7 lpmReference
Rear TypeIVNReference
Controlposition controlReference
Rear lift (at 24"/610mm)8900 kgReference
Rear Armsadjustable link endsReference
DrawbarCat. 4Reference
DrawbarCat. 5Reference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@1811Reference
Power at rated PTO speed399.6 kWReference
Dimensions
Wheelbase391 cmReference
Weight19979 kgReference
Front tire710/70Reference
Rear tire710/70Reference
Ag front710/70 R42Reference
Ag rear710/70 R42Reference
Length749 cmReference
Width304 cmReference
Height (cab)396 cmReference
Shipping weight19979 kgReference
Max weight29937 kgReference
Front axle139 by 3048 mmReference
Bar rear axle139 by 3048 mmReference
T9.645 Serial Numbers
2014ZDFxxxxxxReference
2015ZEFxxxxxxReference
2016ZFFxxxxxxReference
2017ZGFxxxxxxReference
2018ZHFxxxxxxReference
2019ZJFxxxxxxReference
2020ZKFxxxxxxReference
2021ZLFxxxxxxReference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDOctober 6 - 11, 2016Link: OCED Tractor Test 2162A fileReference
PTO performanceReference
Fuel use105.6 l/hourReference
Fuel use98.4 l/hourReference
Fuel use103.3 l/hourReference
Drawbar performanceReference
Fuel use107.1 l/hourReference
Gear 5 used for power test.Reference
Max pull24754 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
