Tractor · 2024Unverified

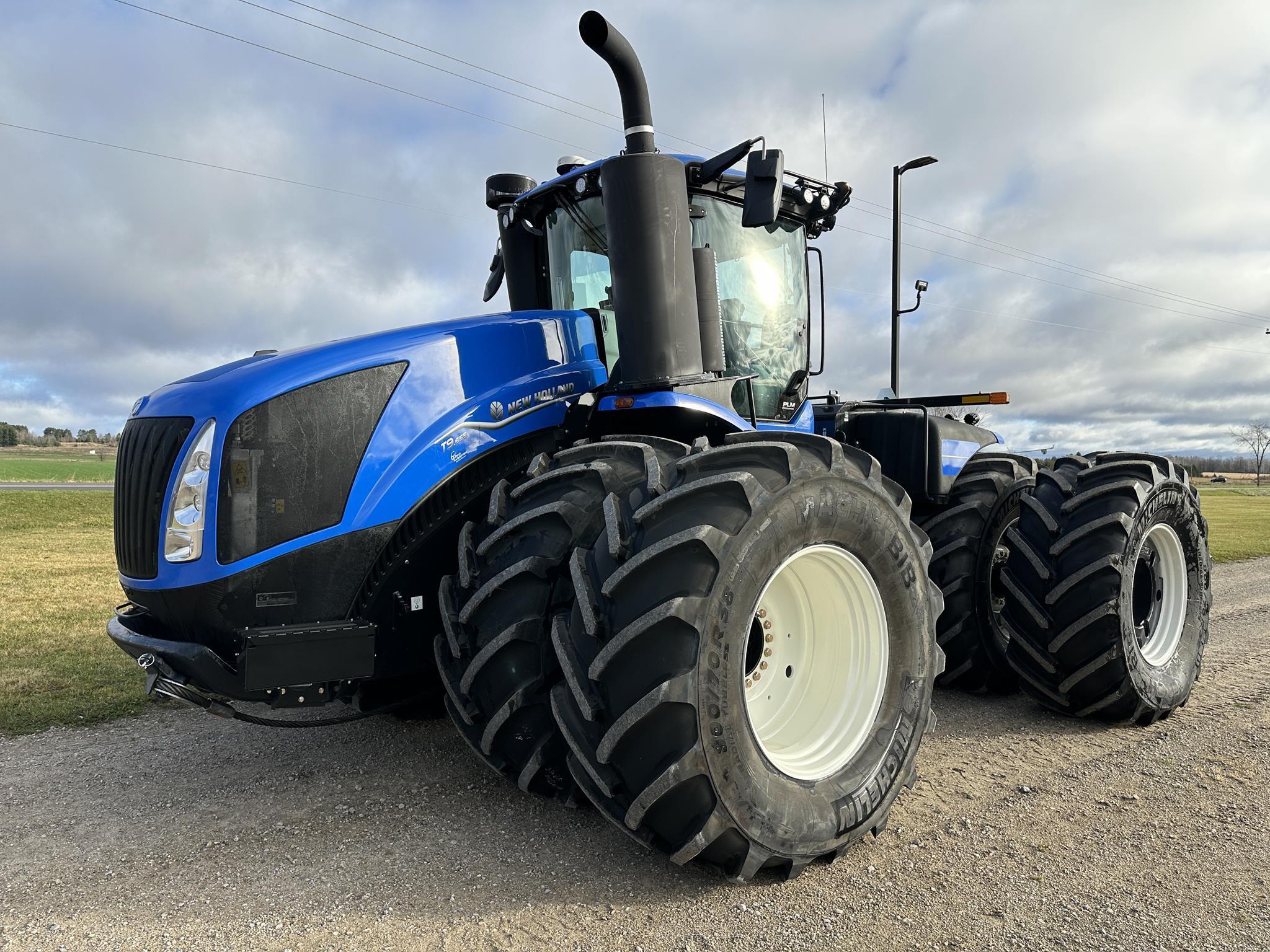

New Holland T9.655

Name: New Holland T9.655
Brand: New Holland

New Holland T9.655 — T9 Series · 587 hp. Reference specifications; pending source verification.

The New Holland T9.655 is a high-powered tractor with a rated output of 587 horsepower. It was produced in 2024. The tractor features a 6-cylinder turbocharged intercooled diesel engine, which drives four-wheel drive through a powershift transmission. Its listed weight is 22,828 kg, and it is designed for use in large-scale applications of approximately 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

587 hp

Weight

22828 kg

Catalogue coverage

Variants represented

Richest spec table

60 rows

Recorded power

587 hp

Recorded weight

22828 kg

Transmissions

17-speed full power shift

Production years

2024-2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

Original price was $804,065 in 2026Reference

Four-wheel driveReference

Final drivesplanetaryReference

Differential lockautomatic front and rearReference

Articulated power steeringReference

Brakeshydraulic wet discReference

Brakesengine brakeReference

Cab standard with air-conditioning.Reference

Engine

FPT 12.9L 6-cyl dieselReference

Fuel tank1665.4 LReference

Exhaust fluid (DEF)249.8 LReference

Engine (gross)437.7 kWReference

Engine (max)482.5 kWReference

FPT Cursor 13Reference

turbocharged intercooled aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement12.9 LReference

Bore/Stroke135 x 150 mmReference

EmissionsTier IVReference

Rated Power (gross)437.7 kWReference

Maximum Power (gross)482.5 kWReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Transmission

17-speed full power shiftReference

TransmissionUltra CommandReference

Typefull power shiftReference

Gears17 forward and 2 reverseReference

PTO & Hydraulics

PTO (claimed)394.9 kWReference

Typeclosed centerReference

Pump flow159.0 lpmReference

Pump flow215.7 lpmReference

Pump flow370.9 lpmReference

Pump flow427.7 lpmReference

Rear TypeIVNReference

Rear lift (at 24"/610mm)10319 kgReference

DrawbarCat 4Reference

DrawbarCat 5Reference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Engine RPM1000@1811Reference

Dimensions

Wheelbase391 cmReference

Weight22828 kgReference

Front axle139 by 3048 mmReference

Bar rear axle139 by 3048 mmReference

Shipping22828 kgReference

Max Drawbar4989 kgReference

Max Drawbar6804 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps240Reference

Charging amps330Reference

Batteries3Reference

Battery CCA950Reference

Battery volts12Reference

Capacities

Max capacity30391 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
