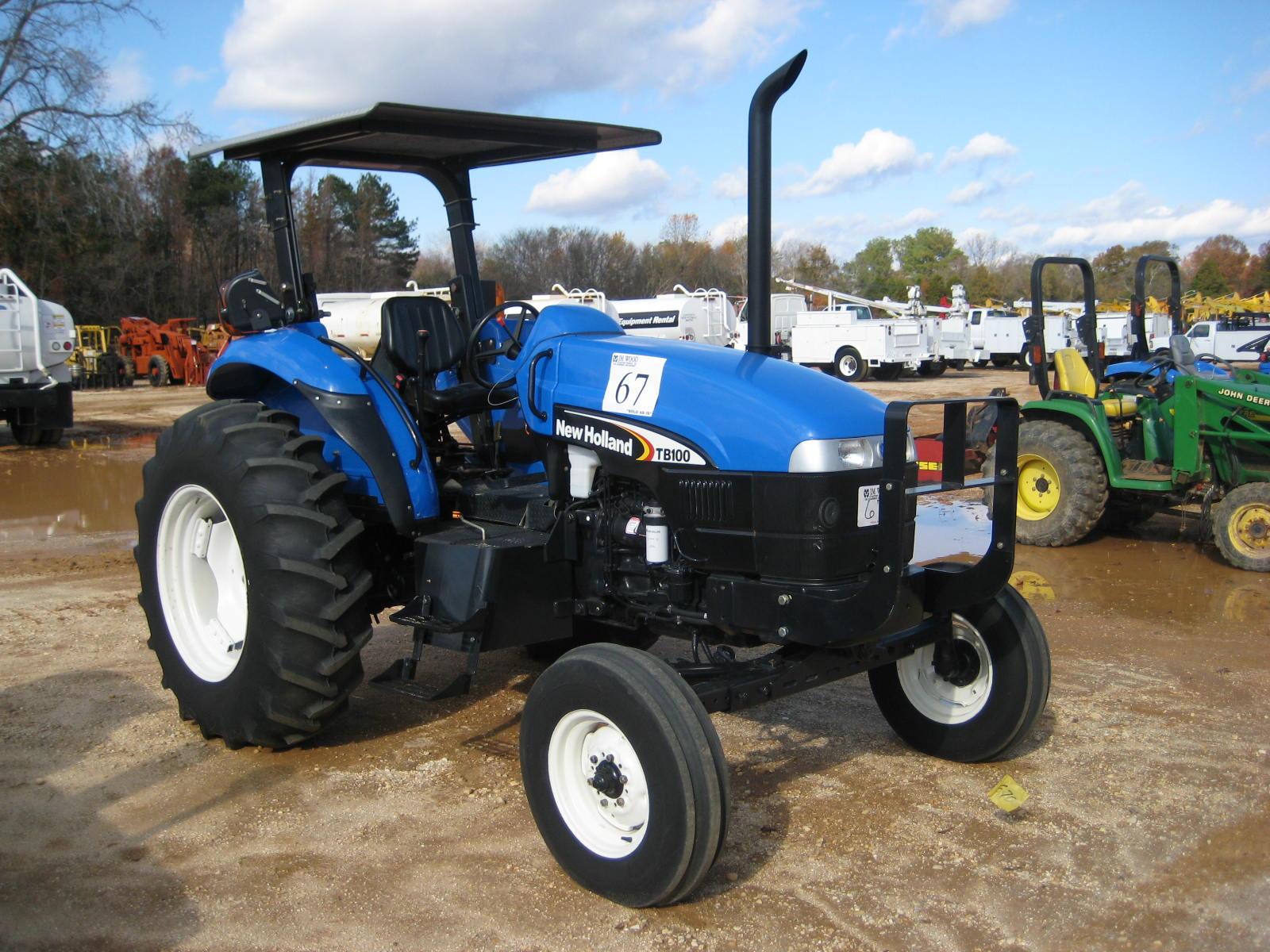

New Holland TB100
New Holland TB100 — TB Series · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
6075 to 6925 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Two-post folding ROPS.Reference
Engine
New Holland 5.0L 4-cyl dieselReference
Engine74.6 kWReference
New HollandReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement5.0 LReference
Bore/Stroke112 x 127 mmReference
EmissionsTier IIReference
Power74.6 kWReference
Pre-heatingthermostartReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Oil capacity11.4 LReference
Coolant capacity12.9 LReference
Transmission
8-speed gearReference
16-speed two-speed power shiftReference
12-speed creeperReference
TypegearReference
Gears8 forward and 2 reverseReference
TransmissionDual CommandReference
Typetwo-speed power shiftReference
Gears16 forward and 4 reverseReference
TypecreeperReference
Gears12 forward and 3 reverseReference
The creeper adds an addition low range to the standard 8x2 transmission.Reference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
Hydraulic system56.8 LReference
Typeopen centerReference
Capacity56.8 LReference
Pressure172.4 barReference
Valves2Reference
Pump flow35.2 lpmReference
Pump flow67.4 lpmReference
Total flow70.0 lpmReference
Total flow102.6 lpmReference
Steering flow34.8 lpmReference
Rear TypeIIReference
Controlmechanical top-link draft sensingReference
Rear lift (at ends)1905 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540Reference
Capacities
Fuel140.0 LReference
Dimensions
2WD Wheelbase230 cmReference
4WD Wheelbase225 cmReference
Weight6075 to 6925 poundsReference
2WD Length373 cmReference
4WD Length386 cmReference
Height (ROPS)252 cmReference
Height (Folded ROPS)225 cmReference
2WD Weight2755 kgReference
4WD Weight3141 kgReference
2WD Clearance (front axle)48 cmReference
4WD Clearance (front axle)45 cmReference
2WD Front tread142 to 203 cmReference
4WD Front tread152 to 203 cmReference
Rear tread162 to 203 cmReference
New Holland TB100 attachments
front-end loaderReference
TB100 Serial Numbers
Location:Serial number decal under the hood, at the rear.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
