Tractor · 2003Unverified

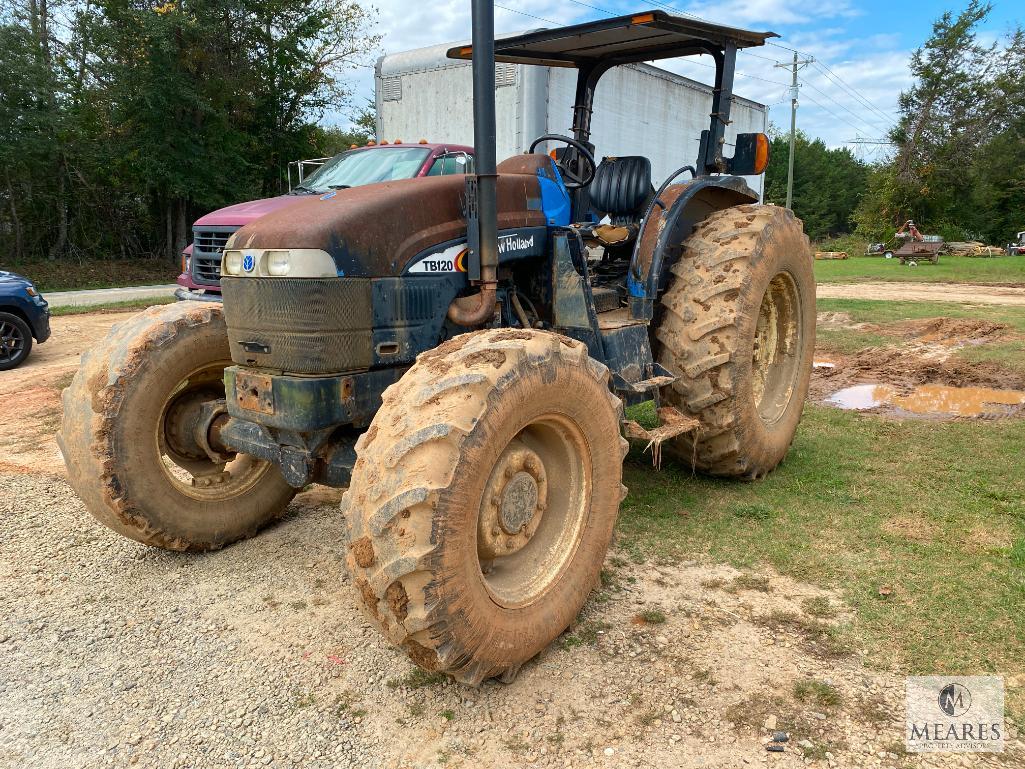

New Holland TB120

Name: New Holland TB120
Brand: New Holland

New Holland TB120 — TB Series · 96 hp. Reference specifications; pending source verification.

The New Holland TB120 is a tractor with a rated output of 96 hp, placing it in the middle of its class for power. It was manufactured from 2003 to 2007 and features a 6-cylinder diesel liquid-cooled engine, which drives through four-wheel drive with a powershift transmission. The listed weight of the TB120 is 6525 to 7380 pounds. It is suitable for tasks involving approximately 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

96 hp

Weight

6525 to 7380 pounds

Catalogue coverage

Variants represented

Richest spec table

74 rows

Recorded power

96 hp

Recorded weight

2959 kg

Transmissions

8-speed gear

Production years

2003-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Two- or four-wheel driveReference

Power steeringReference

Two-post folding ROPS.Reference

Variants

TB120LPlow-profileReference

TB120HChigh-clearanceReference

Engine

New Holland 7.5L 6-cyl dieselReference

Engine89.5 kWReference

New HollandReference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement7.5 LReference

Bore/Stroke112 x 127 mmReference

EmissionsTier IIReference

Power89.5 kWReference

Pre-heatingthermostartReference

Rated RPM2100Reference

Torque485.4 NmReference

Torque RPM1200Reference

StarterelectricReference

Starter volts12Reference

Oil capacity19.7 LReference

Coolant capacity15.9 LReference

Transmission

8-speed gearReference

16-speed two-speed power shiftReference

12-speed creeperReference

TypegearReference

Gears8 forward and 2 reverseReference

TransmissionDual CommandReference

Typetwo-speed power shiftReference

Gears16 forward and 4 reverseReference

TypecreeperReference

Gears12 forward and 3 reverseReference

The creeper adds an addition low range to the standard 8x2 transmission.Reference

PTO & Hydraulics

PTO (claimed)71.6 kWReference

Hydraulic system56.8 LReference

Typeopen centerReference

Capacity56.8 LReference

Pressure172.4 barReference

Valves2Reference

Pump flow35.2 lpmReference

Pump flow67.4 lpmReference

Total flow70.0 lpmReference

Total flow102.6 lpmReference

Steering flow34.8 lpmReference

Rear TypeIIReference

Controlmechanical top-link draft sensingReference

Rear lift (at ends)1905 kgReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540/1000Reference

Capacities

Fuel140.0 LReference

Dimensions

2WD Wheelbase255 cmReference

4WD Wheelbase249 cmReference

Weight6525 to 7380 poundsReference

2WD Length397 cmReference

4WD Length410 cmReference

Height (ROPS)252 cmReference

Height (Folded ROPS)225 cmReference

2WD Weight2959 kgReference

4WD Weight3347 kgReference

2WD Clearance (front axle)50 cmReference

4WD Clearance (front axle)43 cmReference

2WD Front tread142 to 203 cmReference

4WD Front tread152 to 203 cmReference

Rear tread162 to 203 cmReference

New Holland TB120 attachments

front-end loaderReference

TB120 Serial Numbers

Location:Serial number decal under the hood, at the rear.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
