Tractor · 1999Unverified
New Holland TC21
New Holland TC21 — Boomer TC Series · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
1450 to 1535 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Compact Utility tractorReference
Original price was $12,500 in 2000Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Folding ROPS on hydrostatic (D) model.Reference
Variants
TC21gearReference
TC21DhydrostaticReference
Engine
Shibura 1.0L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine (gross)15.7 kWReference
ShiburaReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke77 x 72 mmReference
Power (gross)15.7 kWReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
Starter volts12Reference
Transmission
9-speed gearReference
hydrostaticReference
Gear Charging amps20Reference
TypegearReference
Gears9 forward and 3 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Gear PTO (claimed)12.7 kWReference
Hydro PTO (claimed)11.9 kWReference
Typeopen centerReference
Valves2Reference
Gear Pump flow15.1 lpmReference
Hydro Pump flow18.5 lpmReference
Gear Total flow25.5 lpmReference
Hydro Total flow29.0 lpmReference
Steering flow10.4 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)573 kgReference
Gear Rear PTOtransmissionReference
Hydro Rear PTOliveReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase140 cmReference
Weight1450 to 1535 poundsReference
Front tire5.00-12Reference
Rear tire8x16Reference
Ag front5.00-12Reference
Ag front6.00-12Reference
Ag rear8x16Reference
Ag rear9.5-16Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear29x12.00-15Reference
Industrial front23x8.50-12Reference
Industrial rear12x16.5Reference
Length270 cmReference
Width104 cmReference
Height (ROPS)206 cmReference
TC21 Shipping weight657 kgReference
TC21D Shipping weight696 kgReference
Ground clearance25 cmReference
Front tread84 cmReference
Rear tread89 cmReference
New Holland TC21 attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
TC21 Serial Numbers
1998G003207Reference
1999UF30352Reference
2000UF31353Reference
2001UF32159Reference
2002UF32870Reference
2003UF33269Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Hydro Charging amps35Reference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
New Holland 7106 loaderReference

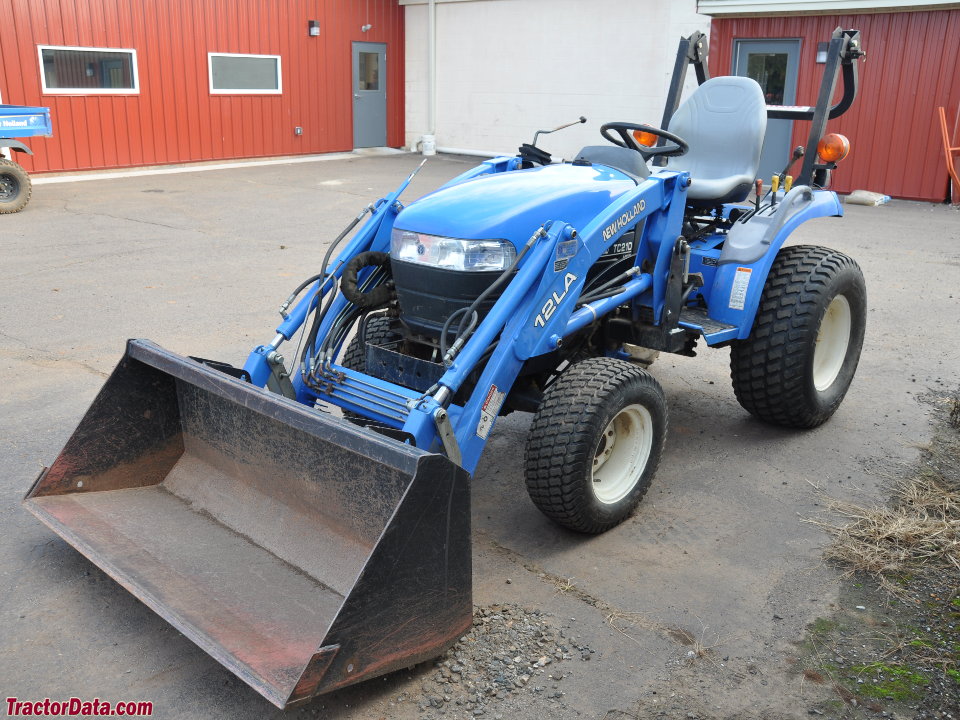

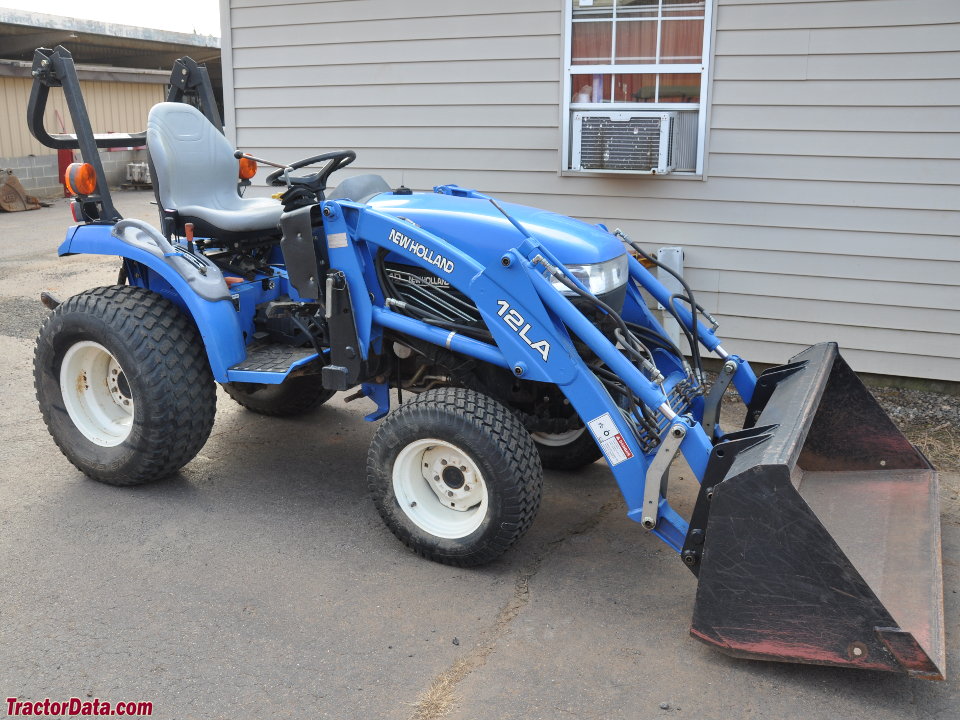

New Holland 12LA loaderReference
BackhoeReference
New Holland 756C Backhoe
Backhoe typeNew Holland 756C BackhoeReference
Transport height173 cmReference
2-Foot flat digging depth182 cmReference
8-Foot flat digging depth142 cmReference
Reach from pivot271 cmReference
Loading height144 cmReference
Bucket Rotation171°Reference
Swing Arc180°Reference
Bucket force1304 kgReference
Dipperstick force791 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
