Tractor · 2005Unverified

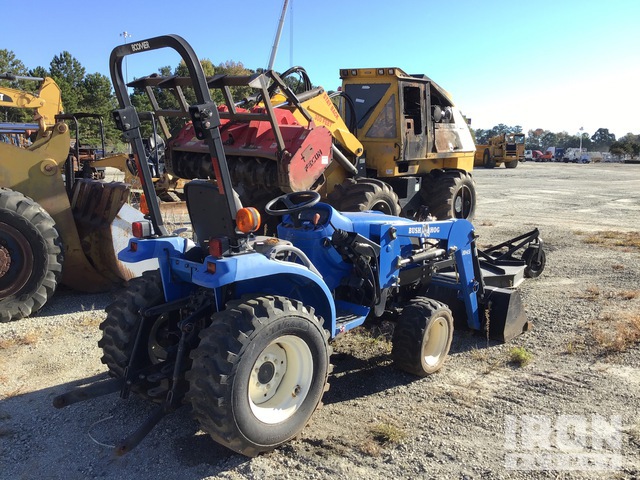

New Holland TC23DA

Name: New Holland TC23DA
Brand: New Holland

New Holland TC23DA — Boomer TC-A Series · 23 hp. Reference specifications; pending source verification.

The New Holland TC23DA is a tractor rated at approximately 23 horsepower, positioning it at the lower end of its class. Produced from 2005 to 2008, this model is equipped with a 3-cylinder diesel liquid-cooled engine and four-wheel drive, paired with a hydrostatic transmission. Its listed operating weight is 722 kg, and it is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

23 hp

Weight

722 kg

Catalogue coverage

Variants represented

Richest spec table

88 rows

Recorded power

23 hp

Recorded weight

722 kg

Transmissions

hydrostatic

Production years

2005-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Compact Utility tractorReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Two-post folding ROPS.Reference

Variants

DX23similar CaseIH modelReference

Engine

Shibaura 1.0L 3-cyl dieselReference

Engine (gross)17.2 kWReference

Shibaura S773Reference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.0 LReference

Bore/Stroke77 x 72 mmReference

Power (gross)17.2 kWReference

Rated RPM2850Reference

Starter volts12Reference

Transmission

hydrostaticReference

9-speed gearReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

TypegearReference

Gears9 forward and 3 reverseReference

Clutch184mm dry discReference

PTO & Hydraulics

Hydro PTO (claimed)13.0 kWReference

Gear PTO (claimed)13.8 kWReference

Hydraulic system16.0 LReference

Typeopen centerReference

Capacity16.0 LReference

Pressure127.5 barReference

Pump flow20.1 lpmReference

Total flow31.4 lpmReference

Steering flow11.4 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at 24"/610mm)573 kgReference

Gear Rear PTOtransmissionReference

Hydro Rear PTOindependentReference

Clutchmechanical dry discReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2388 (gear)Reference

Engine RPM540@2503 (hydro)Reference

Gear Mid PTOtransmissionReference

Hydro Mid PTOindependentReference

Mid PTO Type2000 (1.0)Reference

Capacities

Fuel20.1 LReference

Dimensions

Wheelbase146 cmReference

Weight722 kgReference

Front tire5-12Reference

Rear tire9.5-16Reference

Weight317 kgReference

Ag front5-12Reference

Ag rear9.5-16Reference

Ag front6-12Reference

Lawn/turf front23x8.50-12Reference

Lawn/turf rear31x13.5-15Reference

Industrial front23x8.50-12Reference

Industrial rear12-16.5Reference

Length270 cmReference

Width113 cmReference

Height (ROPS)206 cmReference

New Holland TC23DA attachments

54" mid-mount mower deckReference

60" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

54" mid-mount mower deckReference

60" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

New Holland 756C Backhoe

Backhoe typeNew Holland 756C BackhoeReference

Transport height173 cmReference

2-Foot flat digging depth182 cmReference

8-Foot flat digging depth142 cmReference

Reach from pivot271 cmReference

Loading height144 cmReference

Bucket Rotation171°Reference

Swing Arc180°Reference

Bucket force1304 kgReference

Dipperstick force796 kgReference

Speeds

With 29x10.00-15 R3 rear tires.Reference

With 9.5-16 R1 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
