Tractor · 1999Unverified

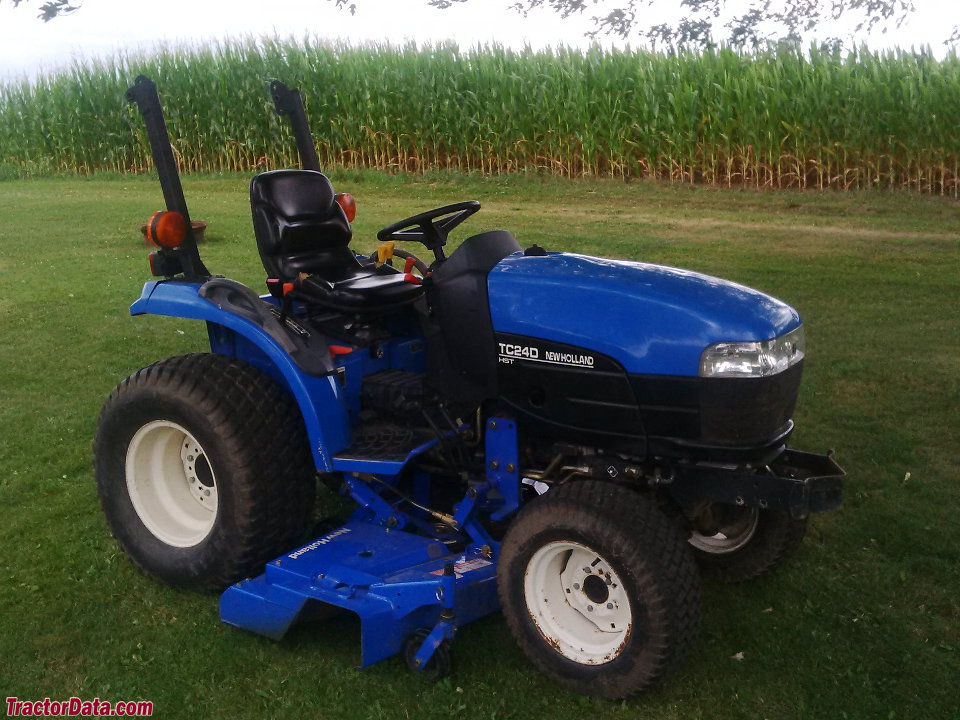

New Holland TC24D
New Holland TC24D — Boomer TC Series · 24 hp. Reference specifications; pending source verification.
The New Holland TC24D is a tractor model with a rated power of 24 hp, positioning it at the lighter end of its class. Manufactured from 1999 to 2003, the TC24D is equipped with a 3-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. Its listed operating weight is 781 kg, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
781 kg
Catalogue coverage
Variants represented
2
Richest spec table
60 rows
Recorded power
24 hp
Recorded weight
781 kg
Transmissions
9-speed gear
Production years
1999-2003
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post ROPS.Reference
Engine
Shibaura 3-cyl dieselReference
Fuel tank20.1 LReference
Engine (gross)17.9 kWReference
ShibauraReference
dieselReference
3-cylinderReference
liquid-cooledReference
Power (gross)17.9 kWReference
Rated RPM2600Reference
Starter volts12Reference
Transmission
9-speed gearReference
hydrostaticReference
TypegearReference
Gears9 forward and 3 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Gear PTO (claimed)14.5 kWReference
Hydro PTO (claimed)13.8 kWReference
Pump flow18.5 lpmReference
Steering flow29.0 lpmReference
Gear Rear PTOtransmissionReference
Hydro Rear PTOliveReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Weight781 kgReference
Front tire5x12Reference
Rear tire8x16Reference
Ag front5x12Reference
Ag front6x12Reference
Ag rear8x16Reference
Ag rear9.5x16Reference
Lawn/turf front22x9.00-12Reference
Lawn/turf rear31x13.5-15Reference
Industrial front23x8.50-12Reference
Industrial rear12x6.5Reference
Length270 cmReference
Width113 cmReference
Height (ROPS)206 cmReference
Shipping weight781 kgReference
Ground clearance27 cmReference
Front tread84 to 85 cmReference
Rear tread89 cmReference
New Holland TC24D attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
