Tractor · 2005Unverified

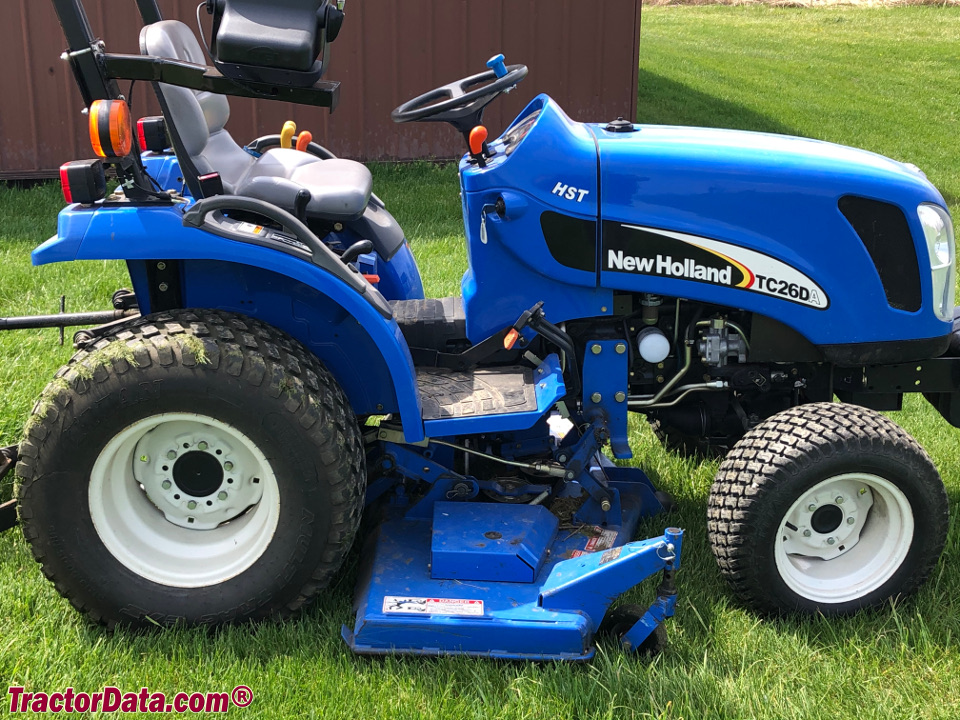

New Holland TC26DA
New Holland TC26DA — Boomer TC-A Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
725 kg
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Two-post folding ROPS.Reference
Variants
DX26similar CaseIH modelReference
Engine
Shibaura 1.1L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine (gross)19.4 kWReference
ShibauraReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.1 LReference
Bore/Stroke77 x 81 mmReference
Power (gross)19.4 kWReference
Rated RPM2850Reference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)15.3 kWReference
Typeopen centerReference
Pump flow20.4 lpmReference
Total flow31.8 lpmReference
Steering flow11.4 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)573 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase146 cmReference
Weight725 kgReference
Front tire5-12Reference
Rear tire9.5-16Reference
Weight317 kgReference
Ag front5-12Reference
Ag rear9.5-16Reference
Ag front6-12Reference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear31x13.5-15Reference
Industrial front23x8.50-12Reference
Industrial rear12-16.5Reference
Length270 cmReference
Width113 cmReference
Height (ROPS)206 cmReference
New Holland TC26DA attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
New Holland 756C Backhoe
Backhoe typeNew Holland 756C BackhoeReference
Transport height173 cmReference
2-Foot flat digging depth182 cmReference
8-Foot flat digging depth142 cmReference
Reach from pivot271 cmReference
Loading height144 cmReference
Bucket Rotation171°Reference
Swing Arc180°Reference
Bucket force1304 kgReference
Dipperstick force796 kgReference
Speeds
With 29x10.00-15 R3 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
